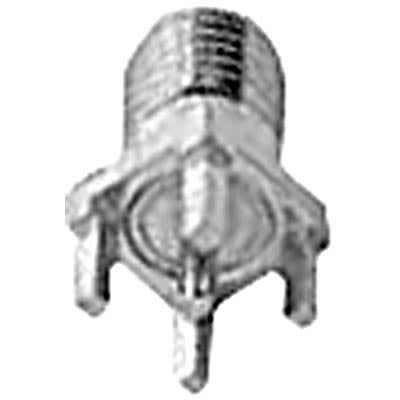

Connector rf coaxial sma str jack for p.c.board 4 legs .050 center cont 50 ohm | Amphenol RF 132134
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 132134 by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

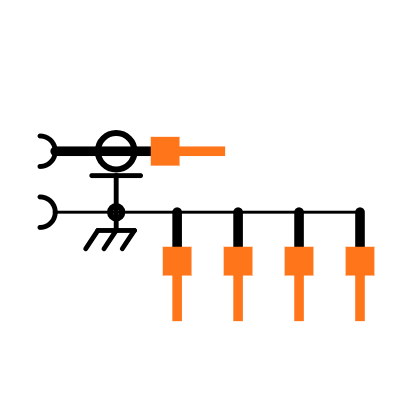

Symbol
No web preview
This Symbol is Available for

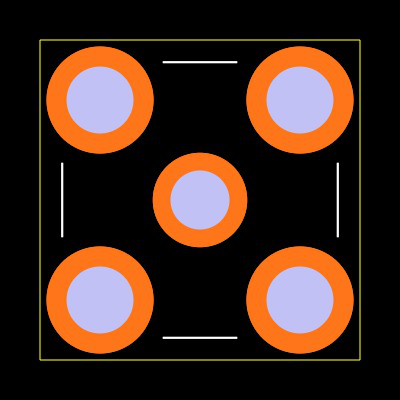

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 132134
| Part Name | 132134 |
| Manufacturer | Amphenol RF |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | SMA |
| Body Plating | Gold |
| Mounting Type | Surface Mount |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | SMA Connector |
| Minimum Operating Temperature | -65 (°C) |
| Termination Method | Solder |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Beryllium Copper |
