132289

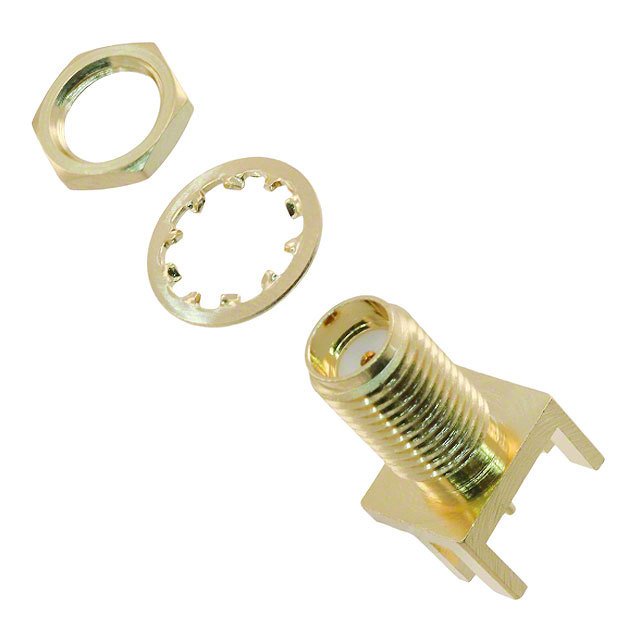

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Solder
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 132289 by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 132289
| Part Name | 132289 |
| Manufacturer | Amphenol RF |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| Polarity | Normal |
| Body Plating | Gold |
| Mating Type | Threaded |
| Mounting Type | Edge Mount |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Solder |
| Coaxial Connector Type | SMA Connector |
| Bulkhead | Yes |
| Minimum Operating Temperature | -65 (°C) |
| Contact Plating | Gold |
| Operating Frequency | 18 (GHz) |
| Impedance | 50 (Ω) |
| Size | Standard |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Beryllium Copper |
No issues have been reported for the 132289
