133017-2
Special Order: TERMINAL TERMINYL 8 HD Ring Terminal Product Type: Closed Ring Tongue Terminal Wire Size: 8 AWG Wire Size: 8.37 mm² Wire Size: 13100 – 20800 CMA Stud Size: M5 Closed Ring Tongue Terminal 8 AWG 8.37 mm² 13100 – 20800 CMA | Ring Terminal | Part Number: 133017-2 | Internal Number: 133017-2 | TE Connectivity
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 133017-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

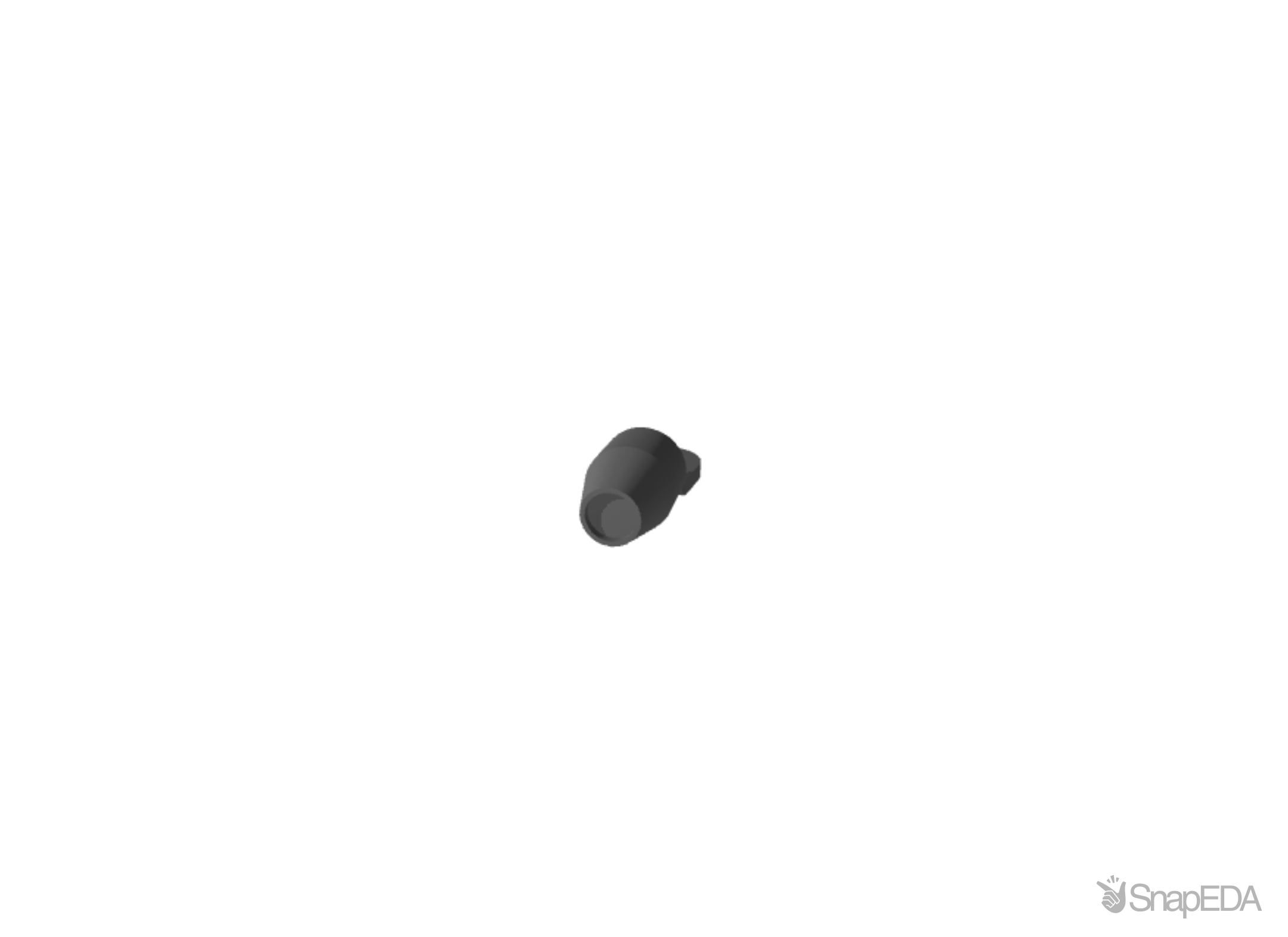

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 133017-2
| Part Name | 133017-2 |
| Manufacturer | TE Connectivity |
| Stripe Color | Red |
| Insulation Sleeve Color | Red |
| Wire Insulation Diameter (Max) | .22 |
| Wire Insulation Diameter | 5.6 |
| Support Style | Non - Insulation Support |
| Wire/Cable Type | Stranded |
| Terminal Angle | Straight |
| Insulated | No |
| Plating Material | Tin |
| TE Internal Number | 133017-2 |
| Stud Diameter | 5.26 |
| Overall Length | 31.5 |
| Sealable | No |
| Wire Insulation Support | Without |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Ring Tongue |
| Packaging Method | Box & Carton |
| Packaging Quantity | 100 |
| Terminal Orientation | Straight |
| Barrel Type | Closed Barrel |
| RoHS | True |
| Heavy Duty | No |
| Stud Size | M5 |
| Government Qualified | No |
| Tongue Thickness | .031 |
| Wire Size | 8 |
