1332197
SnapVerified

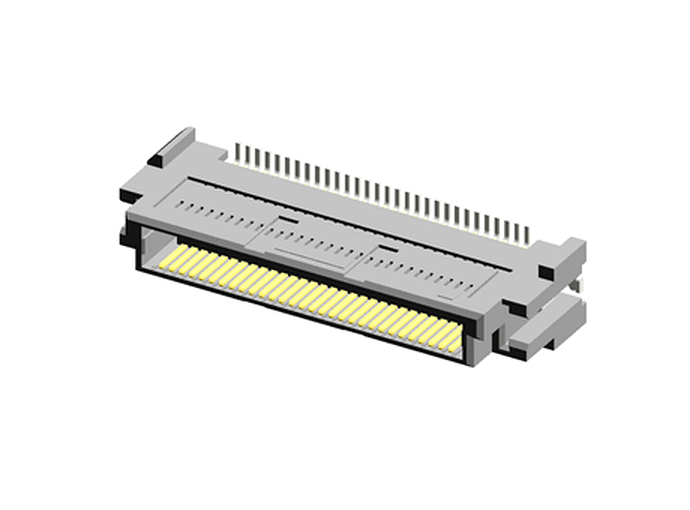

60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1332197 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

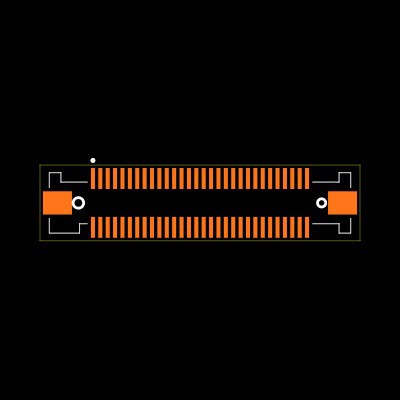

Footprint
No web preview
This Footprint is Available for

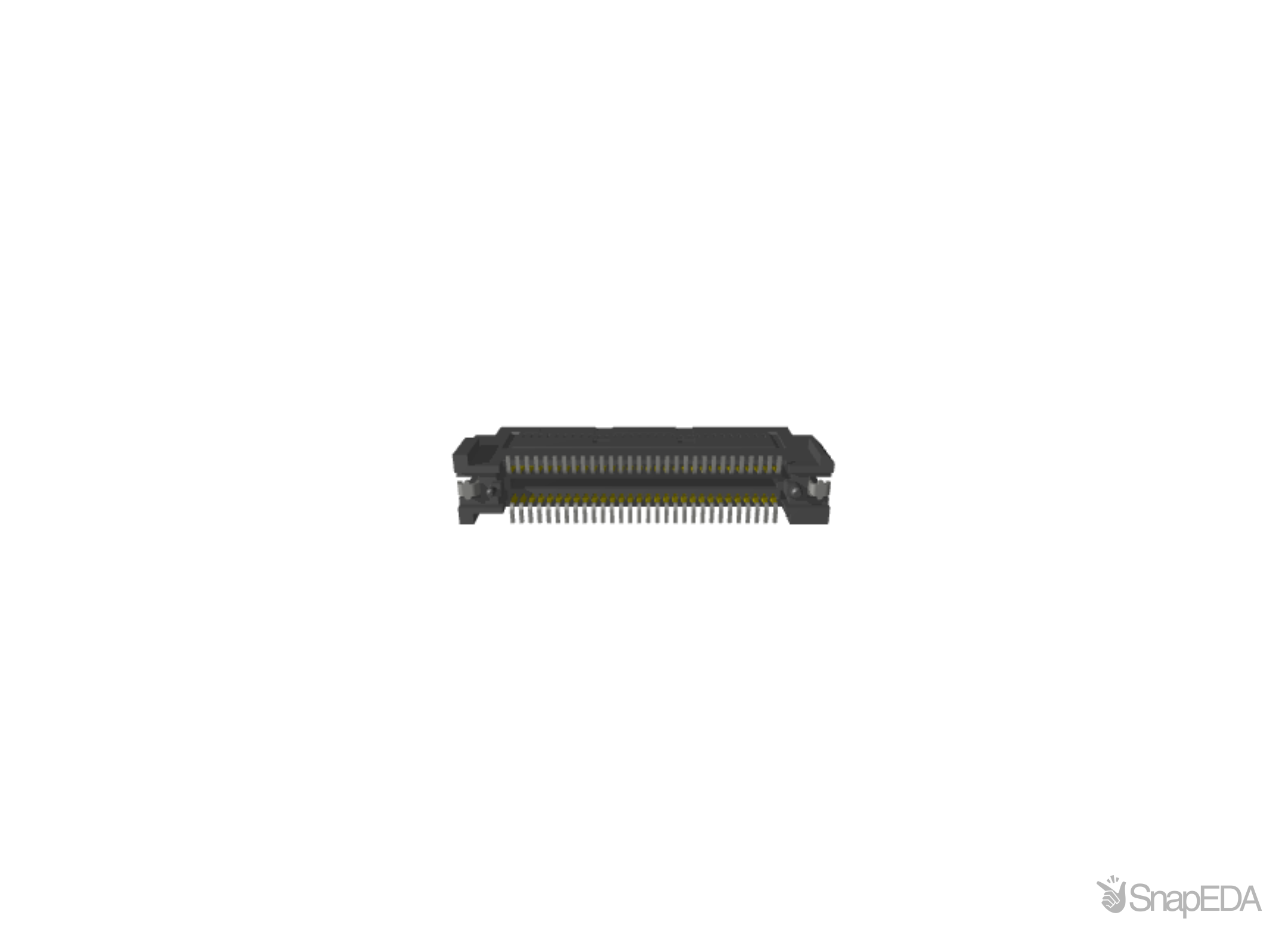

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1332197
| Part Name | 1332197 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Gold |
| Assembly Type | SMD soldering |
| Material Of Insulation | LCP |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Type Of Pcb Contacting | SMD connection |
| Product Article Number Of Manufacturer | 1332197 |
| Product Description | SMD male connectors |
| Pole Number | 60 |
| Certificate/approval | cULus Recognized |
| Height | 9.6 |
| Width | 25.92 |
| Depth | 5.2 |
| GTIN | 4063151629236 |
| Type Of Interlock | without |
| Rated Current (A) | 0.5 |
| Manufacturer Product Designation | SMD male connectors |
| Design Of Electrical Connection | SMD soldering |
| Color Of Housing | black |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1332197
If you experienced any issues with the symbol or footprint, please report it.
