1332631
SnapVerified

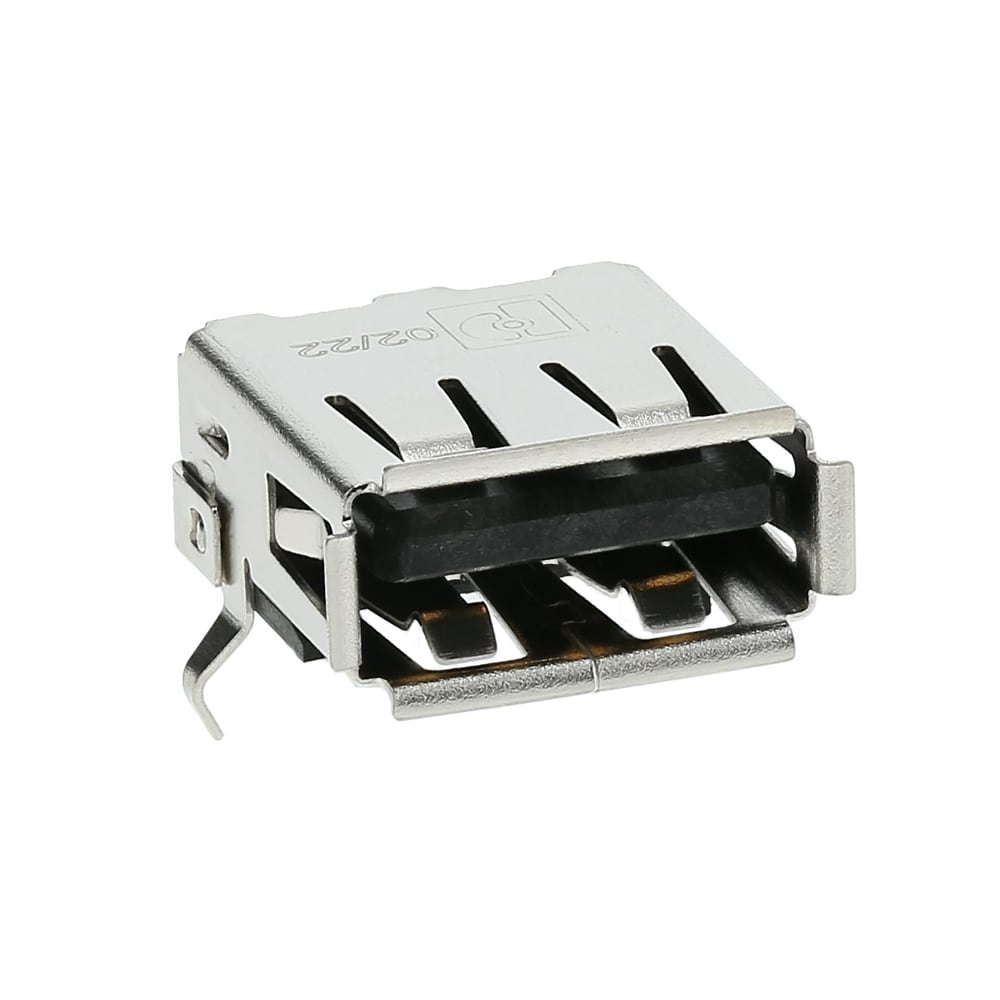

CUC-USB2.0-J1ST-AH/UAF-THT | Phoenix Contact 1332631
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1332631 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

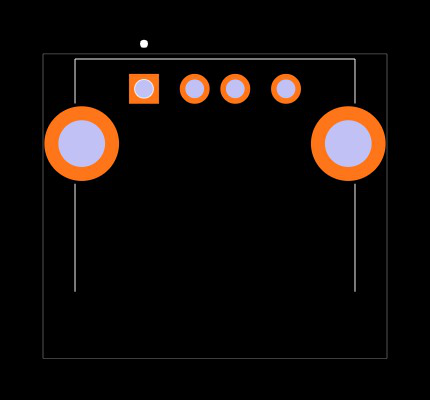

Footprint
No web preview
This Footprint is Available for

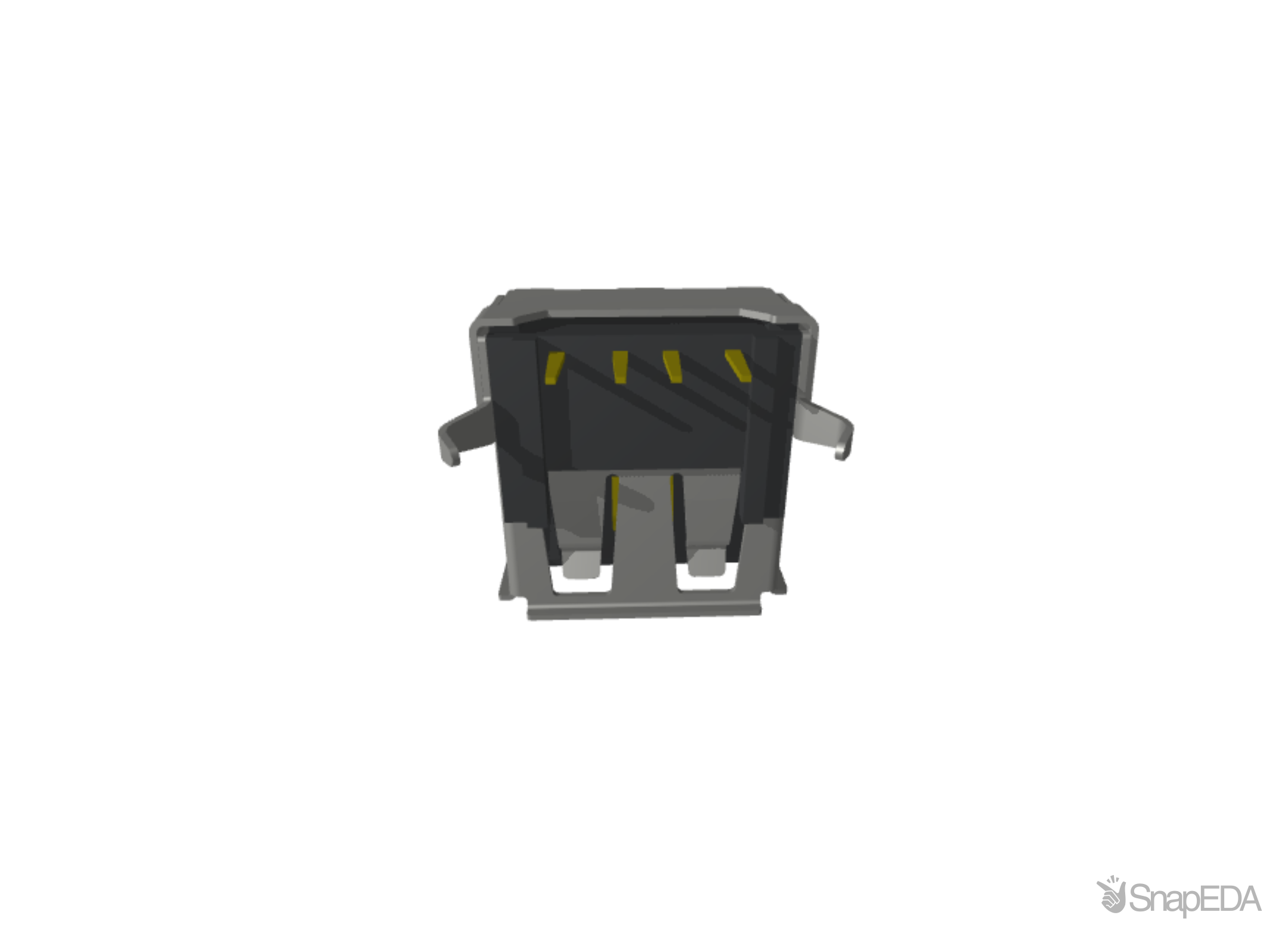

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1332631
| Part Name | 1332631 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 1.5 |
| Width | 7 |
| Direction Mating Face | Standard |
| GTIN | 4063151630225 |
| Contact Design | Socket |
| Assembly | soldering |
| Product Description | USB PCB connectors |
| Functional Width | 0 |
| Certificate/approval | not available |
| Gtin (ean) Code | 4063151630225 |
| Grid Dimensions 1 | 2 |
| Internal Article Number | 1332631 |
| Recommended Smd Solder Pad Geometry | null |
| Color Of Housing | Metal |
| Type Of Pcb Contacting | THT connection (Wave soldering) |
| Depth | 19.3 |
| Design Of Electrical Connection | Soldered connection |
| Manufacturer Product Designation | USB PCB connectors |
| RoHS | True |
| Material Of The Contact Coat | Copper alloy |
| Assembly Type | Print mounting |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | not relevant |
| Product Article Number Of Manufacturer | 1332631 |
| Pole Number | 4 |
| Height | 14.6 |
| Application Standards | not available |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1332631
