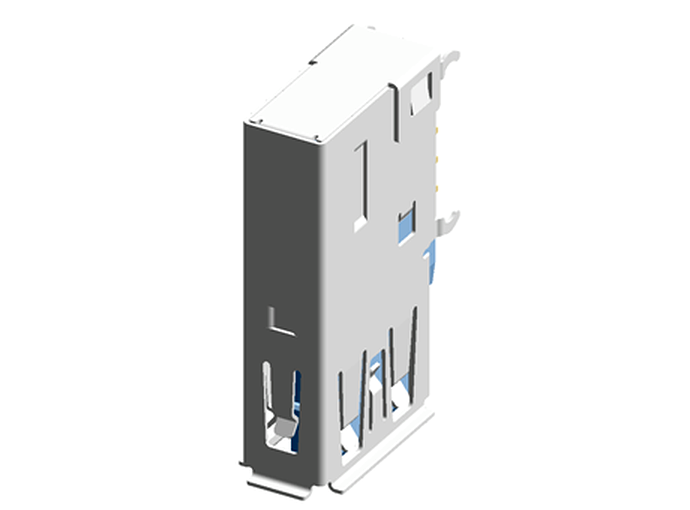

CUC-USB3.0-J1ST-AV/UAF-THT | Phoenix Contact 1332636
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1332636 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1332636
| Part Name | 1332636 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Copper alloy |
| Category | Connectors |
| Material Of Insulation | not relevant |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | soldering |
| Type Of Pcb Contacting | THT connection (Wave soldering) |
| Product Article Number Of Manufacturer | 1332636 |
| Product Description | USB PCB connectors |
| Certificate/approval | not available |
| Height | 12.5 |
| Width | 7.2 |
| Depth | 24.2 |
| GTIN | 4063151629946 |
| Rated Current (A) | 1.8 |
| Manufacturer Product Designation | USB PCB connectors |
| Design Of Electrical Connection | Soldered connection |
| Application Standards | not available |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
