1363336
SnapVerified

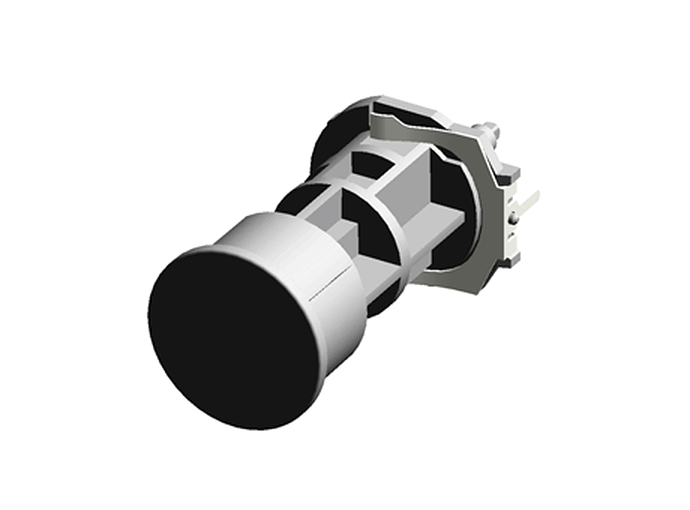

Jack Modular Connector 2P2C Single Pair Ethernet (SPE) Vertical Unshielded CatB
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1363336 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

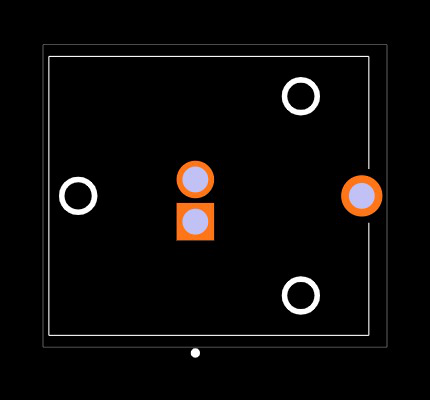

Footprint
No web preview
This Footprint is Available for

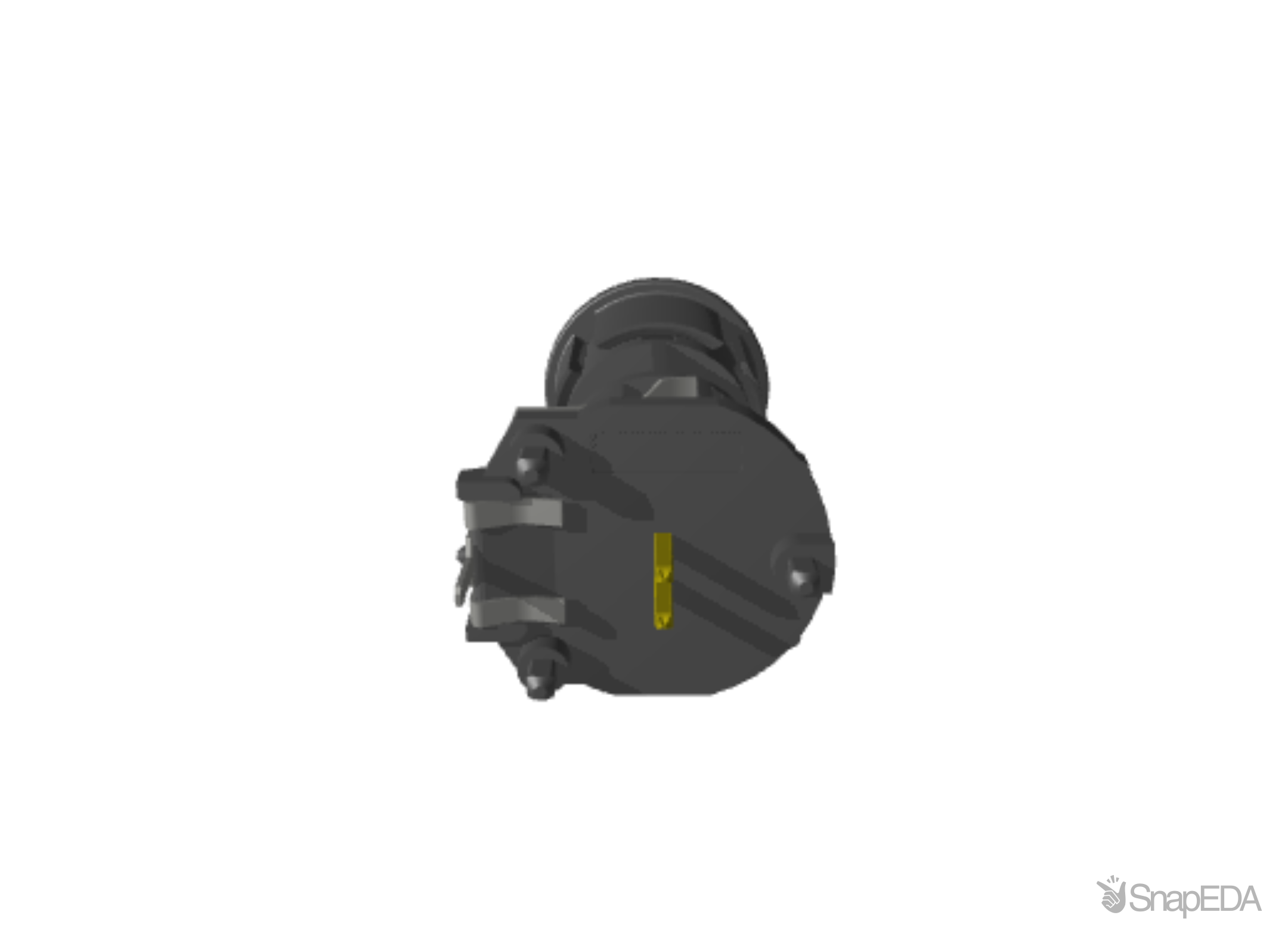

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1363336
| Part Name | 1363336 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Cu alloy |
| Assembly Type | Print mounting |
| Material Of Insulation | not relevant |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | soldering |
| Product Article Number Of Manufacturer | 1363336 |
| Type Of Pcb Contacting | THR connection |
| Product Description | SPE PCB connector |
| Pole Number | 2 |
| Certificate/approval | not available |
| Height | 23.8 |
| Width | 12.4 |
| Depth | 13.7 |
| Gtin (ean) Code | 4063151708221 |
| GTIN | 4063151708221 |
| Rated Current (A) | 4 |
| Manufacturer Product Designation | SPE PCB connector |
| Internal Article Number | 1363336 |
| Application Standards | not available |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1363336 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
|
Visit Site | |
| Sager |
|
1 x $6
|
Visit Site | |
| TTI Americas |
80
|
80 x $6
|
Visit Site |
No issues have been reported for the 1363336
