1393366-1
GET .64 PCB Connector Contact Female Crimp Tin Plating 18 - 20 AWG | TE Connectivity 1393366-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1393366-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

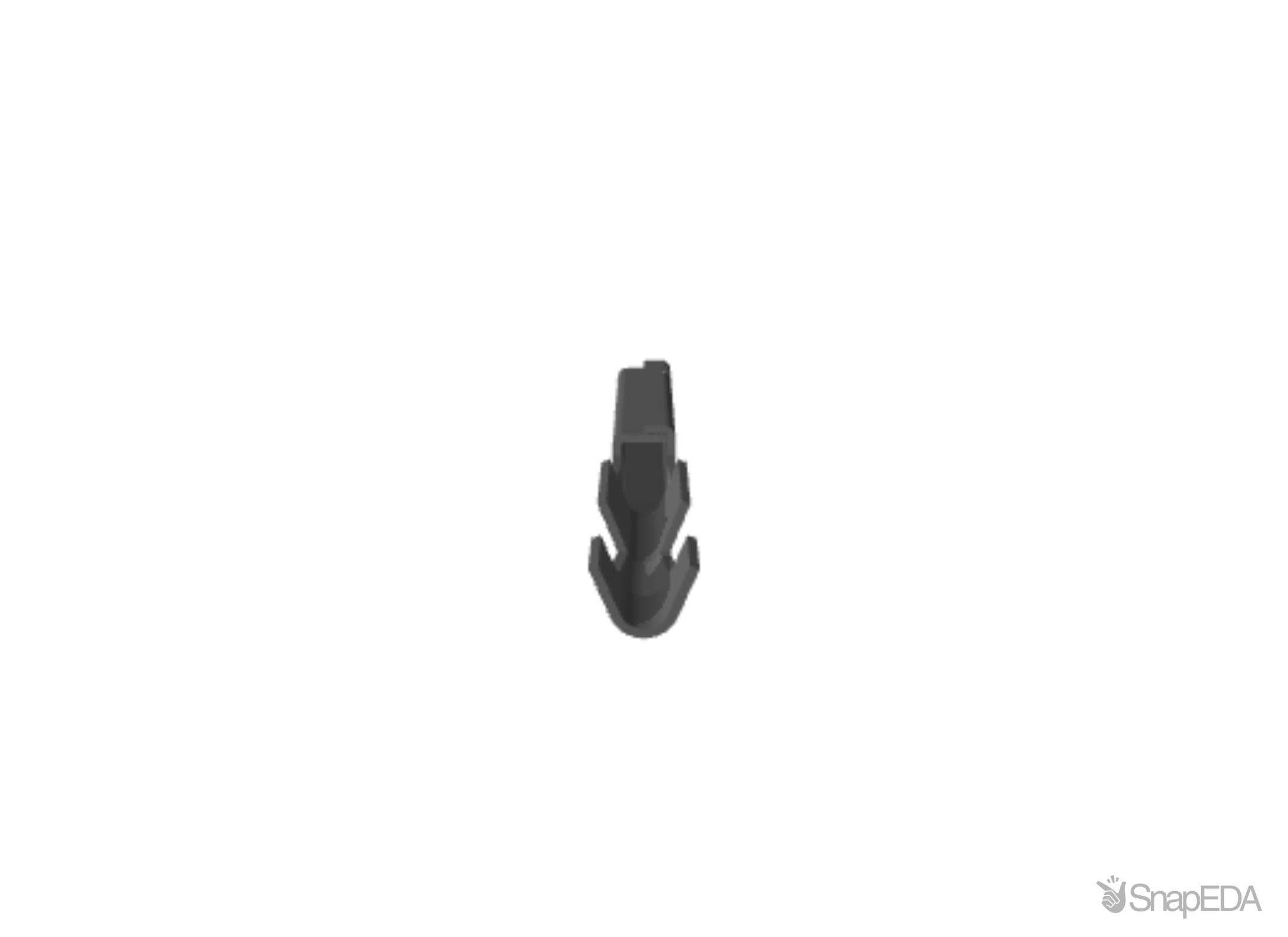

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1393366-1
| Part Name | 1393366-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Sealable | No |
| Wire Type | Copper |
| Operating Temperature Range | -40 – 125 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Reel |
| Mating Tab Thickness | .64 |
| Wire Insulation Diameter | 1.6 – 1.9 |
| TE Internal Number | 1393366-1 |
| Wire Size Search | 19 |
| Crimp Type | F-Crimp |
| Interface Plating | Tin (Sn) |
| Contact Termination Area Plating Material | Tin (Sn) |
| Terminal Transmits | 0 – 24 A (Low Power) |
| Primary Locking Feature | Clean Body |
| Packaging Quantity | 10000 |
| Termination Method | Crimp |
| Receptacle Style | 180° |
| Wire Size | .5 – .75 |
| Typical Current Rating (A) | 11 |
| Mating Tab Width | .039 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.5 (mm²) |
| Maximum Wire Size Mm | 0.75 (mm²) |
| Minimum Operating Temperature | -40 (°C) |
| Series | GET .64 |
| Minimum Wire Size Awg | 19 (AWG) |
| Gender | Female |
| Contact Plating | Tin |
| Termination Method | Crimp |
| For Use With | GET .64 Connector Housing |
| Maximum Wire Size Awg | 18 (AWG) |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Copper Alloy |
