1393481-6
Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Box
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1393481-6 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

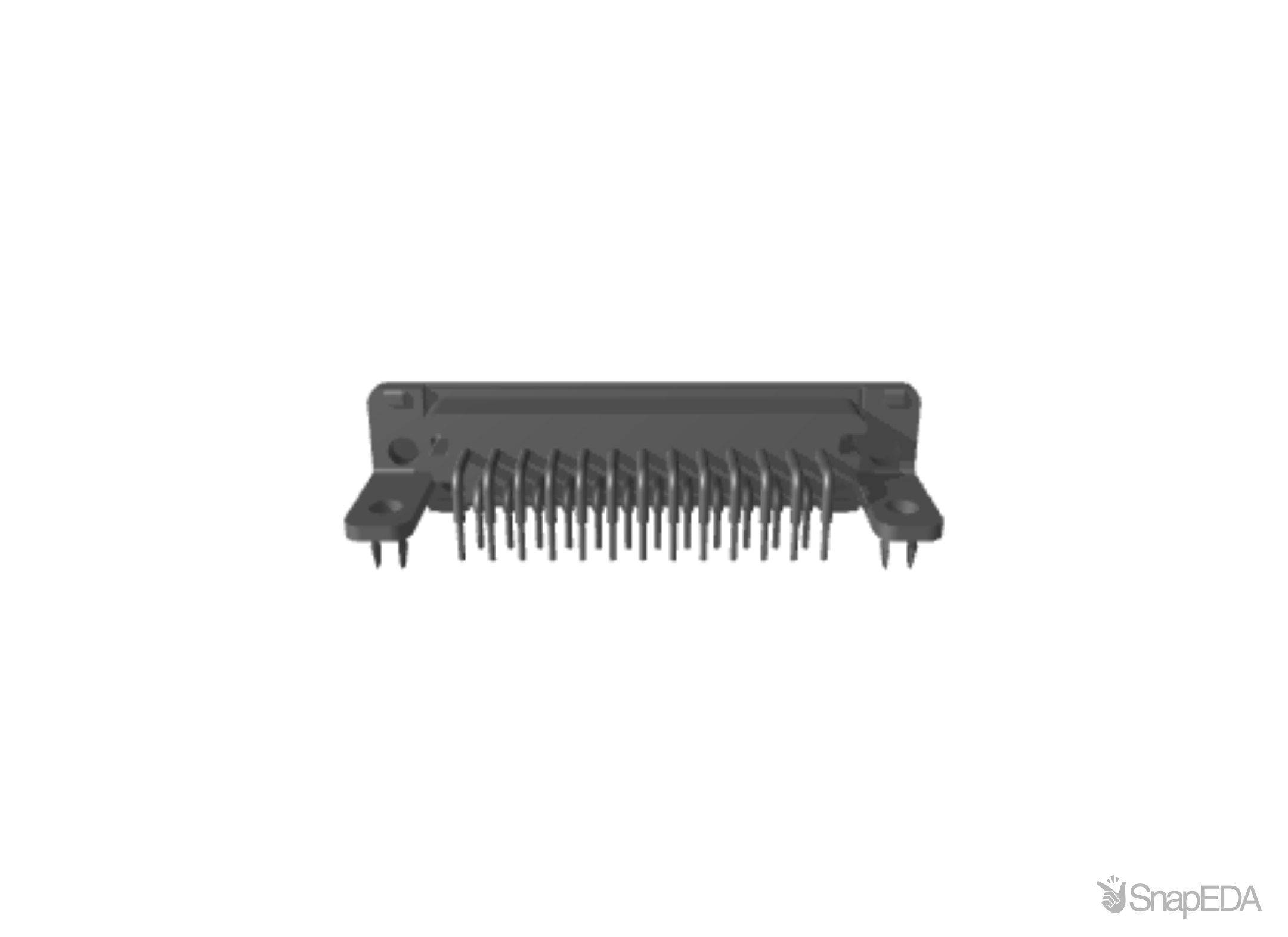

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1393481-6
| Part Name | 1393481-6 |
| Manufacturer | TE Connectivity / AMP |
| Shell Plating Material | Tin |
| Centerline (Pitch) | 2.74 |
| Shell Material | Steel |
| Plastic | No |
| Housing Material | PBTP GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Shell Size | 3 |
| Connector Style | Plug |
| Mating Connector Lock Type | Female Screwlocks, 4-40 UNC |
| Number of Positions | 25 |
| PCB Mount Retention Type | Boardlock |
| Profile | Eurostyle |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.57 |
| TE Internal Number | 1393481-6 |
| PCB Mount Orientation | Right Angle |
| PCB Mount Alignment | With |
| Grounding Straps | With |
| Housing Color | Black |
| Footprint | .371 |
| Contact Base Material | Phosphor Bronze |
| Boardlock Plating Material | Tin |
| Mating Retention | With |
| Approved Standards | DIN 41652 |
| Mounting Hole Diameter | 3.1 |
| Packaging Method | Box |
| Boardlock Material | Brass |
| Packaging Quantity | 50 |
| Grounding Indents | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| PCB Mounting Style | Through Hole |
| Installation Height | 3.6 |
| Sealable | No |
| Termination Post Length | .1259 |
| Shell Type | Full Metal Shell |
| Post Size | .026 |
| Grounding Clips | Without |
| Panel Mount Feature | Without |
| Color | Gray |
| Contact Mating Area Plating Thickness | 30 |
| Product Type | Connector |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Tin |
| Performance Level | Level 2 |
| Preloaded | Yes |
| Mating Connector Lock | With |
| Mating Retention Type | Threaded Insert |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
