1408393-1

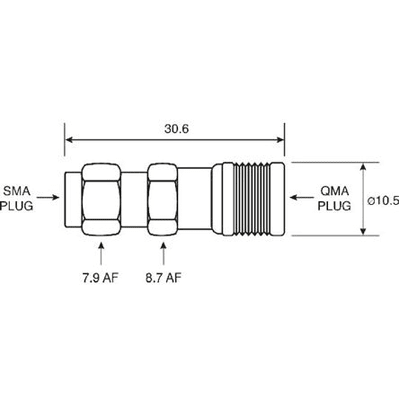

Straight 50Ohms RF Adapter QMA Plug to SMA Plug 0 - 6GHz | TE Connectivity 1408393-1
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1408393-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1408393-1
| Part Name | 1408393-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Gasket Material | Silicone Rubber |
| Circuit Application | Power & Signal |
| Side B Gender | Plug |
| Side B Interface | SMA |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE |
| Number of Positions | 1 |
| Material | Brass |
| TE Internal Number | 1408393-1 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Wire |
| Body Plating Material | Nickel |
| Body Style | Straight |
| Sealable | No |
| Connector Mounting Type | Bulkhead |
| Side A Interface | QMA |
| Operating Temperature Range | -40 – 80 |
| Body Material | Brass |
| Coupling Nut Material | Brass |
| Impedance | 50 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Side A Gender | Plug |
| RF Connector Center Contact Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Nickel |
| Body Orientation | Straight |
| Gender B | Male |
| Gender A | Male |
| Adapter Type A | QMA |
| Length | 30.6 (mm) |
| Contact Plating | Gold |
| Operating Frequency | 6 (GHz) |
| Impedance | 50 (Ω) |
| Adapter Type B | SMA |
| Contact Material | Beryllium Copper |
