1410187-3
MULTIGIG RT T2 DC, MULTIGIG RT T2 7RW DC DF CT | TE Connectivity 1410187-3
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1410187-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

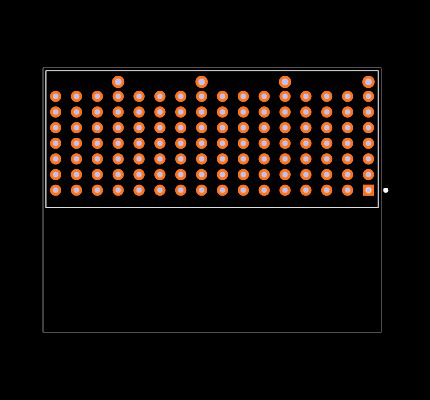

Footprint
No web preview
This Footprint is Available for

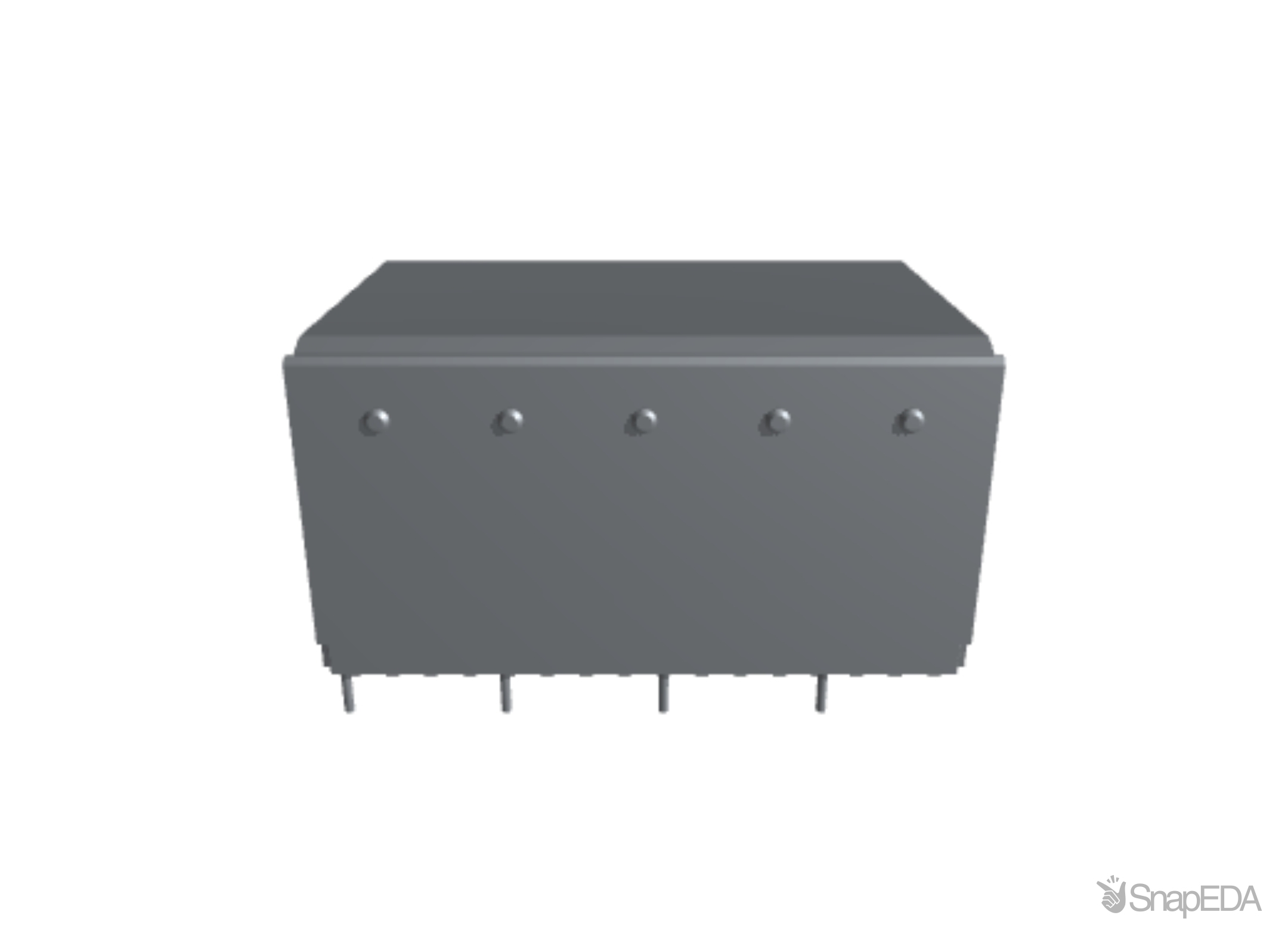

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1410187-3
| Part Name | 1410187-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .071 |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Number of Positions | 112 |
| TE Internal Number | 1410187-3 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Number of Rows | 7 |
| Board-to-Board Configuration | Right Angle |
| Connector Mounting Type | Board Mount |
| Number of Columns | 16 |
| Operating Temperature Range | -67 – 221 |
| Mating Alignment | With |
| RoHS | In Transition |
| Card Slot Centerline | 20.3 |
| Shrouded | Fully Shrouded |
| Row-to-Row Spacing | .053 |
| Contact Current Rating (Max) (A) | 1 |
| Guide Location | Center |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Columns | 16 |
| Series | MULTIGIG RT 2 |
| Mounting Type | Through Hole |
| Gender | Male |
| Body Orientation | Right Angle |
| Pitch | 1.8 (mm) |
| Housing Material | Liquid Crystal Polymer |
| Number Of Rows | 7 |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Number Of Contacts | 112 |
| Backplane Connector Type | VITA 46 Centre |
