1419126-5
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1419126-5 by TE Connectivity Potter & Brumfield Relays and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

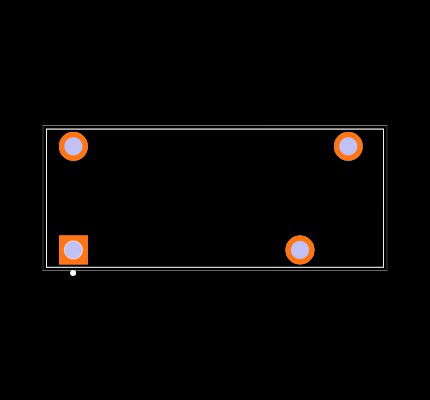

Footprint
No web preview
This Footprint is Available for

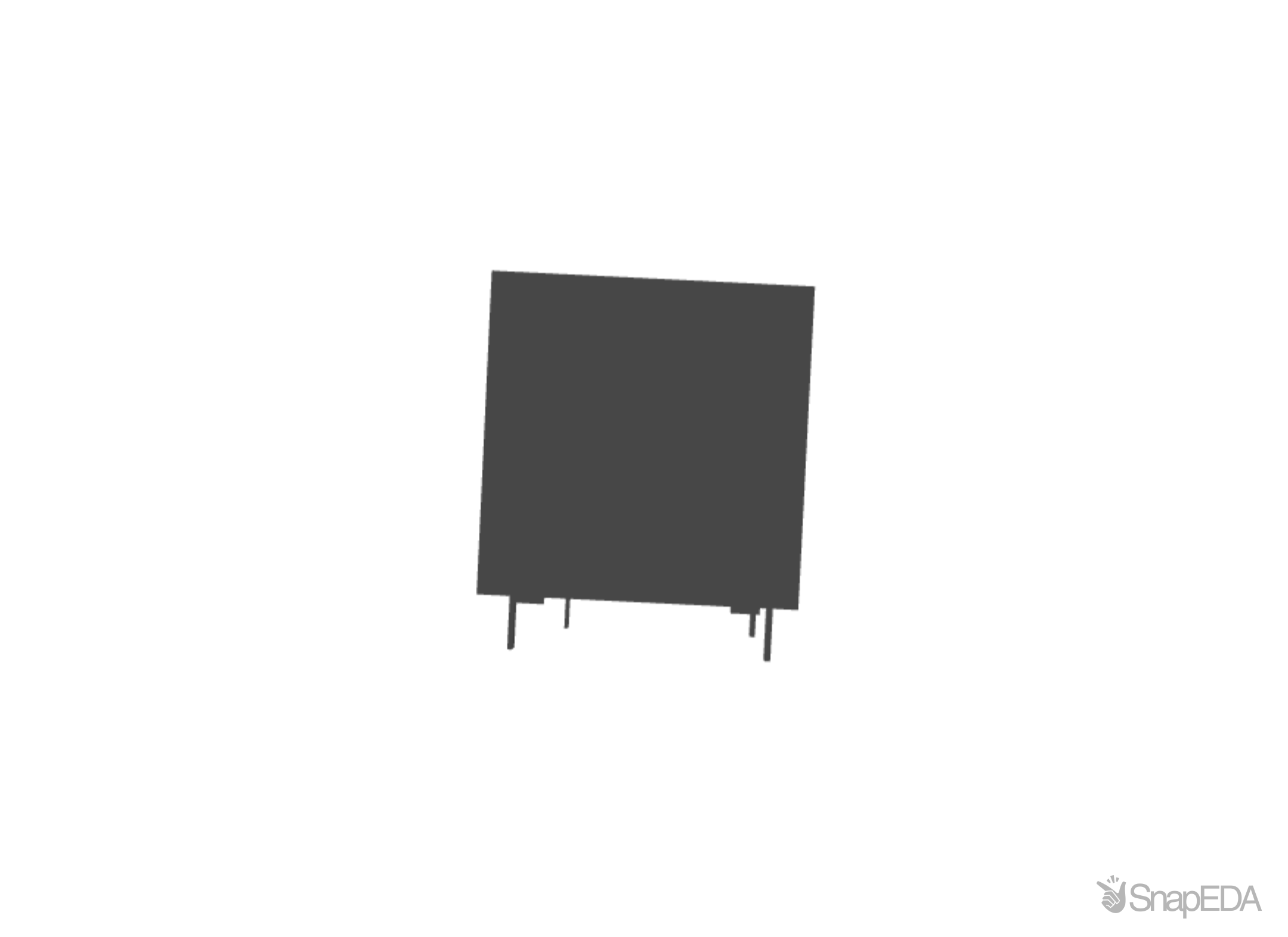

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1419126-5
| Part Name | 1419126-5 |
| Manufacturer | TE Connectivity |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | 11 |
| Coil Special Features | UL Coil Insulation Class E |
| Contact Limiting Making Current (A) | 10 |
| Height Class (Mechanical) | 20 – 25 |
| Insulation Creepage Between Contact & Coil | .126 |
| Product Width | 10 |
| Contact Material | AgNi90/10 |
| Coil Power Rating DC | 540 |
| Contact Limiting Continuous Current (A) | 10 |
| Contact Switching Voltage (Max) (V) | 30 |
| Coil Resistance | 267 |
| Contact Current Class (A) | 16 |
| Contact Arrangement | 1 Form A (NO) |
| Contact Number of Poles | 1 |
| Insulation Clearance Between Contact & Coil | 1.6 |
| TE Internal Number | 1419126-5 |
| Product Height | .984 |
| Insulation Initial Dielectric Between Coil & Contact Class | 3500 – 4000 |
| Width Class (Mechanical) | 8 – 10 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 24 |
| Insulation Clearance Class | 0 – 2.5 |
| Coil Voltage Rating (V) | 12 |
| Packaging Method | Box & Tray |
| Environmental Ambient Temperature (Max) | 158 |
| Contact Switching Load (Min) | 100mA @ 5V |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| Environmental Ambient Temperature Class | 50 – 70 |
| Length Class (Mechanical) | 20 – 25 |
| Contact Limiting Short-Time Current (A) | 10 |
| Contact Limiting Breaking Current (A) | 10 |
| Coil Power Rating Class | 500 – 600 |
| Contact Current Rating (Max) (A) | 10 |
| Contact Voltage Rating (V) | 30 |
| Environmental Category of Protection | RTII |
| Insulation Initial Dielectric Between Open Contacts | 900 |
| Insulation Creepage Class | 3 – 5.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
