1437565-5
Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 24VDC 1.57N Thru-Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1437565-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

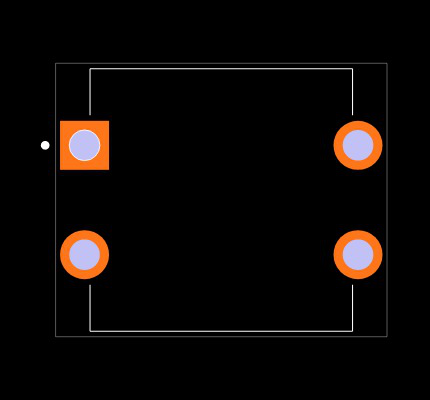

Footprint
No web preview
This Footprint is Available for

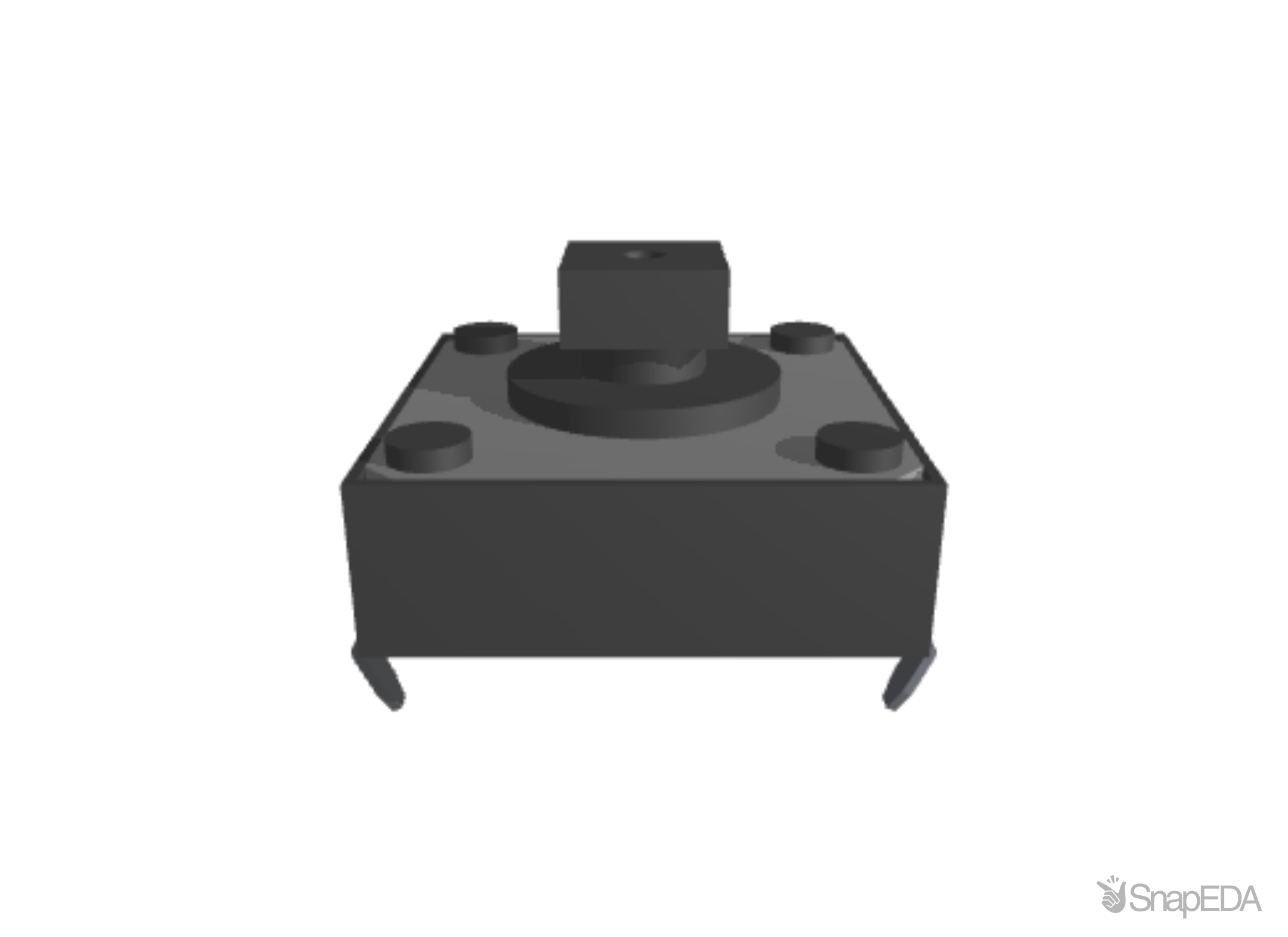

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1437565-5
| Part Name | 1437565-5 |
| Manufacturer | TE Connectivity |
| Ganged | With |
| Operating Function | NO |
| Low Profile | With |
| Temperature Rating | Standard |
| Button Width | .15 |
| Actuator Color | Black |
| Actuator Profile | Extended |
| Actuator Style | Square |
| Actuator Length | .134 |
| Illuminated | No |
| Contact Current Rating (A) | 50 |
| TE Internal Number | 1437565-5 |
| Snap Action | Without |
| Case Material | Polyamide |
| Dust Proof | No |
| Leg Style | Kinked |
| Product Type | Switch |
| Support Bracket | Without |
| Switch Height | .287 |
| Case Color | Black |
| Packaging Method | Loose Piece |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Process Sealed | No |
| Switch Contact Plating Material | Silver |
| RoHS | True |
| Mounting Angle | Vertical |
| Contact Base Material | Brass |
| Mounting Type | Through Hole |
| Actuator Force | 160 |
| Tactile Feel | With |
| Cover Material | PET Film |
| Number of Actuators | 1 |
| Termination Type | Printed Circuit Board |
| Bushing Style | Unthreaded |
| Tactile | Yes |
| Actuator Material | Polyester |
| ESD Grounding Terminal | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1437565-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Farnell UK |
280
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
280
|
|
Visit Site | |
| Onlinecomponents |
798
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
740
|
|
Visit Site | |
| TTI Americas |
3
|
|
Visit Site | |
| Verical |
740
|
223 x $0.35
|
Visit Site | |
| element14 Singapore |
280
|
|
Visit Site |
No issues have been reported for the 1437565-5
If you experienced any issues with the symbol or footprint, please report it.
