1437654-1

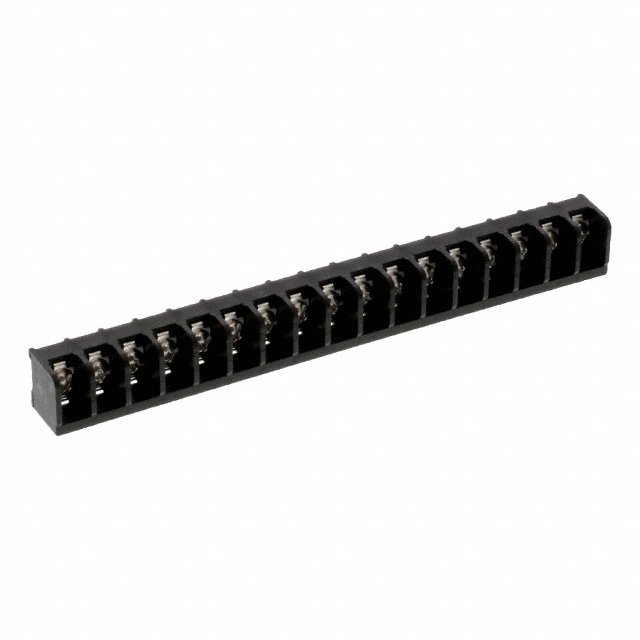

Conn Terminal Block 17 POS 9.52mm Solder ST Thru-Hole Package
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1437654-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1437654-1
| Part Name | 1437654-1 |
| Manufacturer | TE Connectivity |
| Bottom Termination Style | Printed Circuit Pin |
| Centerline (Pitch) | .375 |
| Top Hardware | Binding Combo Head |
| Housing Material | Thermoplastic |
| Screw Plating Material | Zinc Chromate |
| Mounting Insert | Without |
| Screw Size | 6-32 |
| Current Rating (A) | 25 |
| Number of Positions | 17 |
| Current Rating (Max) (A) | 25 |
| Block Style | Open Bottom with Standoffs |
| TE Internal Number | 1437654-1 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Rows | 1 |
| Product Type | Barrier Strip |
| Terminal Material | Copper Alloy |
| Packaging Method | Package |
| Packaging Quantity | 60 |
| Length | 163.47 |
| RoHS | True |
| Terminal Plating Finish | Bright |
| Mounting Angle | Vertical |
| Number of Levels | 1 |
| Color | Black |
| Mounting Ears | Without |
| Mounting Options | None |
| UL Flammability Rating | UL 94V-0 |
| Screw Material | Steel |
| Barrier Strip Style | Tri-Barrier |
| Voltage (V) | 300 |
| Terminal Plating Material | Tin |
| Wire Size | 22 – 12 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
