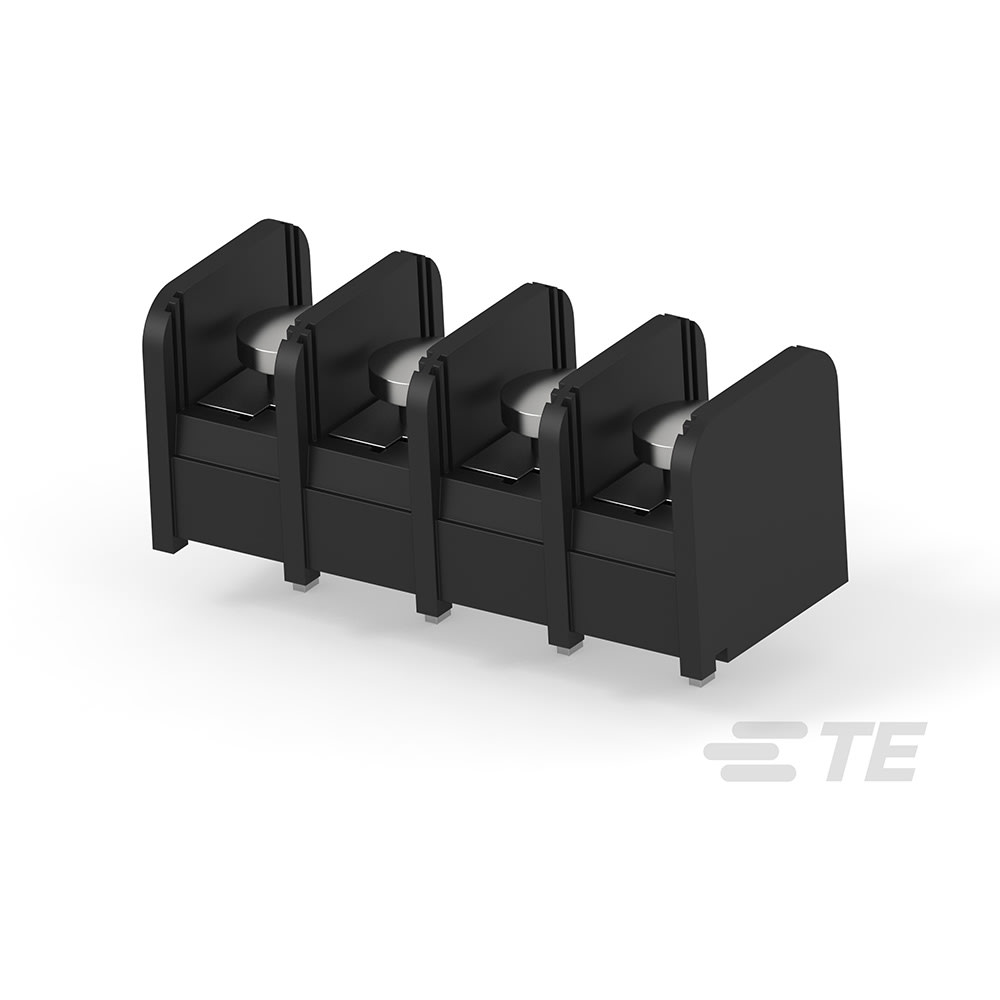

1437664-6
Buchanan,Conn,Term Strip,Barrier,4Pole,9.53mmPitch,SnglRow,22-12,NC6,20A,300V | TE Connectivity 1437664-6
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1437664-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1437664-6
| Part Name | 1437664-6 |
| Manufacturer | TE Connectivity |
| Bottom Termination Style | Printed Circuit Pin |
| Category | Connectors |
| Mounting Bushing | With |
| Centerline (Pitch) | 9.53 |
| Top Hardware | Binding Combo Head |
| Housing Material | Polyamide |
| Screw Plating Material | Zinc |
| Barrier Strip Style | Dual Barrier |
| Screw Size | 6-32 |
| Screw Head Type | Combo Phil-Slot |
| Number of Positions | 4 |
| Profile | Low |
| Current Rating (Max) (A) | 20 |
| Block Style | Flat |
| TE Internal Number | 1437664-6 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Rows | 1 |
| Product Type | Barrier Strip |
| Quick Connect Blade Style | 90°, One Sided |
| Operating Temperature Range | -40 – 221 |
| Terminal Material | Copper Alloy |
| Packaging Method | Package |
| Packaging Quantity | 200 |
| Length | 39.6 |
| RoHS | True |
| Mounting Angle | Vertical |
| Number of Levels | 1 |
| Color | Black |
| Mounting Ears | Without |
| Current Rating (A) | 20 |
| Mounting Options | None |
| UL Flammability Rating | UL 94V-0 |
| Screw Material | Steel |
| Mounting Insert | Without |
| Voltage (V) | 300 |
| Terminal Plating Material | Tin |
| Wire Size | 22 – 12 |
