1438129-2
GET 0.64 mm (Global Electronic Technology) Connector System
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1438129-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

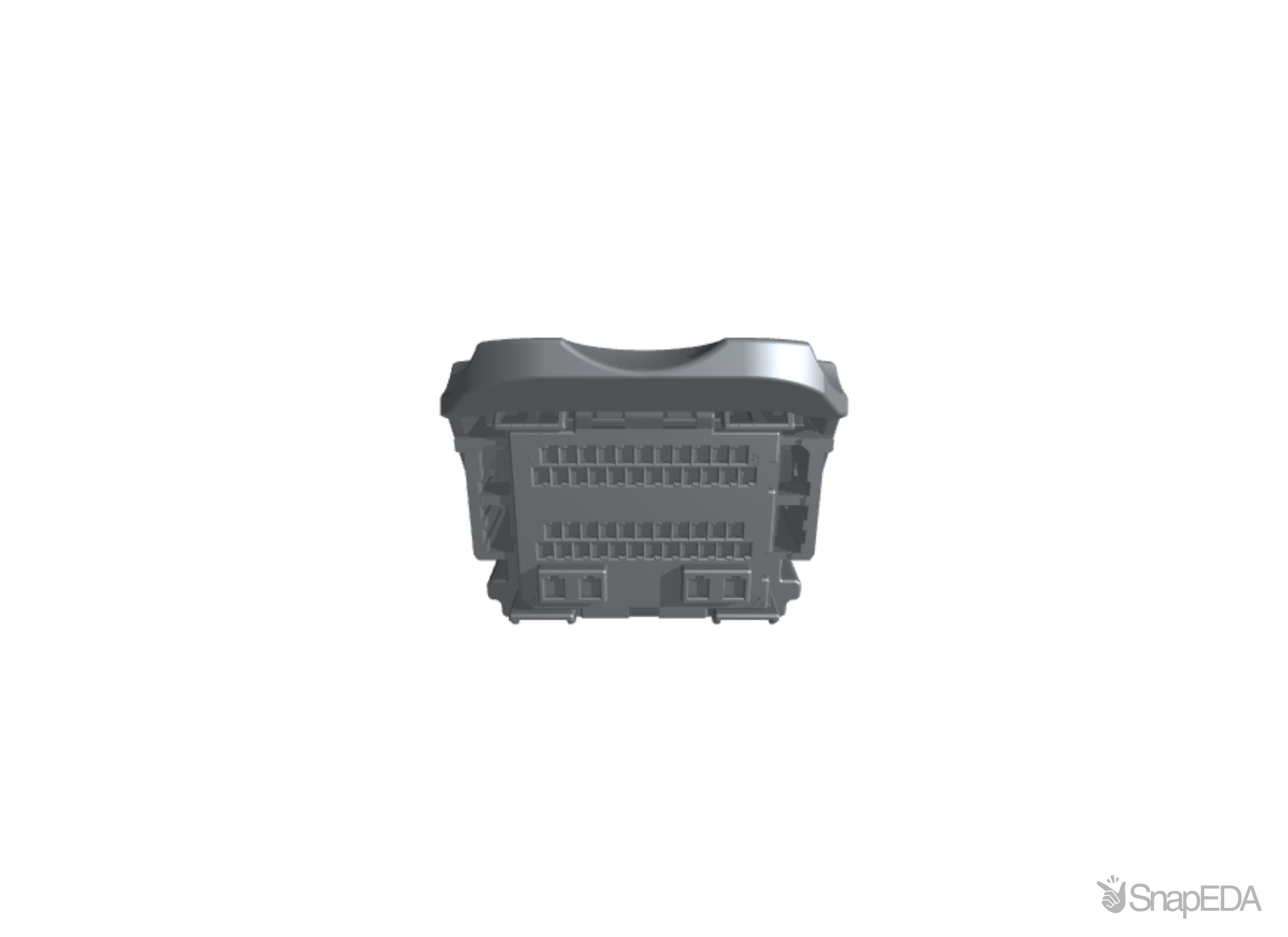

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1438129-2
| Part Name | 1438129-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 5.08 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 2.079 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 50 |
| Hybrid Connector | Yes |
| TE Internal Number | 1438129-2 |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Sealable | Yes |
| Terminal Position Assurance | Yes |
| Polarized | Yes |
| Operating Temperature Range | -40 – 257 |
| Degree of Protection | IP67 |
| Packaging Method | Package |
| Serviceable | Yes |
| Length | 40.8 |
| Cable Exit Angle | 180° |
| Packaging Quantity | 40 |
| RoHS | True |
| Mating Tab Width | .64 |
| Strain Relief | Add By Accessory |
| Color | Black |
| Body Material | PA GF |
| Height | 46.5 |
| Row-to-Row Spacing | 6.85 |
| Primary Locking Feature | Integrated in Housing |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
