1438759-1
22WAY HYBRID .040/2.8 PLUG ASSY KEY 'B' | TE Connectivity 1438759-1
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1438759-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

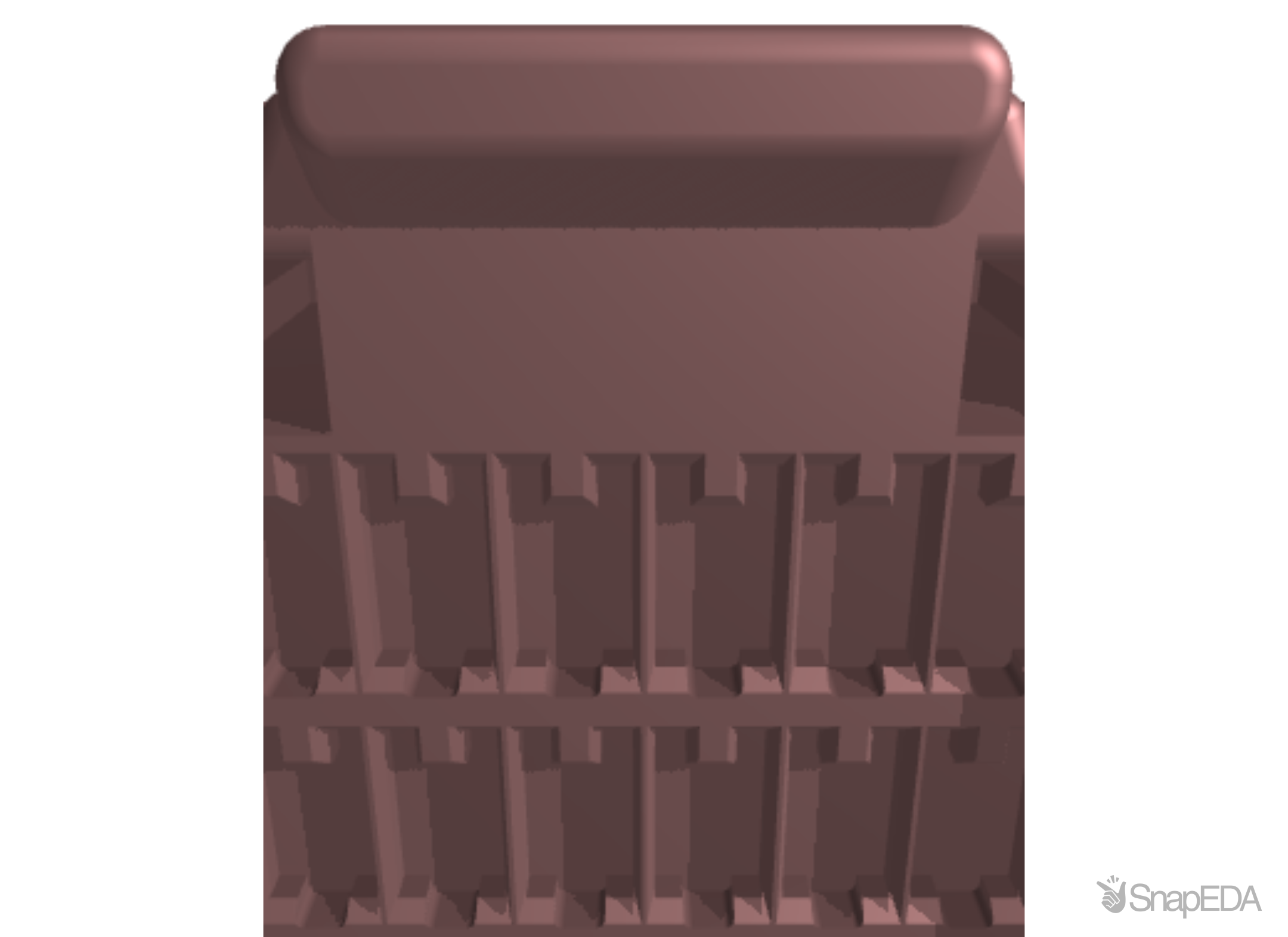

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1438759-1
| Part Name | 1438759-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 2.5 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 19.75 |
| Connector Position Assurance Capable | No |
| Number of Positions | 22 |
| Operating Temperature Range | -22 – 221 |
| TE Internal Number | 1438759-1 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Strain Relief | No |
| Terminal Position Assurance | No |
| Polarized | No |
| Hybrid Connector | Yes |
| Packaging Method | Package |
| Packaging Quantity | 45 |
| Body Material | PBT |
| RoHS | True |
| Mating Tab Width | 1 |
| Sealable | No |
| Color | White |
| Length | 38 |
| Height | 1.006 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1438759-1
