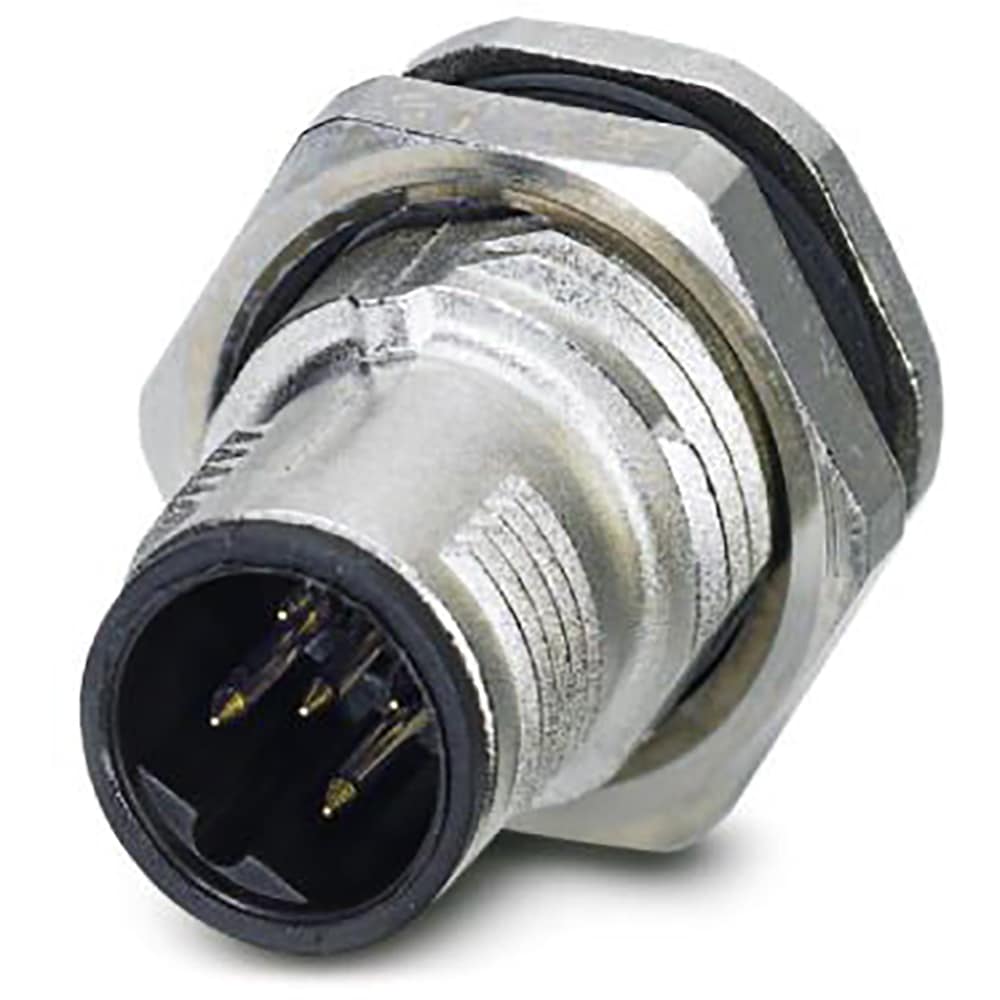

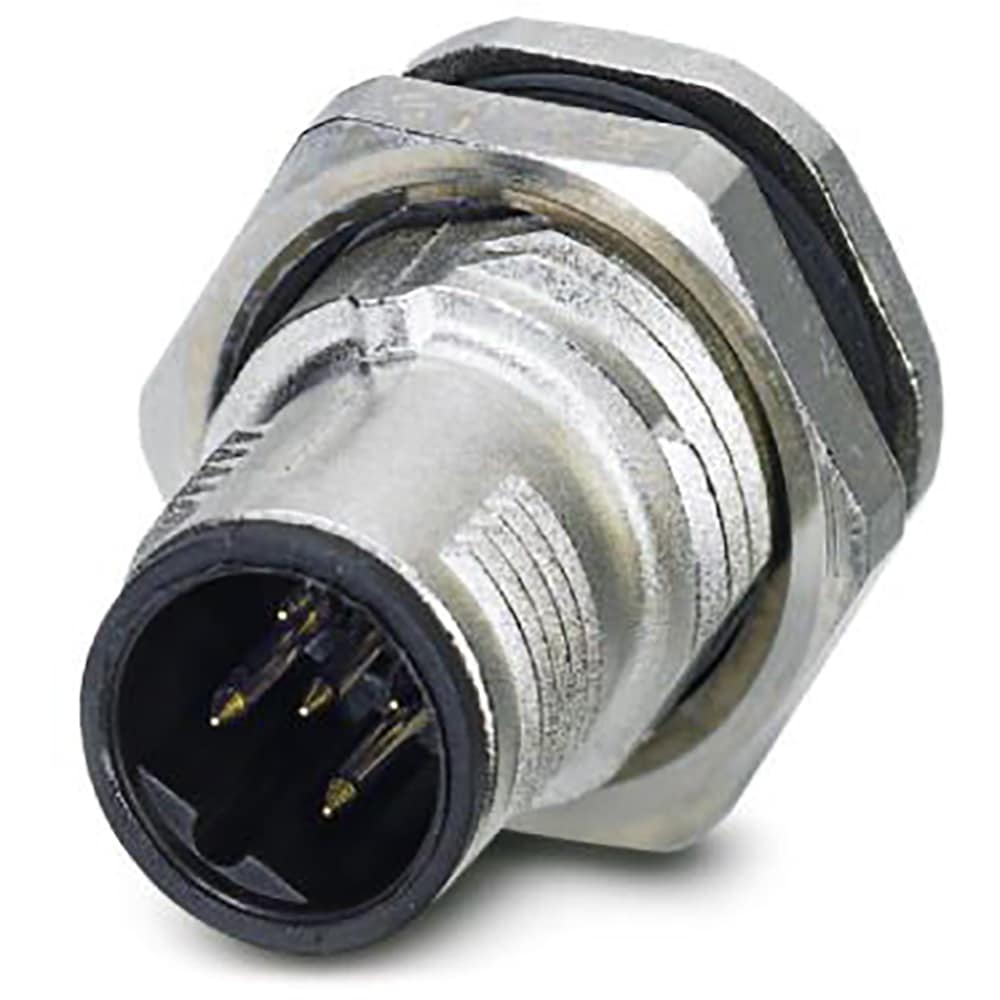

Circular connector;Plug;Male Pins;5 pos;4A;60V;M12-5 | Phoenix Contact 1441781
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1441781 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

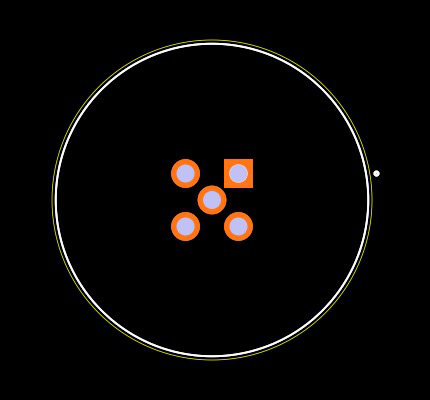

Footprint
No web preview
This Footprint is Available for

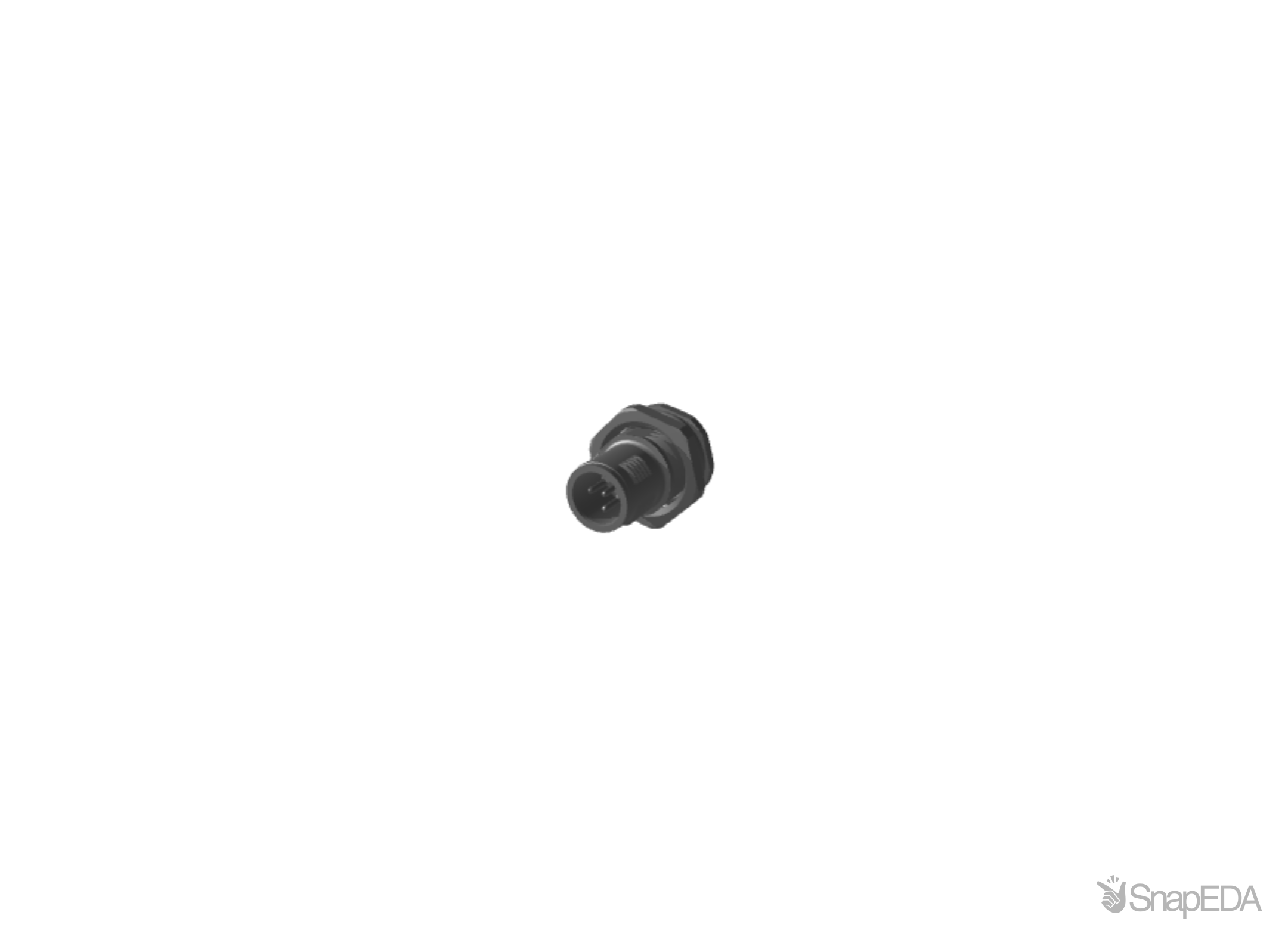

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1441781
| Part Name | 1441781 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 4 |
| Shield Connection Present | False |
| Max. Operating Temperature | 85 |
| Type Of Plug-in Contact, Outside | Male (plug) |
| Min. Operating Temperature | -25 |
| Coding (head 1) | B-coded |
| Product Description | Device connector rear mounting |
| Material Of Housing | Zink print cast |
| Gtin (ean) Code | 4046356533980 |
| Internal Article Number | 1441781 |
| Degree Of Soiling | 3 |
| Insertion Cycles, Min. | 100 |
| Manufacturer Product Designation | Device connector rear mounting |
| RoHS | True |
| Material Of The Contact Coat | Gold |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1441781 |
| Pole Number | 5 |
| Construction Form Of The Plug Connector | M12 |
| Max. Ambient Temperature | 85 |
| GTIN | 4046356533980 |
| Screw-in Thread | M12 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Ip Rating | IP67 |
| Series | SACC |
| Coding | B |
| Contact Gender | Male |
| Number Of Contacts | 5 |
| Connector Size | M12 |
No issues have been reported for the 1441781
