1445526-1
Conn Circular F 1 POS ST Cable Mount 1 Terminal 1 Port Bag
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1445526-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

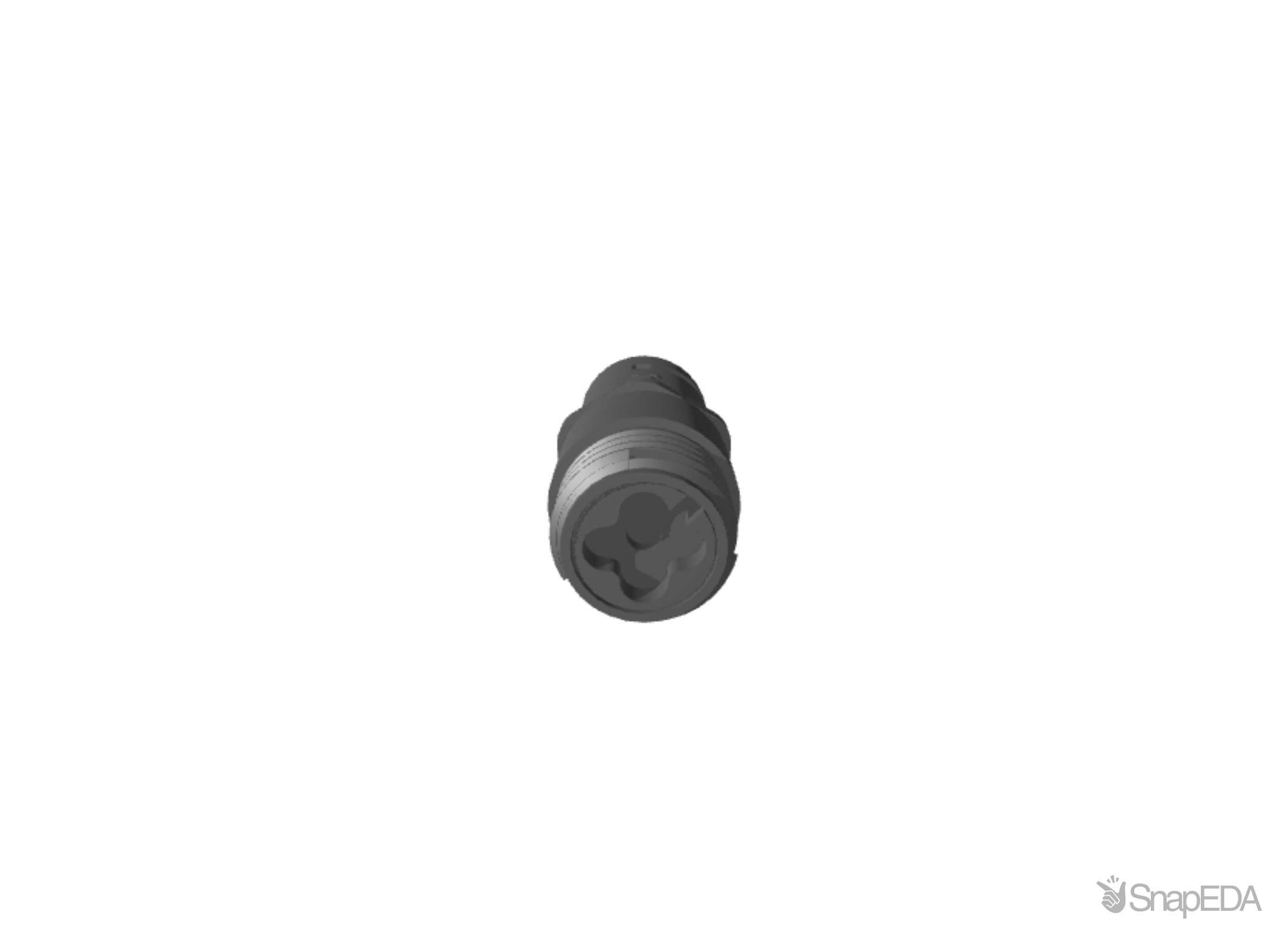

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1445526-1
| Part Name | 1445526-1 |
| Manufacturer | TE Connectivity |
| Circuit Application | Power & Signal |
| UL Flammability Rating | UL 94 V-0 |
| Housing Material | Thermoplastic |
| Number of Power Positions | 0 |
| Operating Voltage (V) | 250 |
| Shell Size | 8 |
| Seal Type | Peripheral |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Wire |
| Screw & Hole Thread Size | 1/2-20 UNF-2A |
| TE Internal Number | 1445526-1 |
| Number of Positions | 1 |
| Termination Method to Wire & Cable | Crimp |
| Housing Type | Receptacle |
| Housing Color | Black |
| Number of Signal Positions | 1 |
| Sealable | Yes |
| Operating Temperature Range | -67 – 221 |
| Shielded | No |
| Packaging Method | Bag |
| Packaging Quantity | 100 |
| Fluid Resistance | Immersion |
| Accepts Wire Insulation Diameter Range | .89 – 1.5 |
| Mating Alignment | With |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Mating Retention | With |
| Product Type | Housing |
| Reverse Gender | Standard |
| Shell Type | All Plastic |
| Mating Retention Type | Threaded Coupling |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Type | Pin |
| Wire Size | 30 – 18 |
