1445538-1

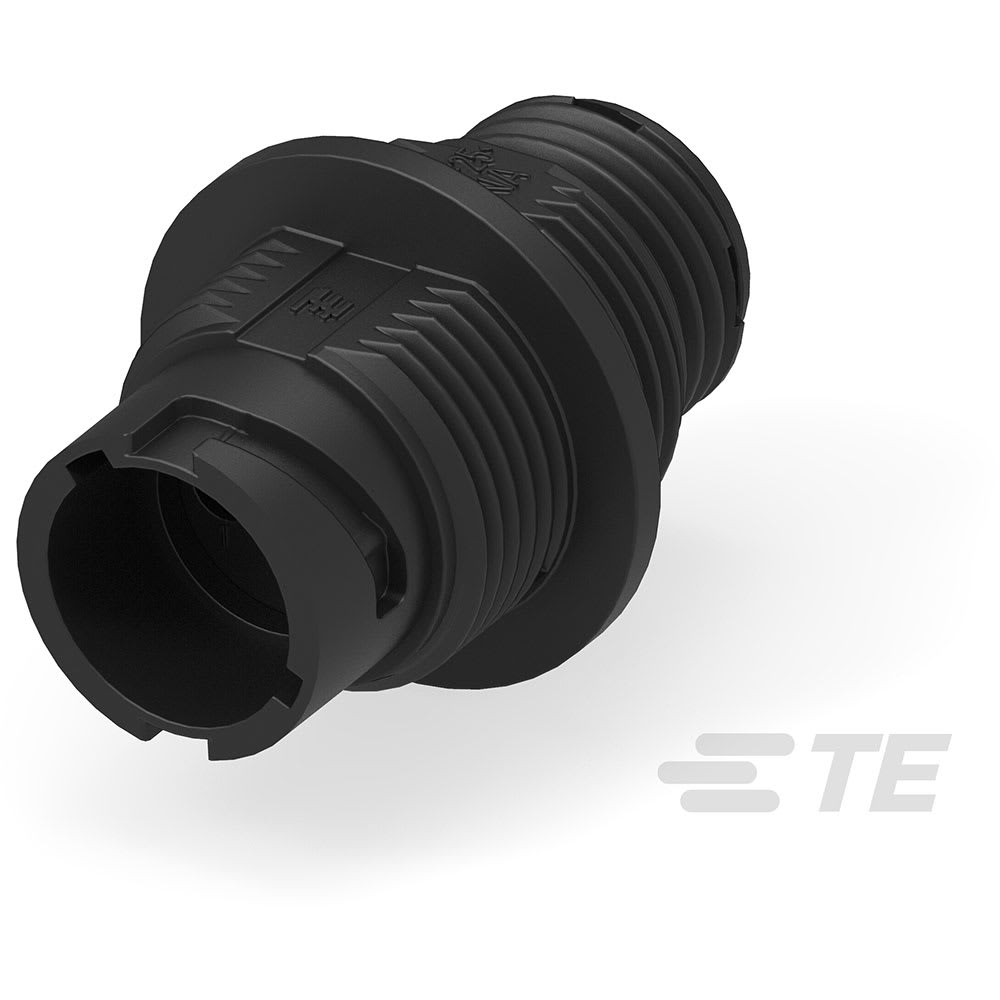

Connector, Mini CPC, Sealed, Receptacle, 2 Pos., Shell Sz. 8, IP 67, Flange | TE Connectivity 1445538-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1445538-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint

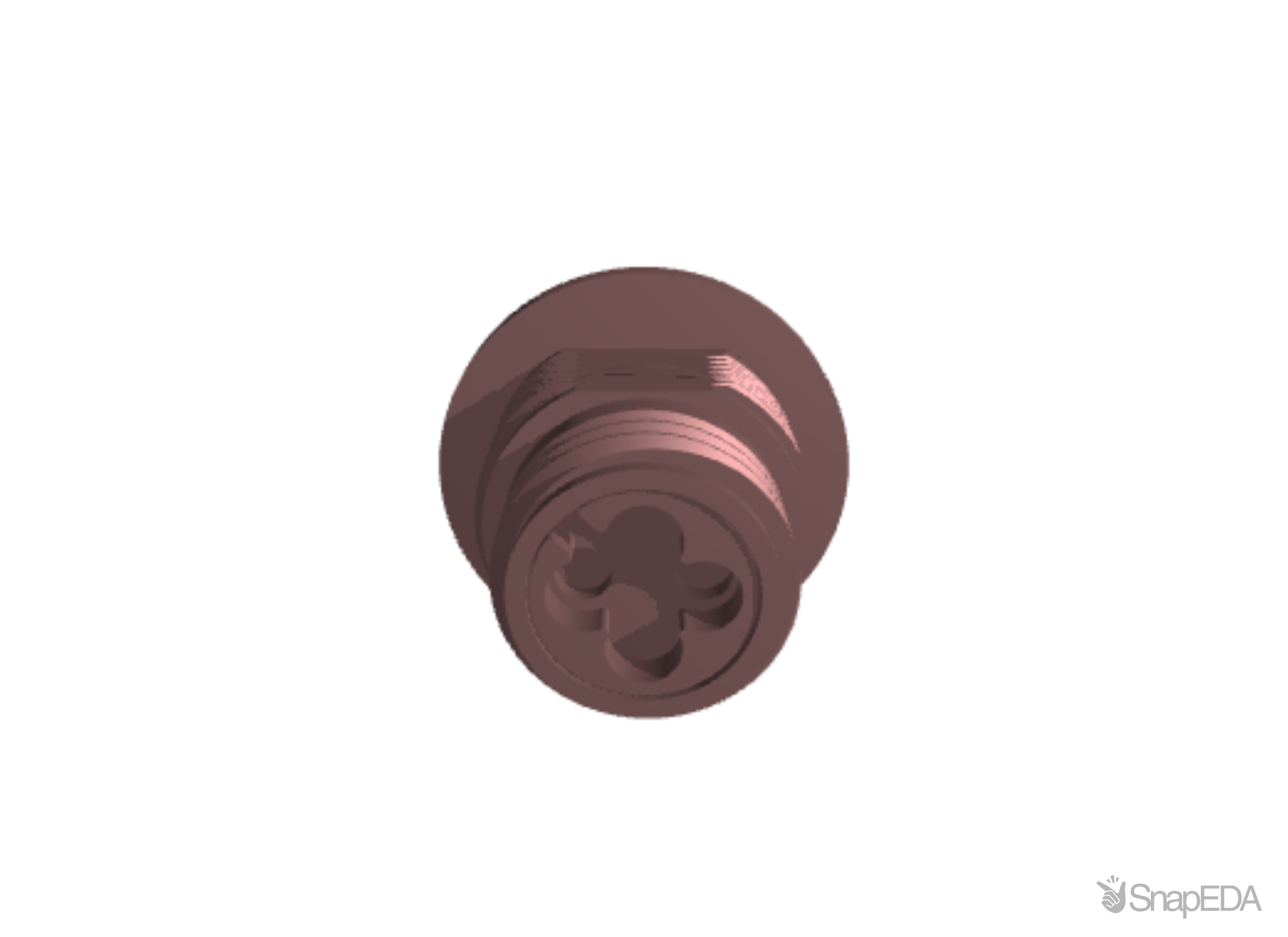

- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1445538-1
| Part Name | 1445538-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Circuit Application | Power & Signal |
| UL Flammability Rating | UL 94 V-0 |
| Mating Retention | With |
| Number of Power Positions | 0 |
| Operating Voltage (V) | 250 |
| Shell Size | 8 |
| Seal Type | Wire Entry Seal |
| Number of Positions | 2 |
| Termination Method to Wire & Cable | Crimp |
| Screw & Hole Thread Size | 1/2-20 UNF-2A |
| TE Internal Number | 1445538-1 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Wire |
| Housing Type | Receptacle |
| Housing Color | Black |
| Number of Signal Positions | 2 |
| Sealable | Yes |
| Connector Mounting Type | Panel |
| Operating Temperature Range | -55 – 105 |
| Shielded | No |
| Packaging Method | Carton |
| Packaging Quantity | 100 |
| Fluid Resistance | Immersion |
| Accepts Wire Insulation Diameter Range | .035 – .059 |
| Mating Alignment | With |
| RoHS | True |
| Housing Material | Thermoplastic |
| Product Type | Housing |
| Reverse Gender | Standard |
| Shell Type | All Plastic |
| Mating Retention Type | Threaded Coupling |
| Panel Mount Feature | With |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Type | Pin |
| Wire Size | 30 – 18 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
