1452158-1
Contact female 0.3-0.6mm² Quadlock | TE Connectivity 1452158-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1452158-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

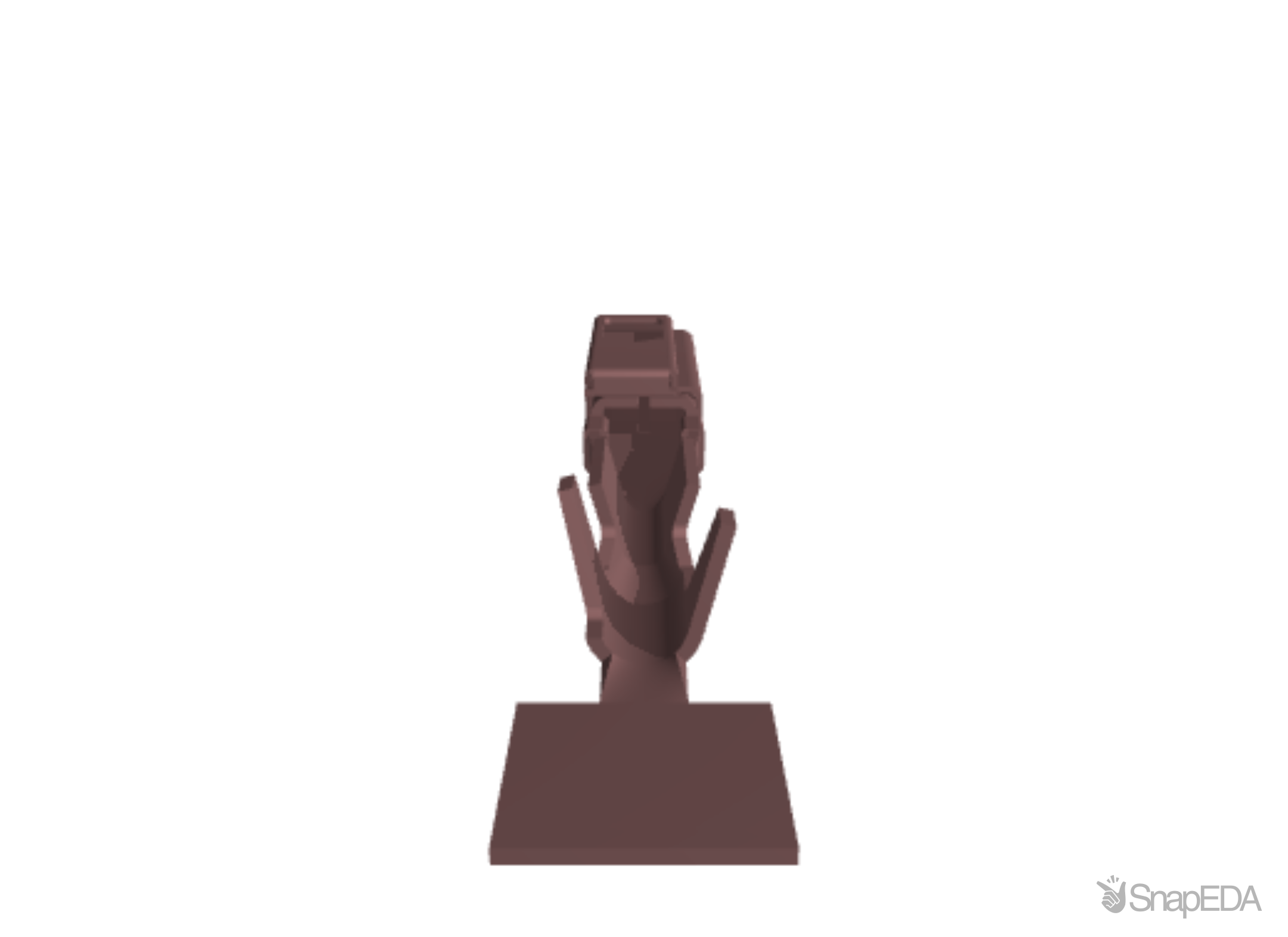

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1452158-1
| Part Name | 1452158-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Wire Type | Copper |
| Wire Insulation Diameter | 1.1 – 1.6 |
| Wire Size Search | 20 |
| Receptacle Style | 180° |
| TE Internal Number | 1452158-1 |
| Termination Method | Crimp |
| Typical Current Rating (A) | 7.5 |
| Sealable | No |
| Operating Temperature Range | -40 – 248 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Reel |
| Packaging Quantity | 12000 |
| Contact Termination Area Plating Material | Tin (Sn) |
| RoHS | True |
| Mating Tab Width | .059 |
| Crimp Type | F-Crimp |
| Interface Plating | Tin (Sn) |
| Primary Locking Feature | Clean Body |
| Mating Tab Thickness | .63 |
| Terminal Transmits | 0 – 24 A (Low Power) |
| Wire Size | .35 – .5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | MQS |
| Gender | Female |
