1457568
SnapVerified

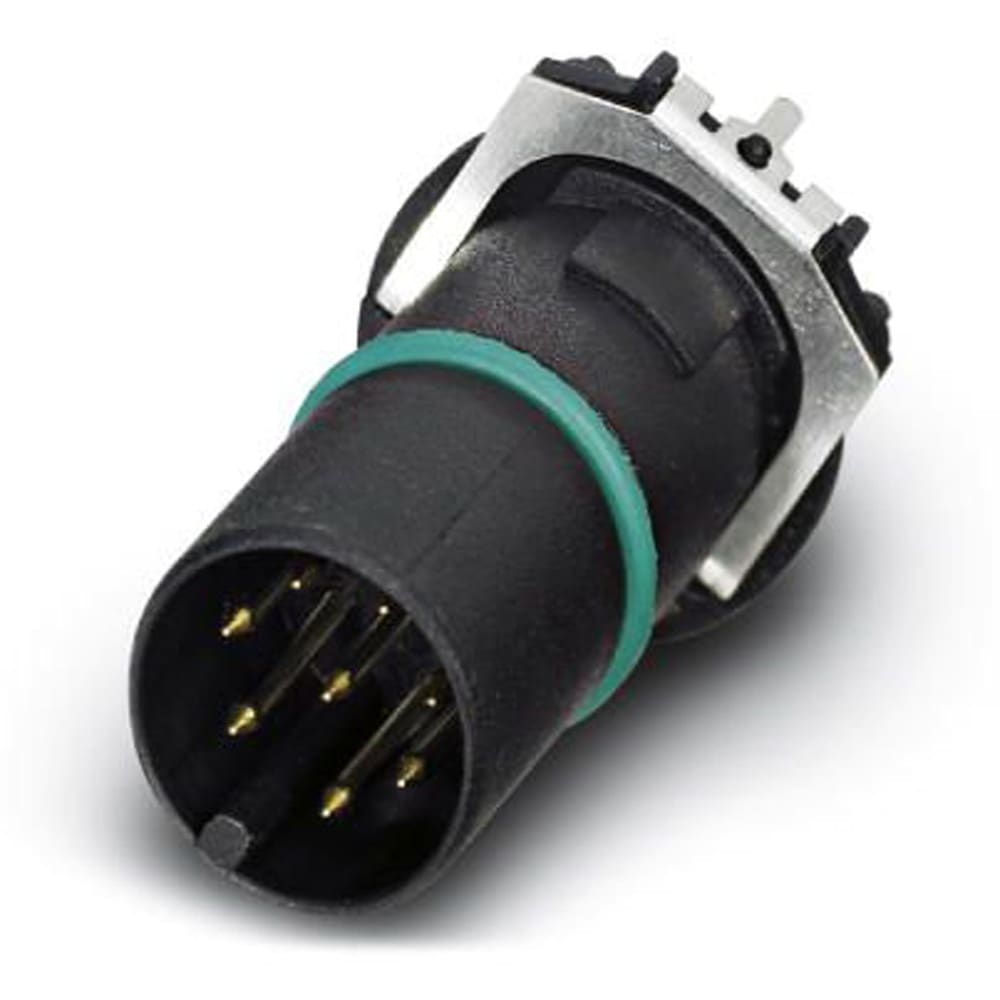

Phoenix Contact 1457568 SACC-CI-M12MS- 8CON-SH TOR 32
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1457568 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1457568
| Part Name | 1457568 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Nickel/gold |
| Category | Connectors |
| Min. Operating Temperature | -25 |
| Coding (head 1) | A-coded |
| Product Article Number Of Manufacturer | 1457568 |
| Product Description | Contact carrier |
| Shield Connection Present | True |
| Pole Number | 8 |
| Max. Operating Temperature | 85 |
| Type Of Plug-in Contact, Outside | Male (plug) |
| Construction Form Of The Plug Connector | M12 |
| Insertion Cycles, Min. | 100 |
| Rated Current (A) | 2 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| GTIN | 4046356617314 |
| Manufacturer Product Designation | Contact carrier |
| Degree Of Soiling | 3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1457568
