1462043-3
IME03GR=140MW 5V 2NO | TE Connectivity 1462043-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1462043-3 by TE Connectivity Potter & Brumfield Relays and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

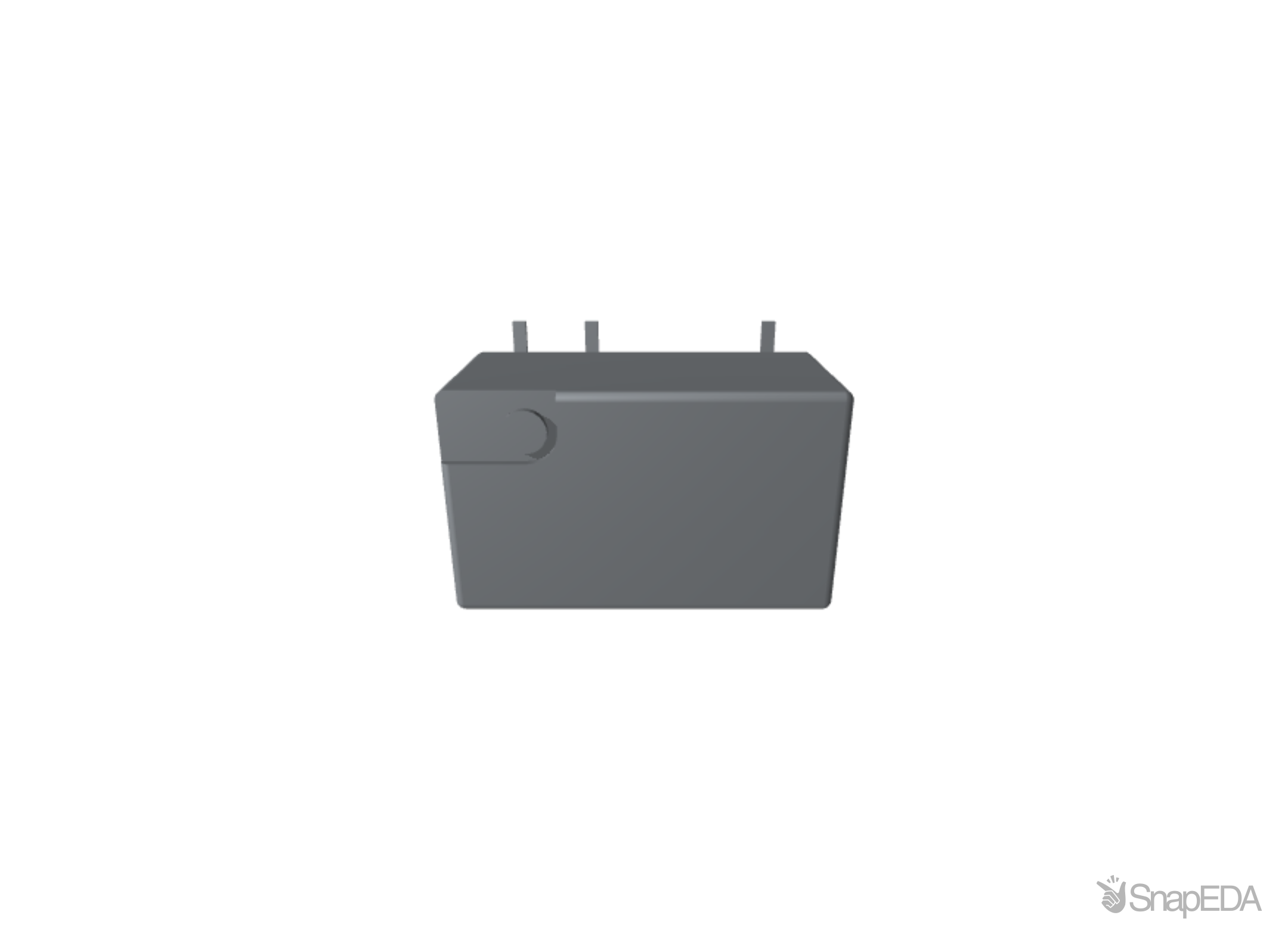

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1462043-3
| Part Name | 1462043-3 |
| Manufacturer | TE Connectivity |
| Dimensions (L x W x H) (Approximate) | 10 x 6 x 5.65 |
| Category | Connectors |
| Coil Power Rating (DC) | 140 |
| Contact Limiting Making Current (A) | 2 |
| Relay Type | IM Relay |
| Height Class (Mechanical) | 0 – 6 mm |
| Width | .222 |
| Insulation Initial Resistance | 1000000 |
| Contact Limiting Continuous Current (A) | 2 |
| Contact Switching Voltage (Max) (V) | 250 |
| Coil Resistance | 178 |
| Contact Current Class (A) | 0 – 2 A |
| Contact Arrangement | 2 Form A (NO) |
| Contact Voltage Rating (V) | 250 |
| Coil Type | Monostable |
| Contact Number of Poles | 2 |
| Contact Plating Material | Gold |
| TE Internal Number | 1462043-3 |
| Performance Type | Standard |
| Width Class (Mechanical) | 0 – 6 mm |
| Additional Features | Gull Wing |
| Terminal Type | PCB-SMT |
| Contact Special Features | Bifurcated/Twin Contacts |
| Insulation Initial Dielectric Between Contacts and Coil | 1800 |
| Operating Temperature Range | -40 – 85 |
| Coil Voltage Rating (V) | 5 |
| Packaging Method | Reel |
| Insertion Loss (HF Parameter) | -.33dB @ 900MHz |
| Environmental Ambient Temperature (Max) | 85 |
| Length | 10 |
| Contact Switching Load (Min) | .1mA @ .0001V |
| Insulation Special Features | 2500V Initial Surge Withstand Voltage between Contacts & Coil |
| Insulation Initial Dielectric Between Coil/Contact Class | 1500 V – 2500 VA |
| Coil Magnetic System | Monostable, DC, Polarized |
| Actuating System | DC |
| Isolation (HF Parameter) | -18.8dB @ 900MHz |
| Environmental Ambient Temperature Class | 70 – 85°C |
| Product Type | Relay |
| Mounting Type | Printed Circuit Board |
| Weight | .75 |
| Contact Limiting Short-Time Current (A) | 2 |
| Contact Current Rating (A) | 2 |
| Contact Limiting Breaking Current (A) | 2 |
| Coil Power Rating Class | 50 – 300 mW |
| Height | 5.65 |
| Voltage Standing Wave Ration (HF Parameter) (V) | 1.49 @ 900Mhz |
| Termination Type | Surface Mount |
| Insulation Initial Dielectric Between Adjacent Contacts | 1000 |
| Length Class (Mechanical) | 0 – 10 mm |
| Environmental Category of Protection | RTV |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Contact Material | PdRu+Au |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 6 x 5.65 (mm) |
| Maximum Switching Voltage Dc (V) | 220 (V) |
| Application | Access & Transmission Equipment, Consumer Electronics, Industrial Controls, Measurement & Test Equipment, Medical Equipment, Modems, Office & Business Equipment, Optical Network Terminals, Telecommunication |
| Maximum Switching Power Dc | 60 W |
| Height | 5.65 (mm) |
| Coil Resistance | 178 (Ω) |
| Life | 100000000 (Mechanical) operations, 2500000 (Electrical) operations |
| Standards Met | UL 508 File No. E 111441 |
| Coil Power | 140 (mW) |
| Isolation Coil To Contact | 1.5 (kV ac) |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 2 (A) |
| Coil Voltage (V) | 5 (V dc) |
| Operating Temperature Range | -40 → +85 (°C) |
| Latching | No |
| Contact Configuration | DPDT |
| Maximum Switching Current Dc (A) | 2 A |
| Depth | 6 (mm) |
| Relay Switching Classification | General Purpose Relay |
| Maximum Switching Voltage Ac (V) | 250 (V) |
| Maximum Switching Power Ac | 62.5 (VA) |
| Number Of Poles | 2 |
| Features | Bifurcated Contacts |
| Mounting Type | Surface Mount |
| Series | IM-E |
| Length | 10 (mm) |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Gold Plated |
