146443-5
10 MODII HDR DRST B/A .100CL
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 146443-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

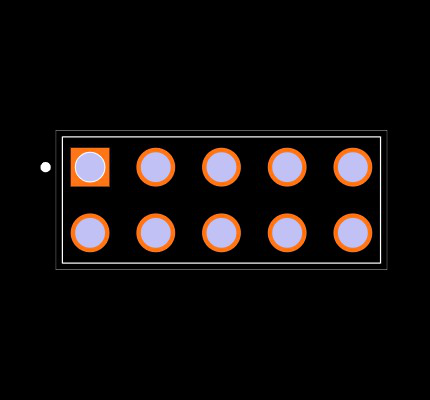

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 146443-5
| Part Name | 146443-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Termination Method to Printed Circuit Board | Surface Mount |
| Row-to-Row Spacing | 2.54 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Mating Post Length | .23 |
| TE Internal Number | 146443-5 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Breakaway |
| Strain Relief | Without |
| Contact Shape | Square |
| Packaging Method | Carton |
| Packaging Quantity | 320 |
| Number of Positions | 10 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| RoHS | No |
| Life Cycle Status | Obsolete |
| Housing Material | Thermoplastic |
| Contact Base Material | Copper Alloy |
| High Temperature Housing | No |
| Contact Mating Area Plating Material Thickness | 5 |
| Panel Mount Feature | Without |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| High Temperature Compatible | No |
| Contact Type | Pin |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
