146540-2
Conn Compact Flash Card HDR 50 POS 1.27mm Solder ST SMD 0.5A/Contact Box/Tray
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 146540-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

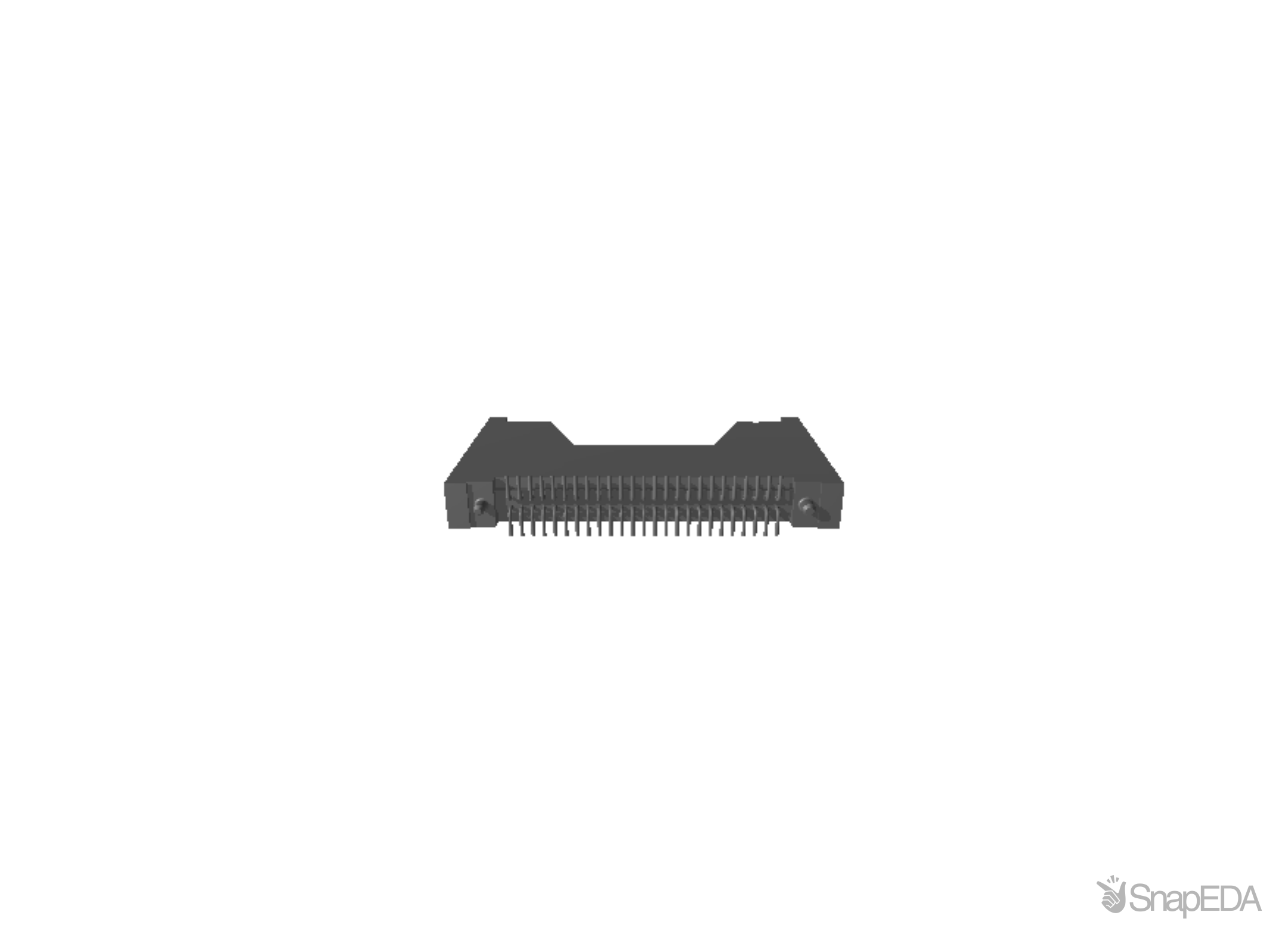

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 146540-2
| Part Name | 146540-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 1.27 |
| Vacuum Tape | Without |
| TE Internal Number | 146540-2 |
| Housing Material | LCP (Liquid Crystal Polymer) |
| PCB Offset | 0 |
| CompactFlash Product Type | Header Only |
| Number of Positions | 50 |
| Profile | Low |
| Format | CompactFlash |
| Hold-Down | Without |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Cable-to-Board |
| Circuit Application | Signal |
| Number of Rows | 2 |
| Contact Underplating Material | Nickel |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 85 |
| Shielded | No |
| Packaging Method | Tray |
| Lead Configuration | Inline |
| 端子の下地めっきの材料 | Nickel |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Life Cycle Status | Obsolete |
| PCB Mounting Style | Surface Mount Inline Leads |
| Mounting Angle | Vertical |
| Contact Base Material | Brass |
| Color | Black |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | .5 |
| Product Type | Removable Memory Products |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
