1472147

Name: 1472147
Brand: Phoenix Contact

SnapVerified

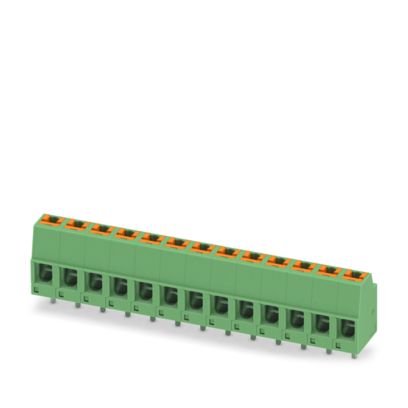

Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of rows: 1, number of positions per row: 13, product range: SPTH 1,5, pitch: 5 mm

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 1472147 by Phoenix Contact and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

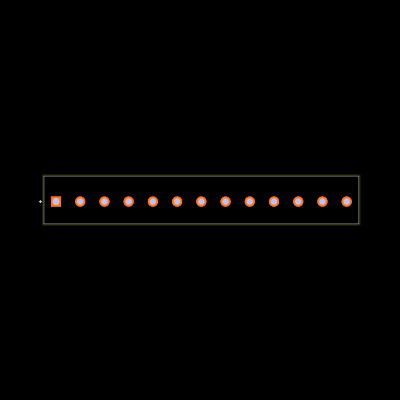

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 1472147

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 1472147

Part Name	1472147
Manufacturer	Phoenix Contact
Assembly Type	Print mounting
Min. Conductor Cross-section (flexible Wire With Ferrule Without Plastic Collar)	0.25
Flammability Rating Of The Insulating Material (based On Ul 94)	V0
Min. Line Cross Section, Flexible	0.14
Material Of Insulation	PA
Max. Line Cross Section, Flexible	2.5
Product Description	PCB terminal block
Max. Line Cross Section, Rigid	2.5
Height	17.25
Width	65
Depth	9.85
Gtin (ean) Code	4063151882310
Min. Line Cross Section, Rigid	0.14
Manufacturer Product Designation	PCB terminal block
Internal Article Number	1472147
Application Standards	IEC 60947-7-4
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the 1472147 by Phoenix Contact.
