1473565-4
RITS CONN.HDR ASSY 4P | TE Connectivity 1473565-4
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1473565-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

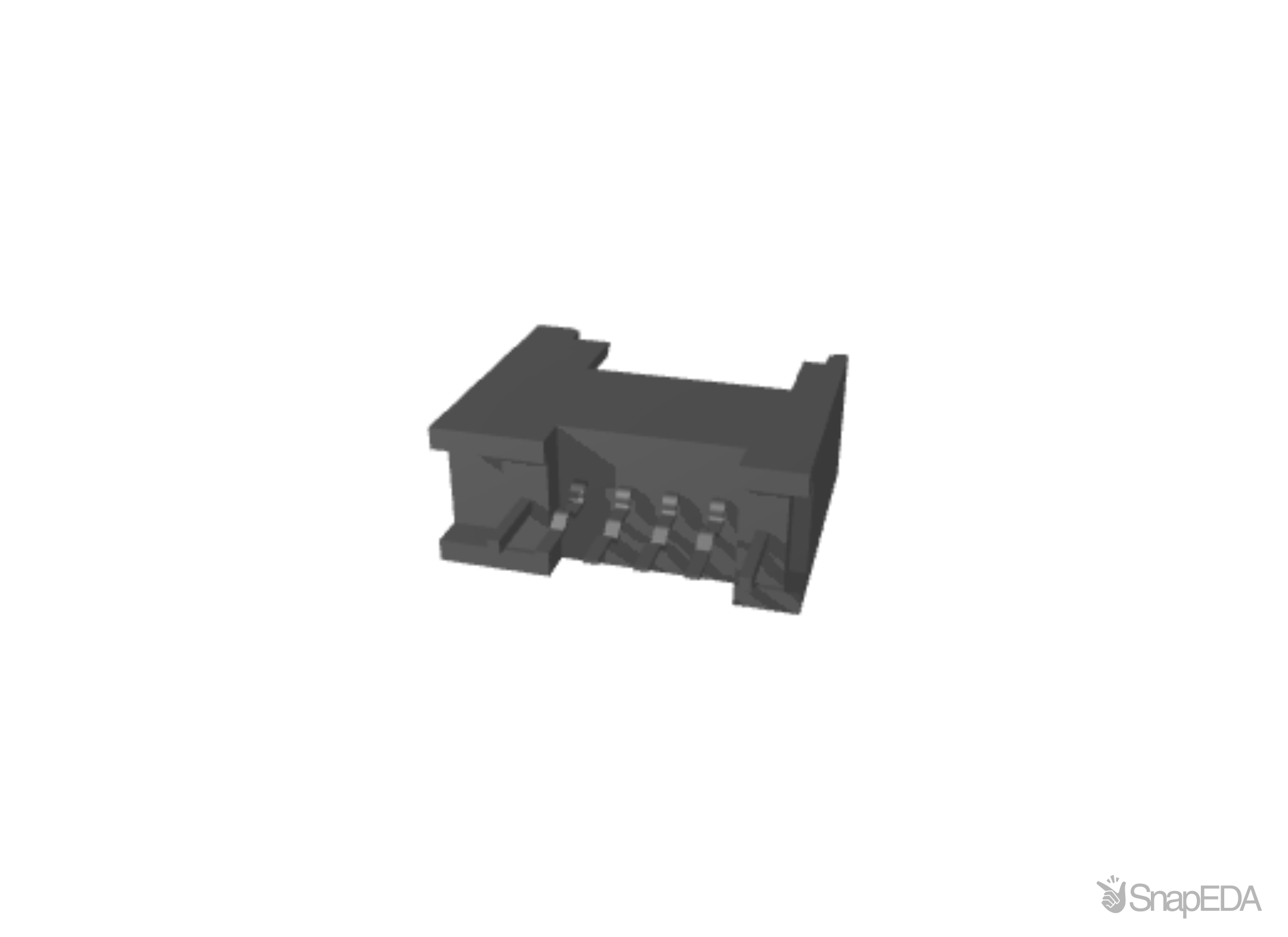

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1473565-4
| Part Name | 1473565-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .079 |
| Operating Voltage (V) | 32 |
| Tail Plating Thickness | 78.74 |
| Mating Retention Type | Latch |
| Housing Material | Thermoplastic GF |
| Width | .251 |
| Connector & Contact Terminates To | Printed Circuit Board |
| High Temperature Header | Yes |
| Circuit Identification Feature | Without |
| For Use With | Connector Assembly |
| PCB Mount Alignment Type | Locating Posts |
| Number of Positions | 4 |
| PCB Mount Retention Type | Retention Leg |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.6 |
| Contact Plating Material | Gold Over Nickel |
| TE Internal Number | 1473565-4 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Header Type | Shrouded |
| Sealable | No |
| Multiple Contact Types | Without |
| Mating Retention | With |
| Operating Temperature Range | -30 to 75 |
| Shielded | No |
| Packaging Method | Tube |
| Tail Length | .13 |
| Shunts/Shorting Bars | Without |
| Connector Type | Header |
| Contact Layout | Inline |
| Halogen Free | Yes |
| Length | .622 |
| Mating Alignment | With |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Packaging Quantity | 30 |
| Connector Style | Receptacle |
| Panel Mount | No |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Mounting Angle | Vertical |
| Product Type | Connector |
| Termination Post Length | .13 |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Height | .511 |
| ???? | Black |
| Contact Current Rating (Max) (A) | 3 |
| Contact Retention | Without |
| Contact Type | Socket |
| Tail Plating Material | Tin |
| Preloaded | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3 (A) |
| Mounting Type | PCB Mount |
| Voltage Rating (V) | 32.0 V dc |
| Series | RITS |
| Body Orientation | Straight |
| Pitch | 2.0 (mm) |
| Number Of Rows | 1 |
| Termination Method | Solder |
| Number Of Contacts | 4 |
| Contact Material | Copper Alloy |
Inventory for the 1473565-4 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
758
|
|
Visit Site | |
|
★ Featured
|
1,351
|
|
Visit Site | |
|
★ Featured
|
16
|
52 x $6.52
|
Visit Site | |
| Arrow Asia |
5,230
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Farnell UK |
3,319
|
|
Visit Site | |
| Heilind Americas |
|
2,400 x $4.03
|
Visit Site | |
| Newark |
3,319
|
|
Visit Site | |
| Onlinecomponents |
33,486
|
|
Visit Site | |
| Powell Electronics |
24,968
|
|
Visit Site | |
| RS UK |
2,104
|
|
Visit Site | |
| Sager |
|
2,400 x $5.04
|
Visit Site | |
| TE Connectivity |
1,767
|
|
Visit Site | |
| TME |
37,830
|
|
Visit Site | |
| TTI Europe |
810
|
|
Visit Site | |
| Verical |
6,720
|
|
Visit Site | |
| element14 Singapore |
3,384
|
|
Visit Site |
No issues have been reported for the 1473565-4
