1483351-3

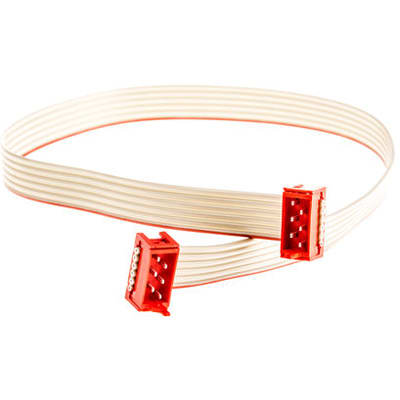

6 way jumper cable 1.27mm pitch 250mm | TE Connectivity 1483351-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1483351-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1483351-3
| Part Name | 1483351-3 |
| Manufacturer | TE Connectivity / AMP |
| Overall Outside Cable Diameter | .036 |
| Category | Wire & Cable |
| Housing Material | PBT GF20 |
| Cable Assembly Length | .25 |
| Number of Power Positions | 0 |
| Number of Positions | 6 |
| TE Internal Number | 1483351-3 |
| Connector Type (End A) | Micro-Match MOW Connector |
| Housing Color | Red |
| Product Designation | Patch Cord |
| Configuration | Double-Ended |
| Cable Assembly Type | Micro-Match Lead |
| Flammability Rating | UL 2651 |
| Operating Temperature Range | -40 – 221 |
| Shielded | No |
| Equalized | Yes |
| Cable Assembly Category | Industry Standard |
| Keyed | Yes |
| RoHS | True |
| Product Type | Cable Assembly |
| Color | Gray |
| CLOUDSPLITTER | No |
| Connector Type (End B) | Micro-Match MOW Connector |
| Wire Size | .08 |
| IEEE 1394 | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Connector 2 Gender | Male |
| Standards Met | RoHS Compliant |
| Series | Micro-MaTch |
| Connector 1 Gender | Male |
| Sheath Colour | Grey |
| Ribbon Cable Type | Flat |
| Length | 250 (mm) |
| Pitch | 1.27 (mm) |
| Connector 2 | Micro-MaTch IDC |
| Number Of Ways | 6 |
| Connector 1 | Micro-MaTch IDC |
| Terminated Unterminated | Terminated |
