150141GS73140
SnapVerified
Standard LEDs - SMD WL-SMTW Wtrclr TopVw Grn 3.2V 50mA 520nm
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 150141GS73140 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

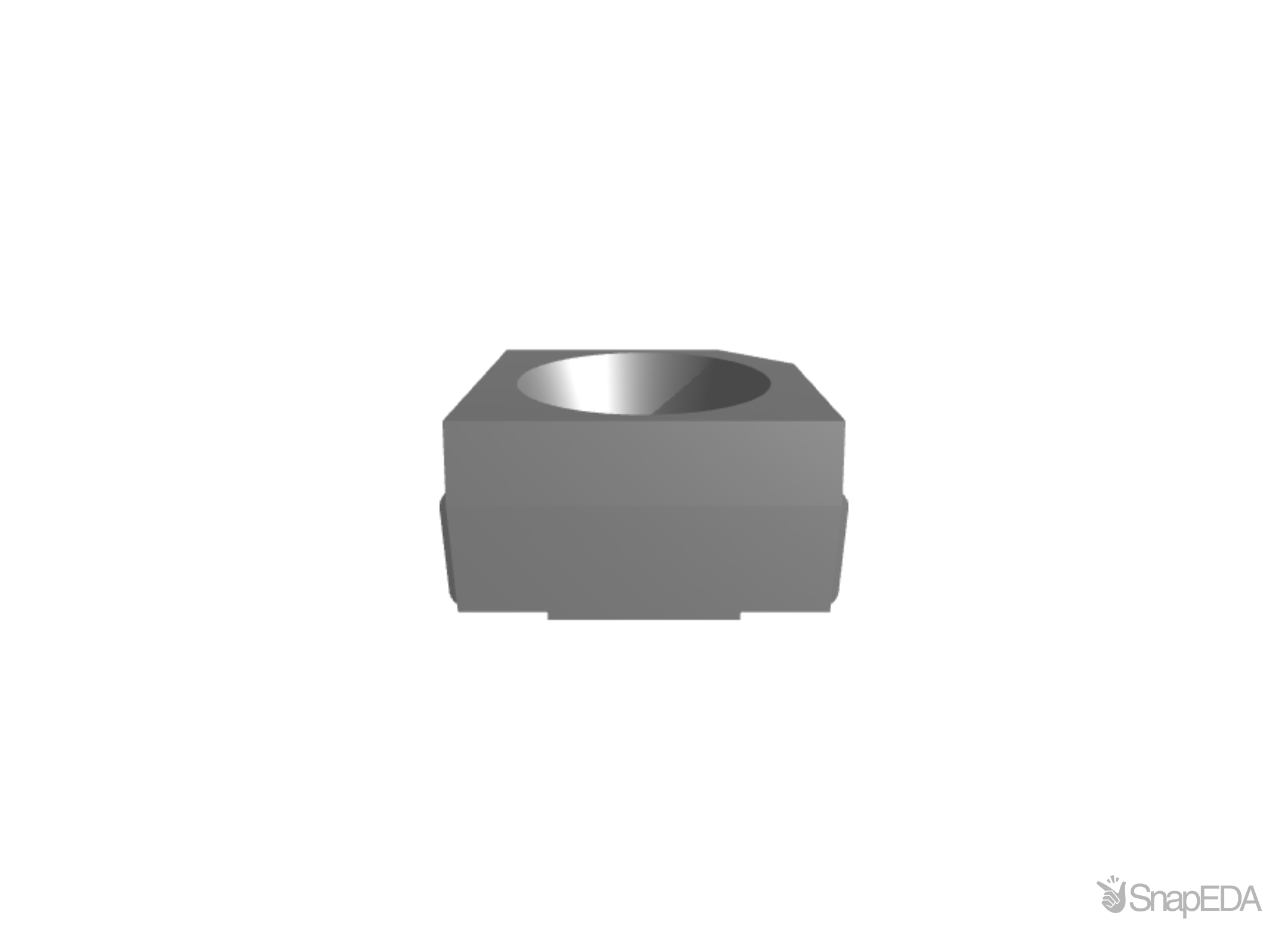

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 150141GS73140
| Part Name | 150141GS73140 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | 3528 PLCC 4 (3A 1C) |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | 3528 Green Typ.(@50mA): 520 nm; 5000 mcd; 3,2 V; 120° InGaN Common Cathode; White case |
| Product Family | Signal LEDs |
| Weight | 0.01 |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Spq | 2000 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | 7''Reel |
| Height | 1.9 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 2.8 mm |
| Length | 3.5 mm |
| Product Unit | Optoelectronics |
| Product Group Description | LEDs |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
