15210262601000
Conn;PCB;Female;1.27mm Pitch;26 Pin;2 Row;Straight;Stacking Hght 6.25mm;har-flex | HARTING 15210262601000
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 15210262601000 by Harting and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

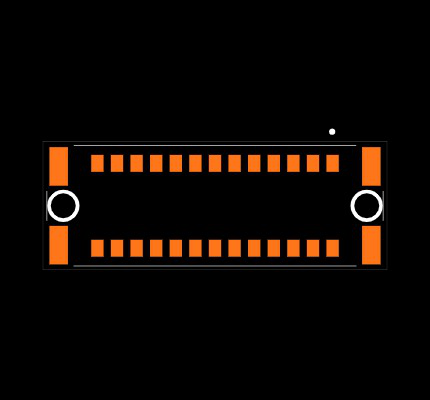

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 15210262601000
| Part Name | 15210262601000 |
| Manufacturer | HARTING |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 800 (mA) |
| Mounting Type | Surface Mount |
| Series | Har-Flex |
| Body Orientation | Straight |
| Pitch | 1.27 (mm) |
| Number Of Rows | 2 |
| Termination Method | Solder |
| Number Of Contacts | 26 |
| Type | Wire to Board |
| Contact Material | Copper |
