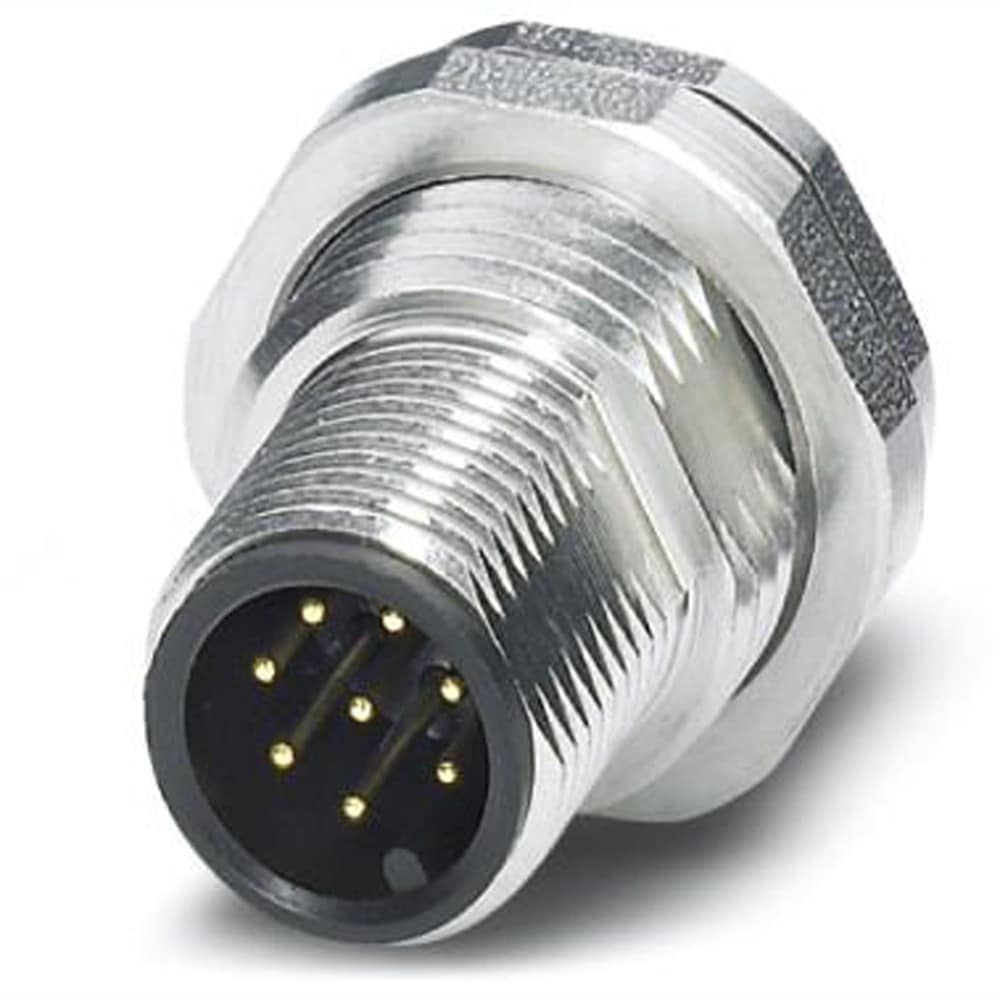

Phoenix Contact 1529807 SACC-DSI-M12MS-8CON-L180 VA
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
