1542774
SnapVerified

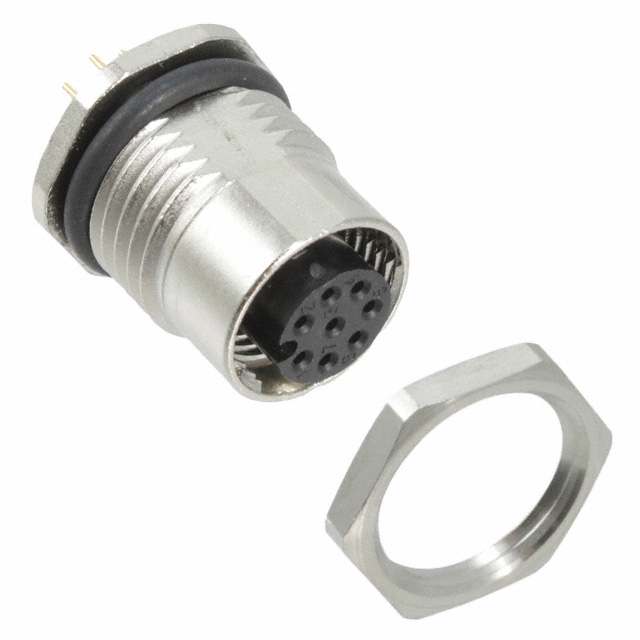

8 Position Circular Connector Receptacle, Female Sockets Solder
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1542774 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

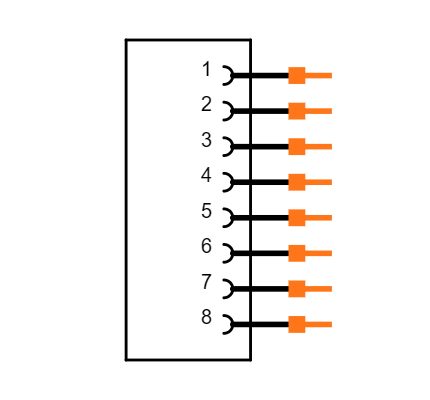

Symbol
No web preview
This Symbol is Available for

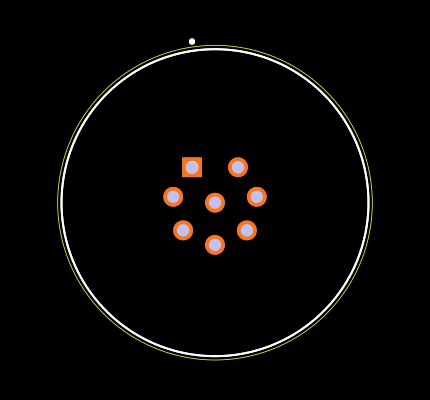

Footprint
No web preview
This Footprint is Available for

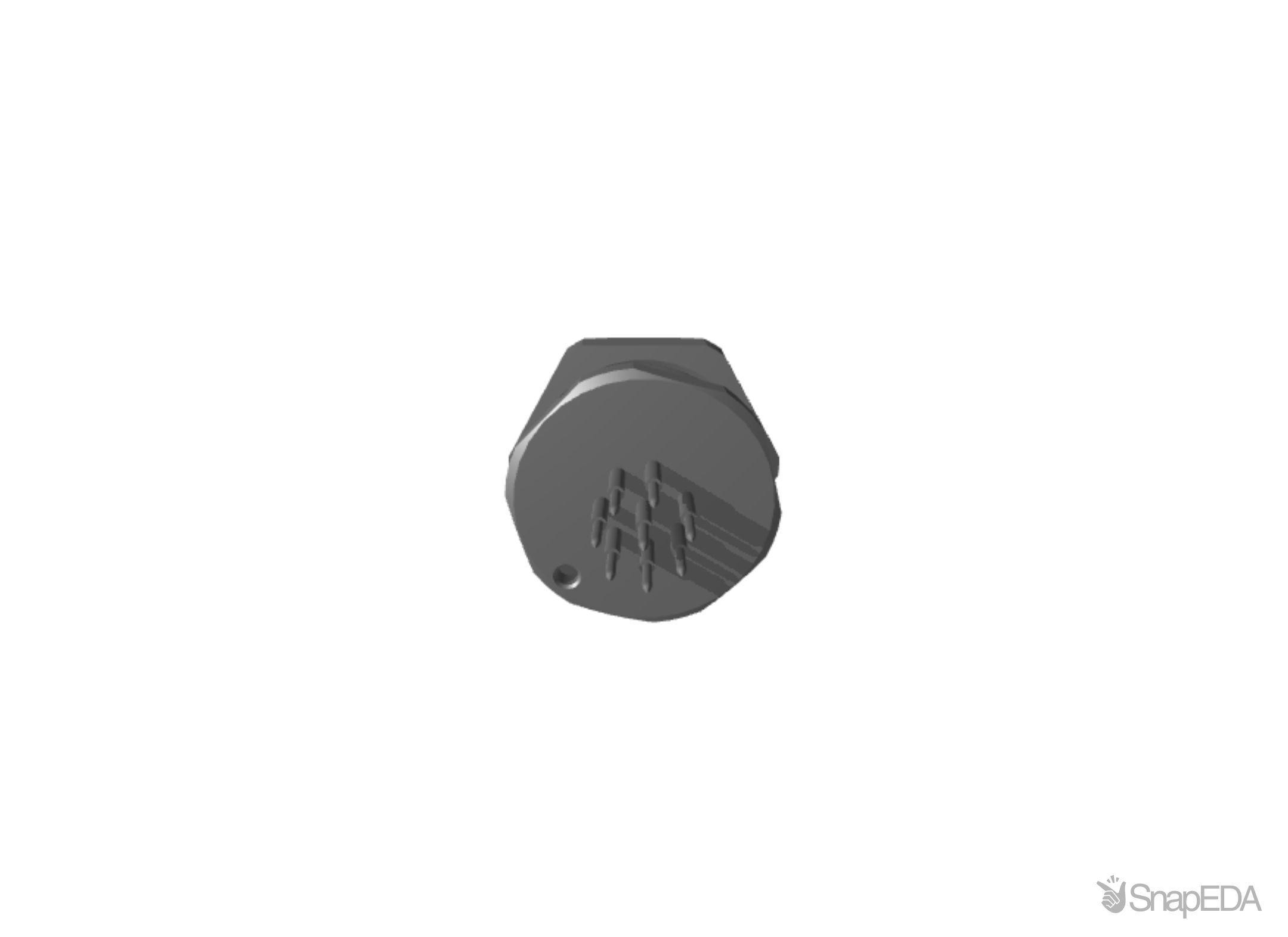

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1542774
| Part Name | 1542774 |
| Manufacturer | Phoenix Contact |
| Rated Current (A) | 2 |
| Shield Connection Present | False |
| Max. Operating Temperature | 85 |
| Pe Connection Present | False |
| GTIN | 4046356097789 |
| Type Of Plug-in Contact, Outside | Female (socket) |
| Degree Of Protection (ip), Mounted | IP67 |
| Min. Operating Temperature | -25 |
| Coding (head 1) | A-coded |
| Product Description | Device connector rear mounting |
| Material Of Housing | Zink print cast |
| Gtin (ean) Code | 4046356097789 |
| Internal Article Number | 1542774 |
| Number Of The Executions Of The Housing Parts | 0 |
| Mounting Design | plug insert |
| Insertion Cycles, Min. | 100 |
| Manufacturer Product Designation | Device connector rear mounting |
| RoHS | True |
| Material Of The Contact Coat | Gold |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1542774 |
| Pole Number | 8 |
| Net Weight | 0.01326 |
| Construction Form Of The Plug Connector | M12 |
| Max. Ambient Temperature | 85 |
| Degree Of Soiling | 3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Plug Socket | Socket |
| Mounting Type | Rear Mount |
| Connector Size | M12 |
| Termination Method | Solder |
