1546074-9
9 POS 5.08MM TERMI-BLOK TOP WI | TE Connectivity 1546074-9
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1546074-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

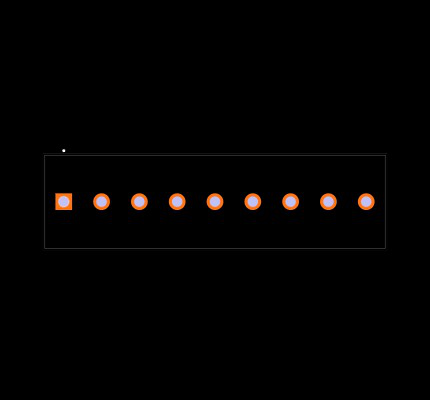

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1546074-9
| Part Name | 1546074-9 |
| Manufacturer | TE Connectivity |
| Category | Tools & Hardware |
| Centerline (Pitch) | 5.08 |
| Pin Length | 3.8 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M3 |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Connector & Contact Terminates To | Printed Circuit Board |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 17.5 |
| Screw Material | Brass |
| TE Internal Number | 1546074-9 |
| PCB Tail Length | 3.8 |
| Number of Positions | 9 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Header Only |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 230 |
| Packaging Method | Box |
| Packaging Quantity | 100 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Straight |
| Threaded Flange | Without |
| Color | Black |
| Interlock | With |
| Wire Entry Angle | 35 |
| Contact Current Rating (Max) (A) | 17.5 |
| Block Type | Stacking w/interlock |
| Voltage (V) | 300 |
| Wire Size | 30 12 |
| Closed End | Without |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1546074-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
341
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
2,717
|
|
Visit Site | |
| Conrad |
2,717
|
|
Visit Site | |
| Farnell UK |
2,446
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
2,717
|
|
Visit Site | |
| Powell Electronics |
1,793
|
|
Visit Site | |
| RS UK |
|
1 x $6.34
|
Visit Site | |
| Sager |
|
400 x $5.67
|
Visit Site |
No issues have been reported for the 1546074-9
