1546734-5
Conn Barrier Strip 5 POS 8.26mm Solder ST Thru-Hole 20A/Contact Carton
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1546734-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

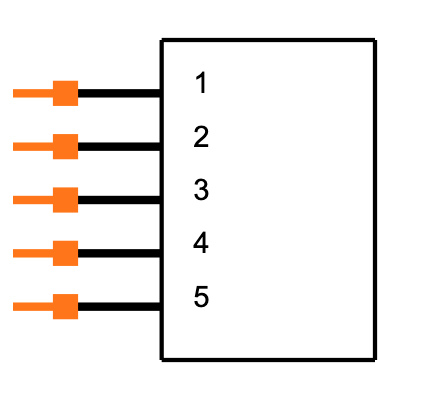

Symbol
No web preview
This Symbol is Available for

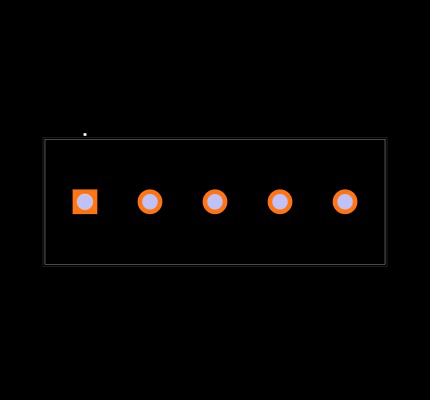

Footprint
No web preview
This Footprint is Available for

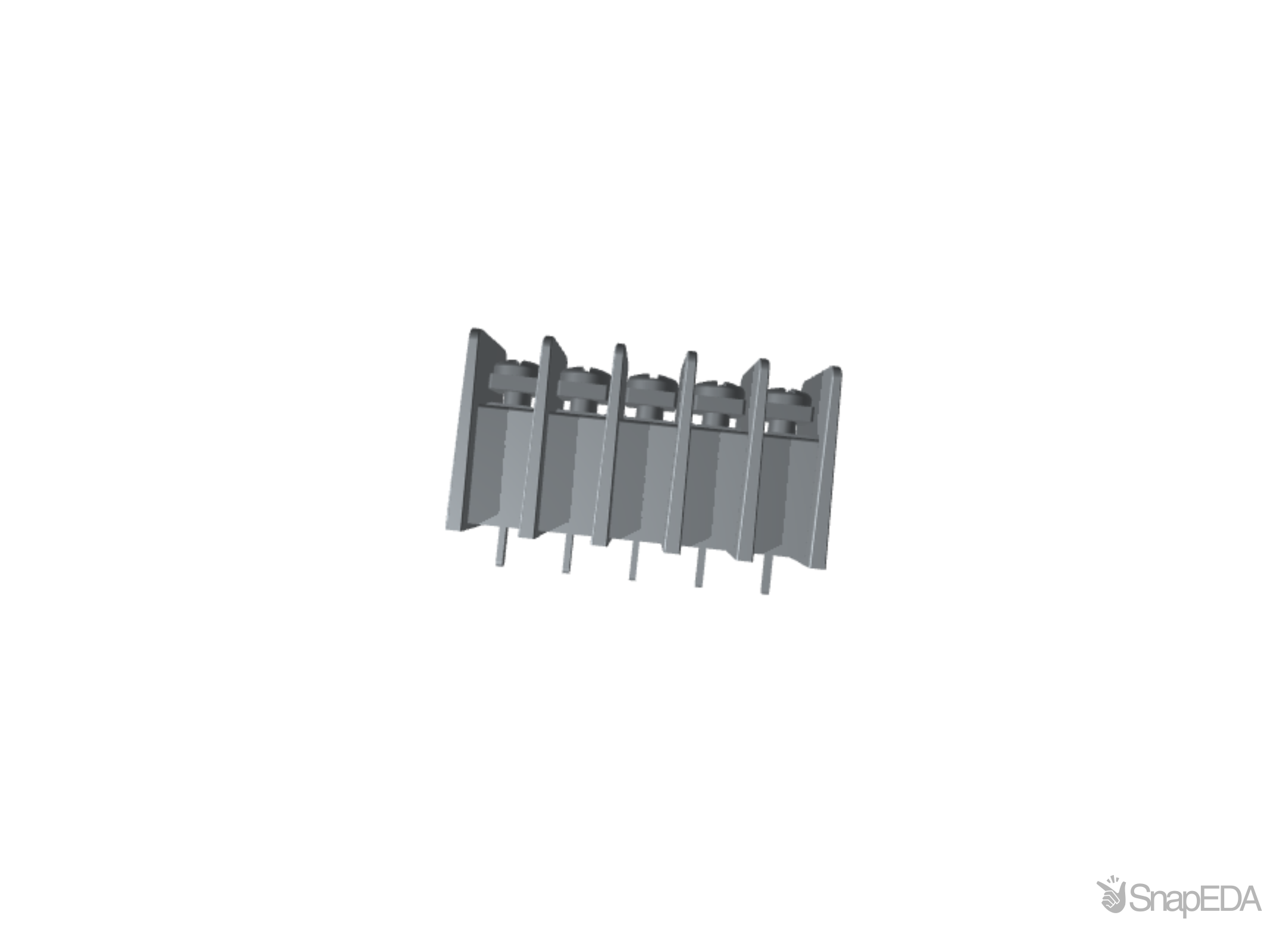

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1546734-5
| Part Name | 1546734-5 |
| Manufacturer | TE Connectivity |
| Bottom Termination Style | Printed Circuit Pin |
| Centerline (Pitch) | 8.26 |
| Top Hardware | Wire Clamp Combo Head |
| Housing Material | Nylon 66 |
| Screw Plating Material | Zinc Chromate |
| Mounting Insert | Without |
| Screw Size | 6-32 |
| Screw Head Type | Combo Phil-Slot |
| Number of Positions | 5 |
| Profile | High |
| Current Rating (Max) (A) | 20 |
| Block Style | Open Bottom with Standoffs |
| TE Internal Number | 1546734-5 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Rows | 1 |
| Product Type | Barrier Strip |
| Terminal Material | Brass |
| Packaging Method | Carton |
| Packaging Quantity | 150 |
| Length | 1.7 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Mounting Angle | Vertical |
| Number of Levels | 1 |
| Color | Black |
| Mounting Ears | Without |
| Current Rating (A) | 20 |
| Mounting Options | None |
| UL Flammability Rating | UL 94V-0 |
| Screw Material | Steel |
| Barrier Strip Style | Dual Barrier |
| Voltage (V) | 300 |
| Terminal Plating Material | Tin |
| Wire Size | 22 – 12 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1546734-5
If you experienced any issues with the symbol or footprint, please report it.
