1546833-4
Conn Barrier Strip 4 POS 9.52mm Solder ST Thru-Hole 15A/Contact Package
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1546833-4 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

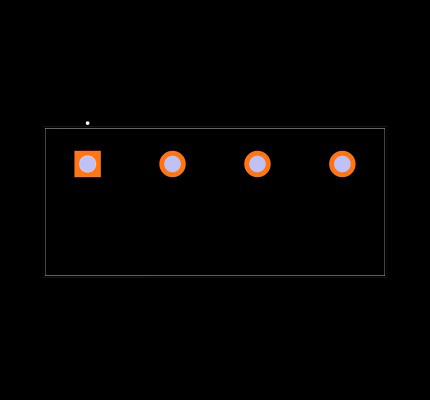

Footprint
No web preview
This Footprint is Available for

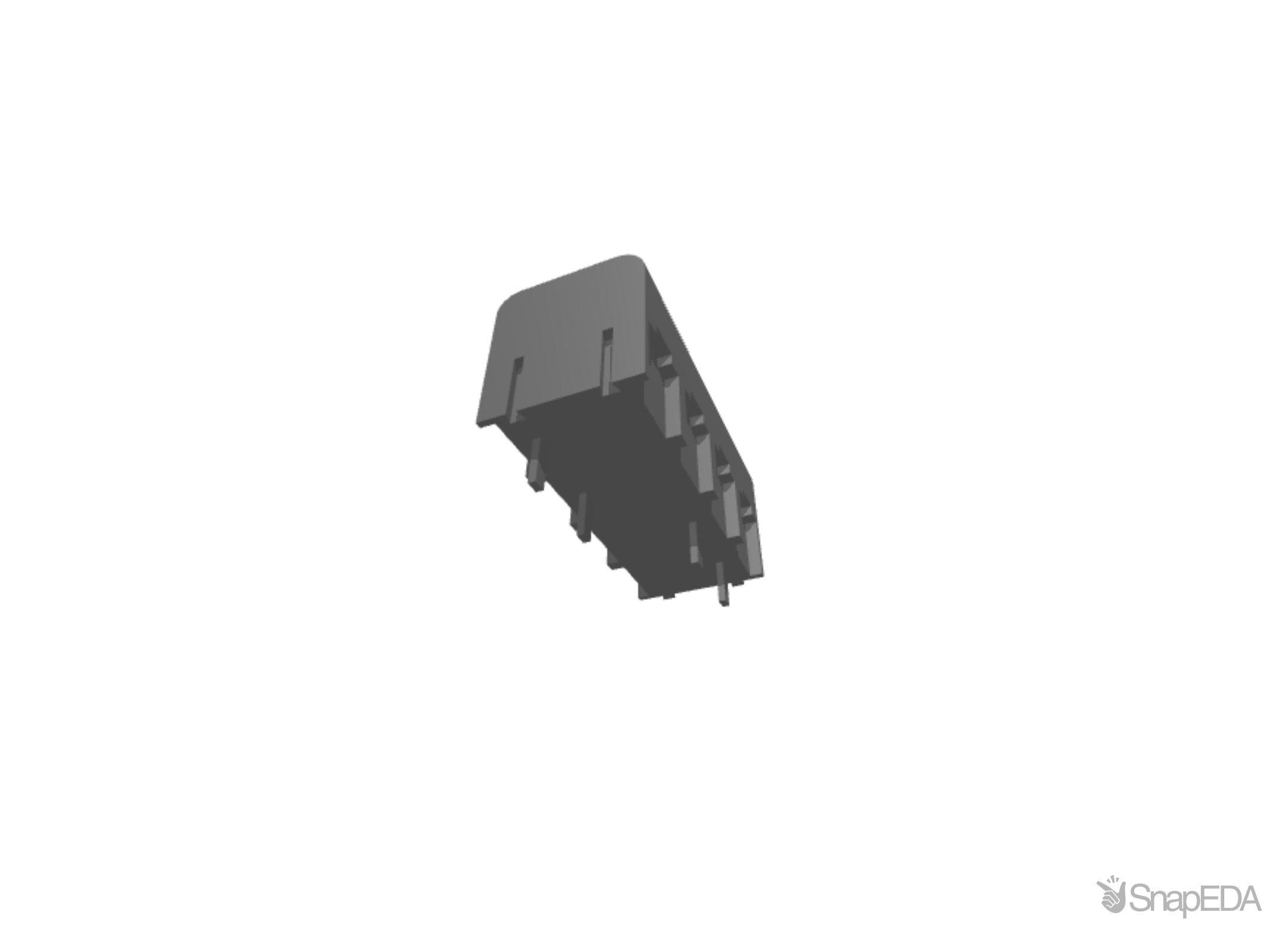

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1546833-4
| Part Name | 1546833-4 |
| Manufacturer | TE Connectivity |
| Bottom Termination Style | Printed Circuit Pin |
| Centerline (Pitch) | 9.53 |
| Top Hardware | Wire Clamp Combo Head |
| Housing Material | Nylon |
| Screw Plating Material | Nickel |
| Barrier Strip Style | Tri-Barrier |
| Screw Size | M3.5 |
| Screw Head Type | Wire Clamp Combo Head |
| Connector & Contact Terminates To | Printed Circuit Board |
| Current Rating (Max) (A) | 15 |
| Block Style | Open, Flat Bottom |
| TE Internal Number | 1546833-4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Product Type | Barrier Strip |
| Terminal Material | Copper Alloy |
| Packaging Method | Package |
| Packaging Quantity | 200 |
| Length | 38.1 |
| Mounting Angle | Vertical |
| Number of Levels | 1 |
| Color | Black |
| Mounting Ears | Without |
| Current Rating (A) | 15 |
| Mounting Options | None |
| UL Flammability Rating | UL 94V-0 |
| Screw Material | Steel |
| Mounting Insert | Without |
| Voltage (V) | 300 |
| Terminal Plating Material | Tin |
| Wire Size | 22 – 14 |
