1551573-5
Shield Finger, Loose Piece
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1551573-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

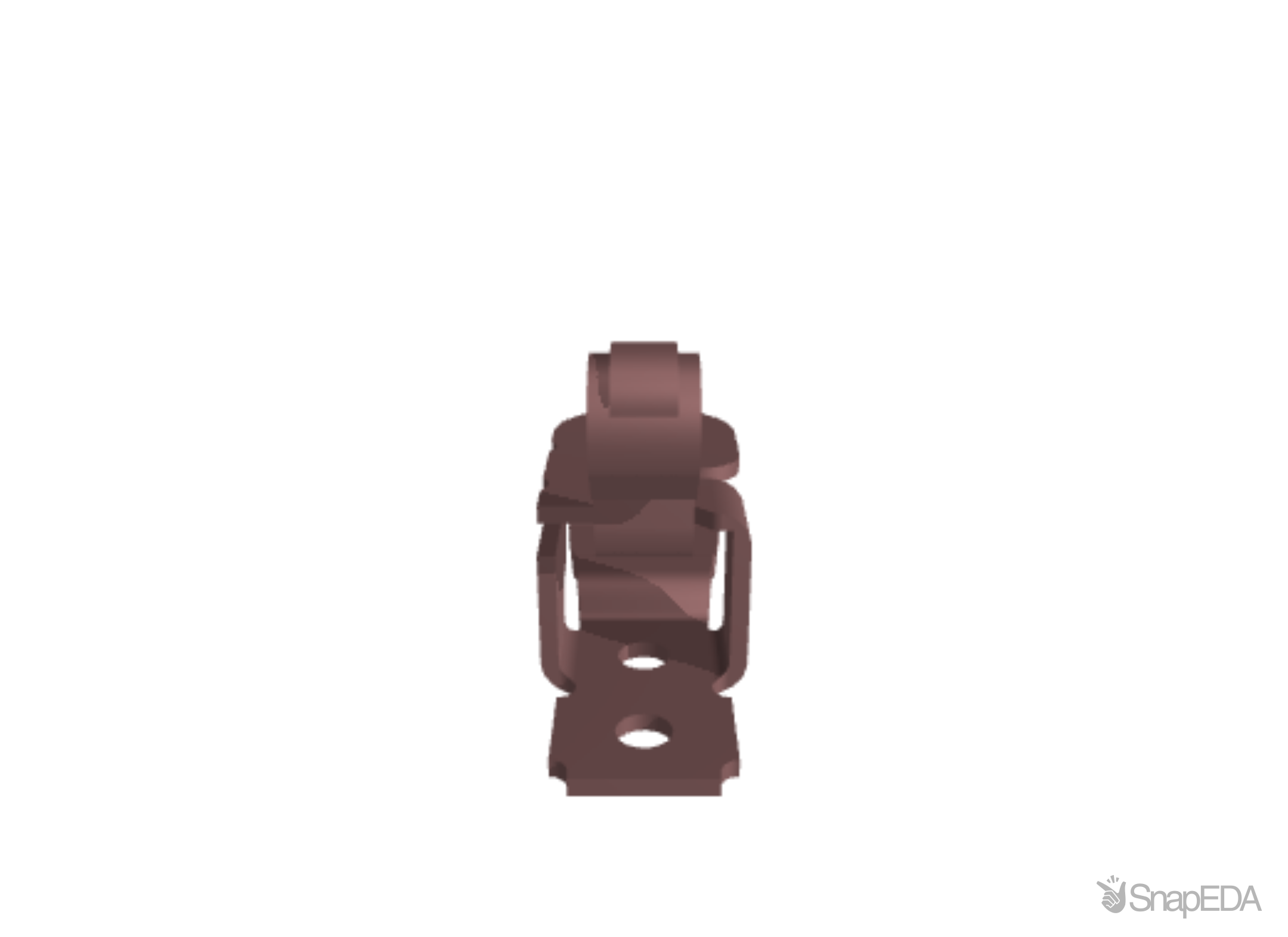

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1551573-5
| Part Name | 1551573-5 |
| Manufacturer | TE Connectivity |
| Contact Plating Thickness | 19.685 |
| Current Rating (A) | .5 |
| Operating Temperature Range | -40 – 185 |
| Circuit Application | Signal |
| Packaging Method | Tape & Reel |
| Part Category | PCB Spring Contacts |
| TE Internal Number | 1551573-5 |
| Packaging Quantity | 5400 |
| Contact Width | 1.15 |
| Contact Current Rating (Max) (A) | .5 |
| Point of Contact Area Plating Material | Gold |
| Uncompressed Height | .085 |
| Preloaded | Yes |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
