1551629-3
MICRO USB, TYPE A/B, SPLASHPROOF LOW MOQ
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1551629-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

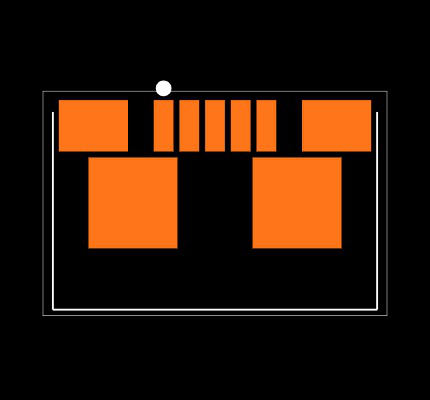

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1551629-3
| Part Name | 1551629-3 |
| Manufacturer | TE Connectivity |
| Pick & Place Capable | Yes |
| Shell Plating Material | Tin over Nickel |
| Centerline (Pitch) | .65 |
| USB Version | 2.0 |
| Circuit Application | Power & Signal |
| USB Type | A/B |
| Soldering Temperature (Max) | 500 |
| Housing Material | Thermoplastic |
| Contact Termination Type | Surface Mount |
| Integral Locking Latch | Without |
| PCB Connector Seating | Offset |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | SMT Hold-Down |
| Locking Feature | Without |
| PCB Thickness (Recommended) | .8 – 1. |
| Mounting Location | Top |
| Part Category | USB Connectors |
| TE Internal Number | 1551629-3 |
| Number of Positions | 5 |
| Connector System | Cable-to-Board |
| Degree of Protection | Splashproof |
| Mating Cycles (Max) | 10000 |
| Housing Color | Black |
| Offset | .8 |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Moisture Sensitivity Level | 1 |
| Industry Standard | USB 2.0 |
| Operating Temperature Range | -30 – 85 |
| Shell Plating Finish | Matte |
| Packaging Method | Package |
| Pick and Place | Without Pick and Place Cover |
| Locating Posts | Without |
| Termination Method | Surface Mount |
| Packaging Quantity | 1000 |
| Tail Length | .85 |
| Number of Ports | 1 |
| Halogen Free | No |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Reflow Solder |
| LED | Without |
| Orientation | Right Angle |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | 1.8 |
| Contact Mating Area Plating Thickness | 29.52 |
| Size | Micro |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1551629-3
If you experienced any issues with the symbol or footprint, please report it.
