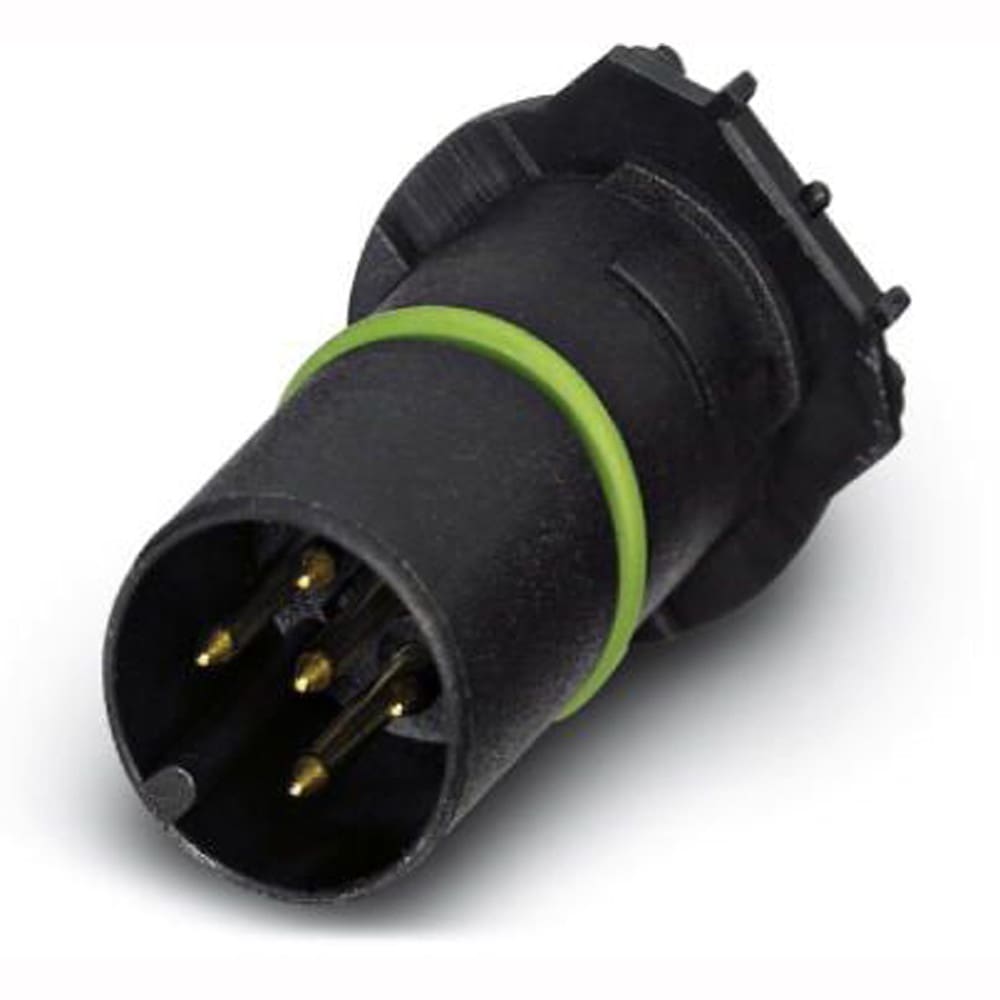

Phoenix Contact 1552227 SACC-CI-M12MS-5CON-L180 THR
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1552227 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

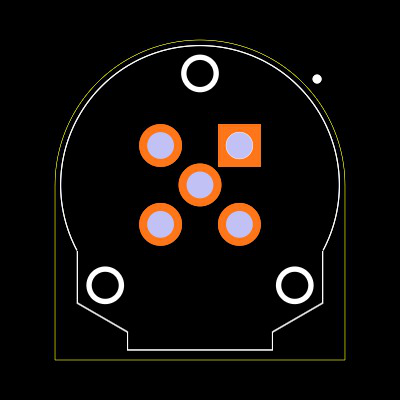

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1552227
| Part Name | 1552227 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 4 |
| Shield Connection Present | False |
| Max. Operating Temperature | 85 |
| Pe Connection Present | False |
| Type Of Plug-in Contact, Outside | Male (plug) |
| Min. Operating Temperature | -25 |
| Coding (head 1) | A-coded |
| Product Description | Contact carrier |
| Number Of The Executions Of The Housing Parts | 0 |
| Degree Of Soiling | 3 |
| Overvoltage Category (V) | III |
| Mounting Design | plug insert |
| Insertion Cycles, Min. | 100 |
| Manufacturer Product Designation | Contact carrier |
| Number Of Control Contacts | 5 |
| Material Of The Contact Coat | Gold |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1552227 |
| Pole Number | 5 |
| Net Weight | 0.004 |
| Construction Form Of The Plug Connector | M12 |
| GTIN | 4046356162081 |
