1558667-9

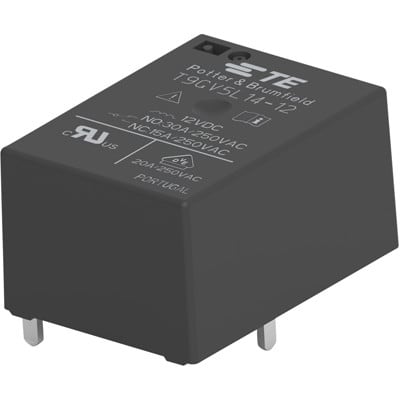

Power Relay 110VDC Control 13444Ohm SPST-NC 20A/250VAC Through Hole T9G Series | TE Connectivity 1558667-9
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1558667-9 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1558667-9
| Part Name | 1558667-9 |
| Manufacturer | TE Connectivity / AMP |
| Dimensions (L x W x H) (Approximate) | 29 x 21.5 x 15.7 |
| Insulation Initial Dielectric Between Contacts & Coil | 2500 |
| Product Weight | .635 |
| Coil Special Features | UL Coil Insulation Class F |
| Height Class (Mechanical) | 15 – 16 |
| Product Width | 21.5 |
| Coil Power Rating DC | 900 |
| Contact Switching Voltage (Max) (V) | 480 |
| Coil Resistance | 13444 |
| Contact Current Class (A) | 10 – 20 |
| Contact Arrangement | 1 Form B (NC) |
| Contact Number of Poles | 1 |
| Environmental Ambient Temperature (Max) | 105 |
| TE Internal Number | 1558667-9 |
| Product Height | 15.7 |
| Width Class (Mechanical) | 20 – 25 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 29 |
| Operating Temperature Range | -40 – 105 |
| Coil Voltage Rating (V) | 110 |
| Packaging Method | Carton & Tube |
| Category | Relays |
| Contact Switching Load (Min) | 1A @ 12V |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Length Class (Mechanical) | 25 – 30 |
| Coil Power Rating Class | 800 – 1000 |
| Contact Current Rating (Max) (A) | 20 |
| Relay Termination Type | Printed Circuit Terminals |
| Contact Voltage Rating (V) | 250 |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 4000 |
| Contact Material | AgSnO |
