1565986-1
5 Position Receptacle, Female Blade Sockets Connector Solder Eyelet(s) 0.098" (2.50mm) Through Hole
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1565986-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

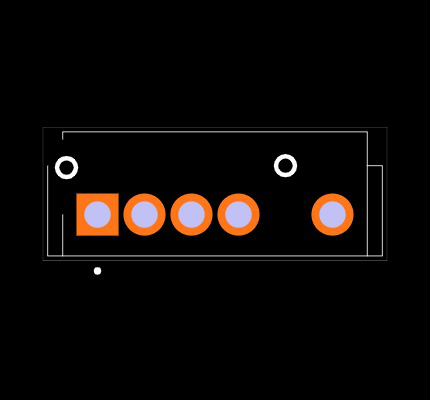

Footprint
No web preview
This Footprint is Available for

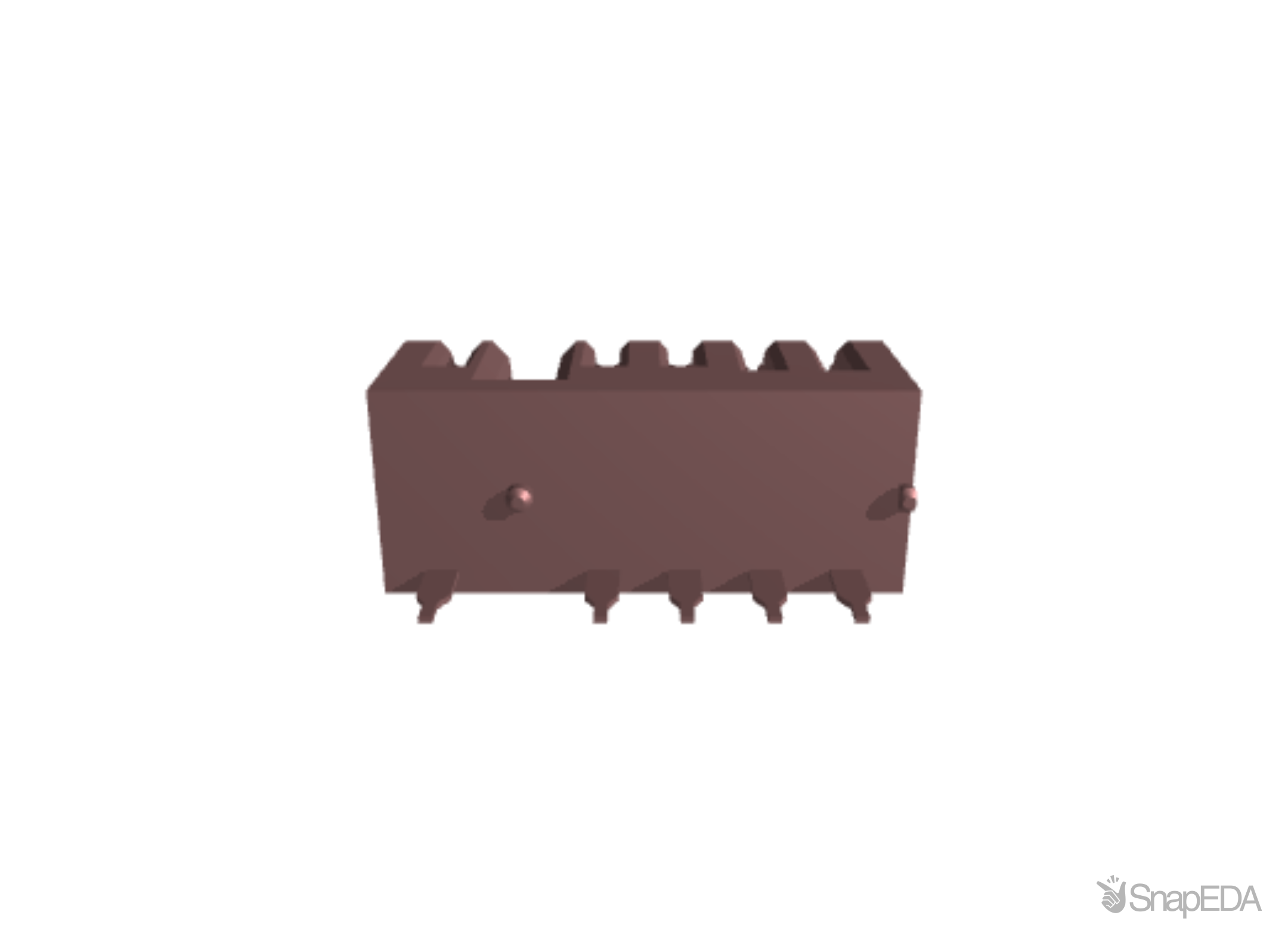

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1565986-1
| Part Name | 1565986-1 |
| Manufacturer | TE Connectivity |
| Number of Positions | 5 |
| PCB Mount Retention | With |
| Centerline (Pitch) | 2.5 |
| Operating Temperature Range | -20 – 80 |
| Circuit Application | Power & Signal |
| Packaging Method | Tray |
| TE Internal Number | 1565986-1 |
| Packaging Quantity | 72 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) (A) | 7 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Locating Post |
| Operating Voltage (V) | 30 |
| Connector Style | Receptacle |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1565986-1
