1571294-2
Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 1.57N SMD T/R
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1571294-2 by TE Connectivity / Alcoswitch and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

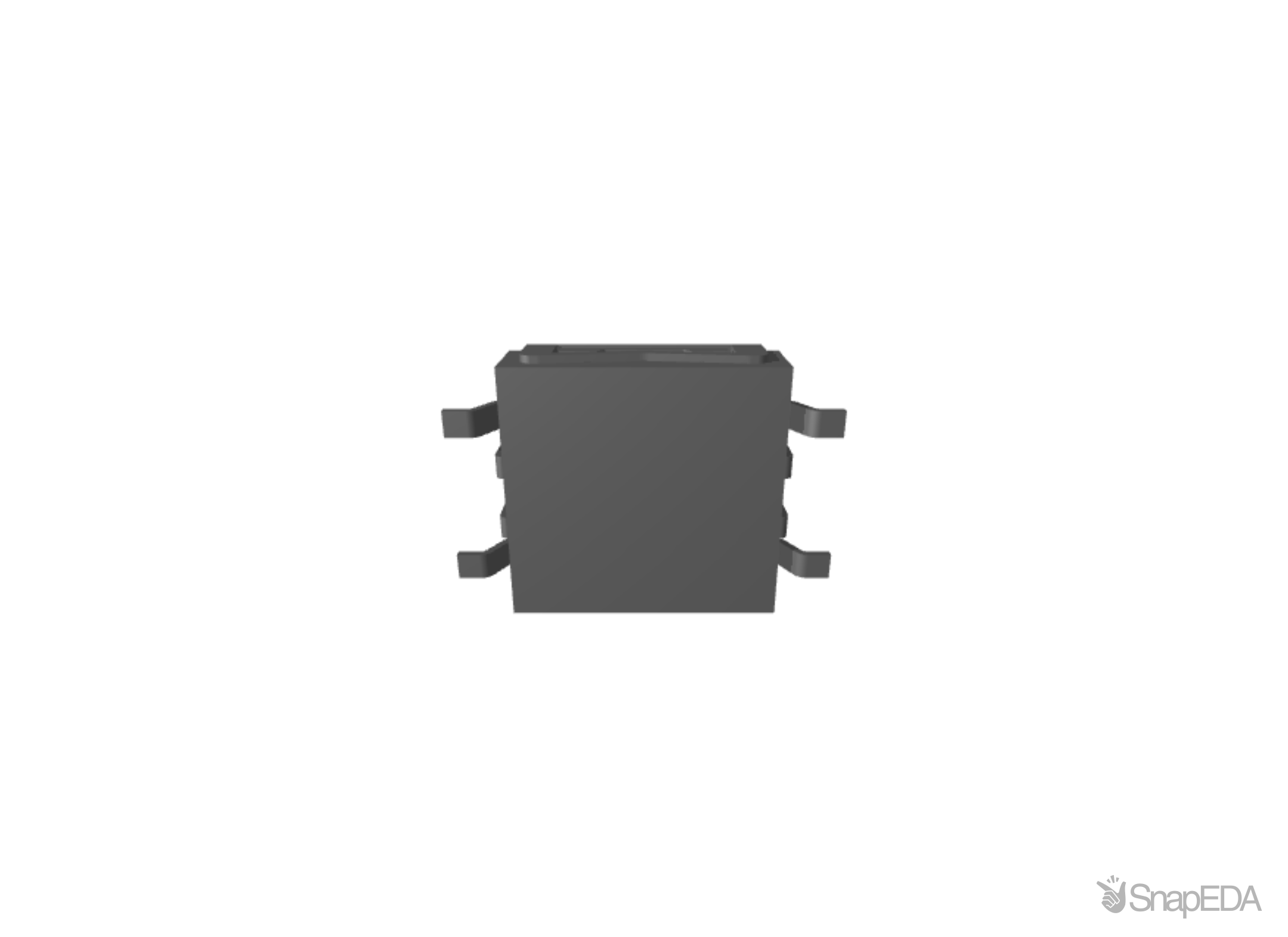

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1571294-2
| Part Name | 1571294-2 |
| Manufacturer | TE Connectivity / Alcoswitch |
| Ganged | With |
| Operating Function | Yes |
| Low Profile | With |
| Temperature Rating | Standard |
| Button Width | .122 |
| ESD Grounding Terminal | Without |
| Actuator Color | Black |
| Actuator Profile | Extended |
| Actuator Style | Round |
| Actuator Length | .074 |
| Illuminated | With |
| Number of Actuators | 1 |
| Contact Current Rating (A) | 50 |
| TE Internal Number | 1571294-2 |
| Snap Action | Without |
| Case Material | Thermoplastic (LCP) |
| Dust Proof | Yes |
| Leg Style | Gull Wing |
| Contact Base Material | Stainless Steel |
| Support Bracket | Without |
| Switch Height | 4.3 |
| Case Color | Black |
| Packaging Method | Tape & Reel |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Process Sealed | Yes |
| RoHS | True |
| Mounting Angle | With |
| Product Type | Switch |
| Actuator Force | 160 |
| Mounting Type | Surface Mount |
| Cover Material | Nickel Silver Alloy |
| Tactile Feel | With |
| Termination Type | Printed Circuit Board |
| Bushing Style | Unthreaded |
| Tactile | Yes |
| Actuator Material | Thermoplastic |
| Switch Contact Plating Material | Silver |
