1571563-7
Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 1VA 0.98N SMD Loose
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1571563-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

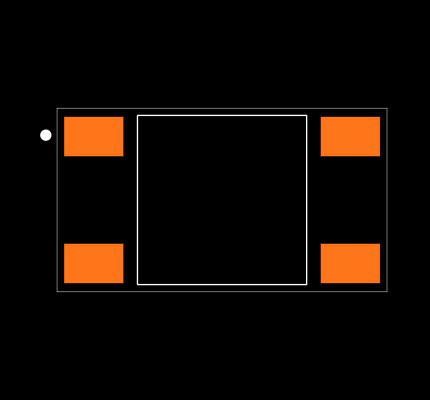

Footprint
No web preview
This Footprint is Available for

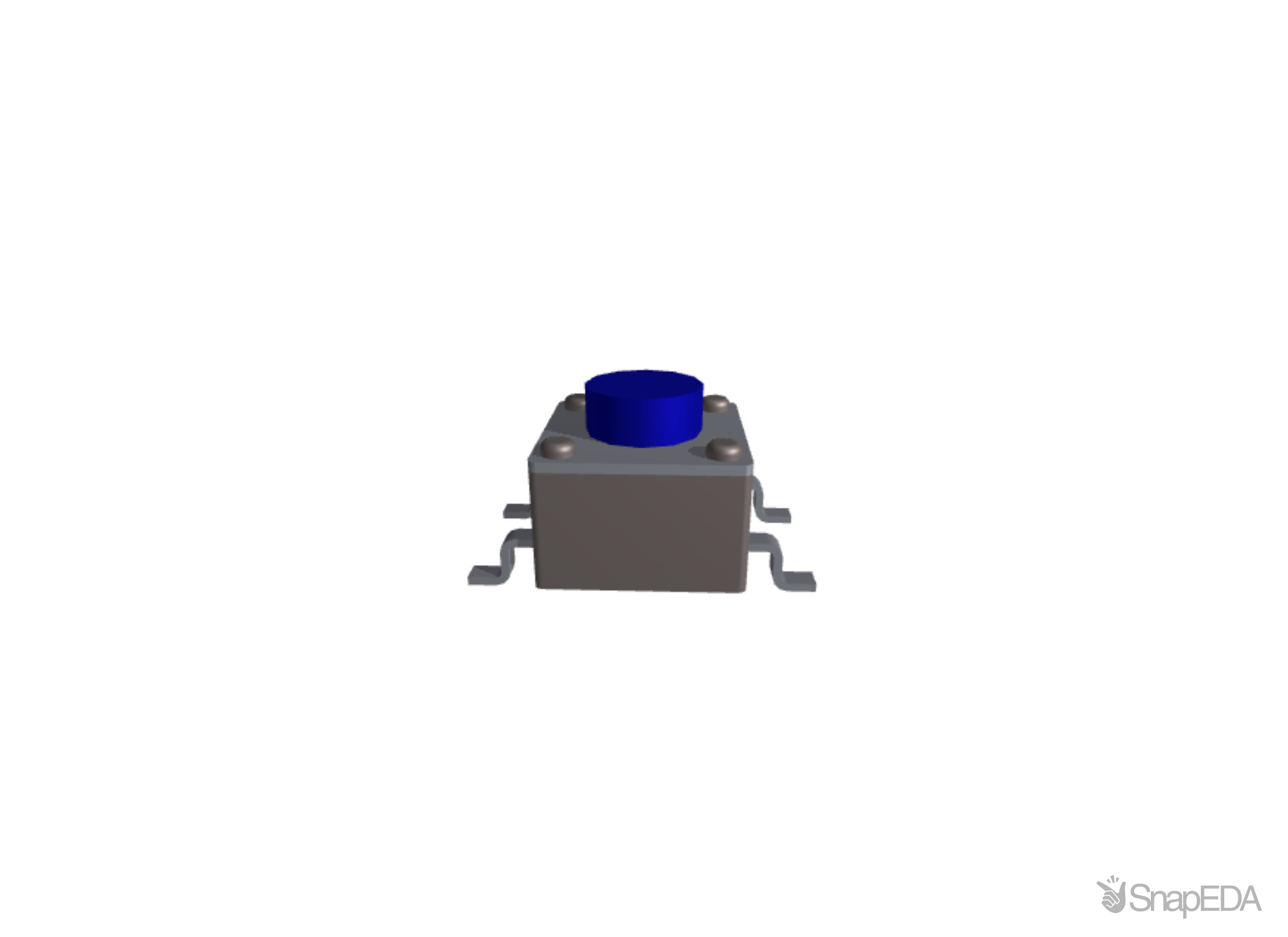

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1571563-7
| Part Name | 1571563-7 |
| Manufacturer | TE Connectivity |
| Ganged | With |
| Operating Function | Yes |
| Low Profile | With |
| Temperature Rating | Standard |
| Button Width | .138 |
| Actuator Color | Blue |
| Actuator Profile | Extended |
| Actuator Style | Round |
| Actuator Length | 1.4 |
| Illuminated | With |
| Number of Actuators | 1 |
| Contact Current Rating (A) | 50 |
| TE Internal Number | 1571563-7 |
| Snap Action | Without |
| Case Material | Polyamide |
| Dust Proof | No |
| Leg Style | Gull Wing |
| Contact Base Material | Copper Alloy |
| Support Bracket | Without |
| Switch Height | .196 |
| Case Color | Brown |
| Packaging Method | Loose Piece |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Process Sealed | No |
| Switch Contact Plating Material | Silver |
| RoHS | True |
| Mounting Angle | With |
| Product Type | Switch |
| Mounting Type | Surface Mount |
| Actuator Force | 100 |
| Cover Material | Steel |
| Tactile Feel | With |
| Termination Type | Printed Circuit Board |
| Bushing Style | Unthreaded |
| Tactile | Yes |
| Actuator Material | Nylon |
| ESD Grounding Terminal | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1571563-7 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
3,000 x $0.24
|
Visit Site | |
| Mouser |
|
|
Visit Site |
No issues have been reported for the 1571563-7
If you experienced any issues with the symbol or footprint, please report it.
