1586170-1
15P UMNL PIN HDR 94VO NDH
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1586170-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

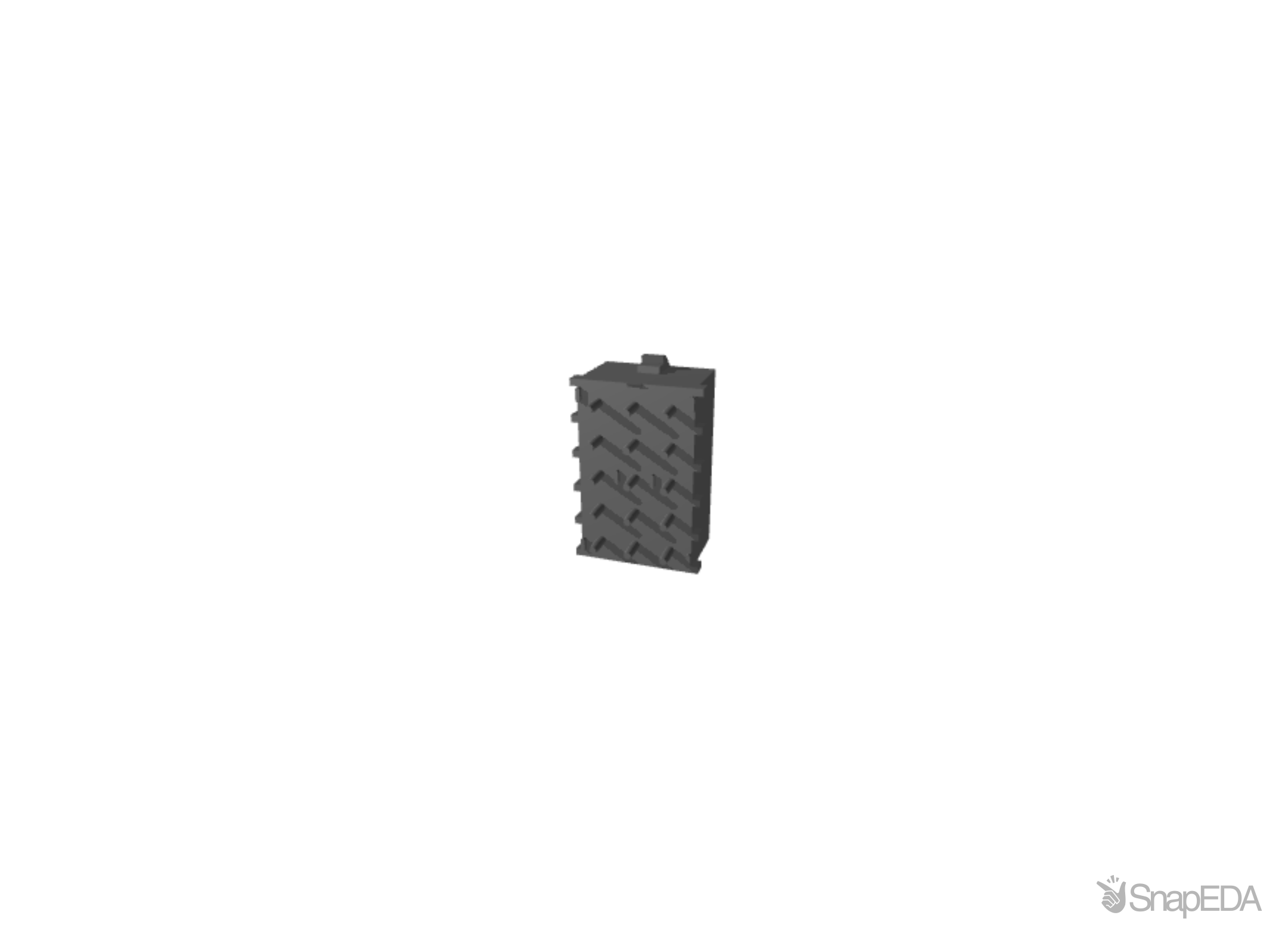

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1586170-1
| Part Name | 1586170-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .25 |
| Circuit Application | Power |
| Mating Retention Type | Latch |
| Housing Material | Nylon |
| Width | 20.32 |
| Number of Power Positions | 15 |
| Operating Voltage (V) | 600 |
| For Use With | Plug Housing |
| Number of Positions | 15 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.57 |
| Termination Post & Tail Length | 4.57 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 1586170-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Row-to-Row Spacing | 6.35 |
| Number of Rows | 3 |
| Housing Color | White |
| Header Type | Shrouded |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Mating Area Plating Thickness | 3.81 – 5.08 |
| Operating Temperature Range | -40 – 105 |
| Packaging Method | Bag |
| Housing Type | Plug |
| Packaging Quantity | 50 |
| Contact Layout | Matrix |
| Contact Termination Area Plating Material | Pre-Tin |
| Length | 33.02 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Pre-Tin |
| RoHS | True |
| Mating Retention | With |
| Strain Relief | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | .549 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 12 |
| Contact Retention | Without |
| Product Type | Header |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1586170-1
