15EMC6

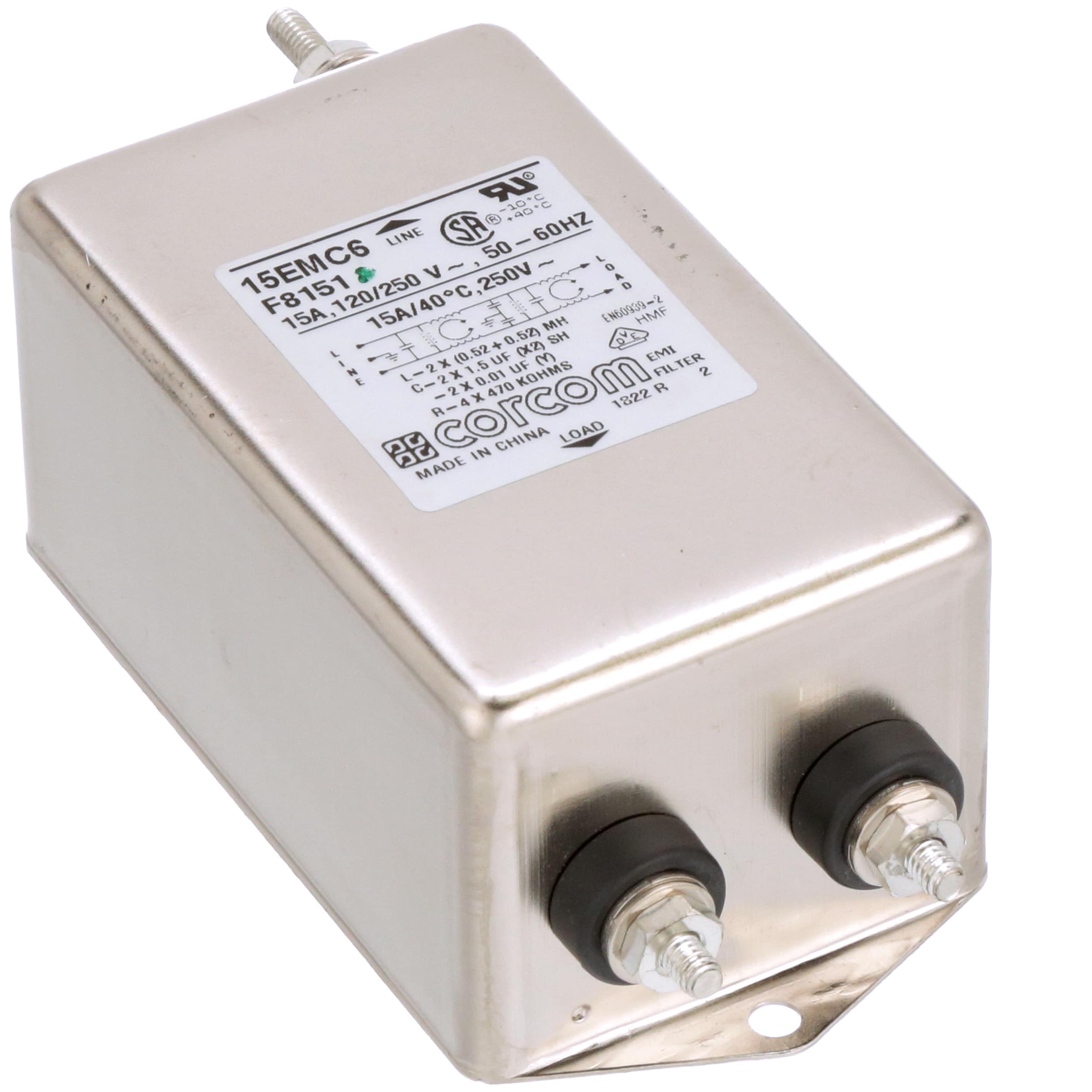

Filter; 2-Stage; RFI Line; 1 Ph; Op-V 250VAC; Curr 15A; Flange Mnt; Corcom/EMC Series
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 15EMC6 by TE Connectivity / Corcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 15EMC6
| Part Name | 15EMC6 |
| Manufacturer | TE Connectivity / Corcom |
| Mount Style | Flanged |
| Current Rating (A) | 15 |
| Operating Temperature Range | -10 – 40 |
| TE Internal Number | 2-6609037-3 |
| Output Type | 8-32 Stud |
| Leakage Current (Max) (250VAC, 50Hz) (A) | 1.27 |
| Leakage Current (Max) (120VAC, 60Hz) (A) | .73 |
| Ground Choke Option | No |
| Voltage (Max) (V) | 250 |
| Input Type | 8-32 Stud |
| Filtered | Yes |
| Filter Type | Power Line |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 129.3 x 45.2 x 57.2 (mm) |
| Mounting Type | Flange Mount |
| Series | Corcom EMC |
| Maximum Current Rating (A) | 15 (A) |
| Termination Style | Threaded Bolt |
| Length | 129.3 (mm) |
| Number Of Stages | Two Stage |
| Depth | 45.2 (mm) |
| Minimum Operating Temperature | -10 (°C) |
| Maximum Voltage Rating (V) | 250 V ac |
| Operating Frequency | 50/60 (Hz) |
| Number Of Phases | 1 |
| Height | 57.2 (mm) |
| Maximum Operating Temperature | +40 (°C) |
