160173-7

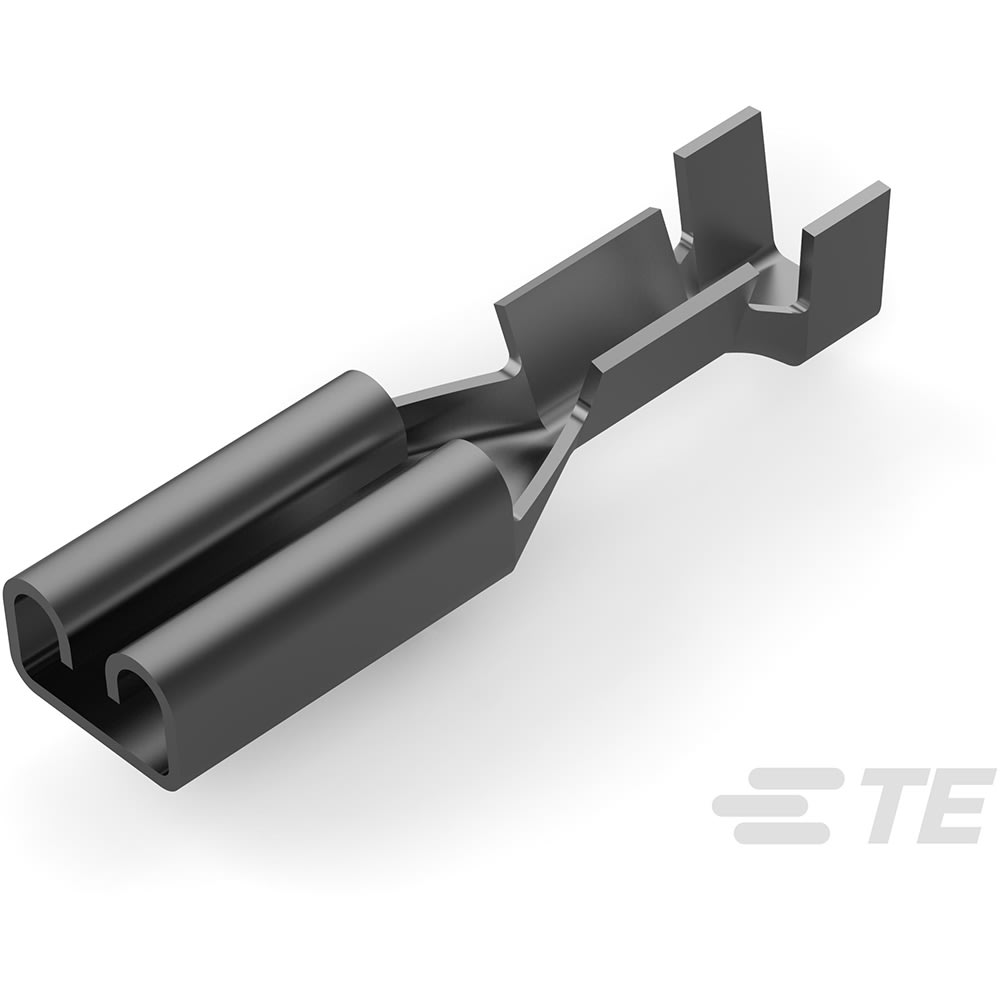

SOLIS SP SPD22-16COM22-18MIL917 | TE Connectivity 160173-7
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 160173-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 160173-7
| Part Name | 160173-7 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Fully Insulated | No |
| Wire/Cable Type | Regular Wire |
| Insulated | No |
| Wire Stop | No |
| Plating Material | Tin |
| Receptacle Terminal Stock Thickness | .01 |
| Connection Capacity | Single |
| TE Internal Number | 160173-7 |
| Overall Length | .551 |
| Contact Base Material | Phosphor Bronze |
| Terminal Type | Receptacle |
| Operating Temperature Range | -40 – 230 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Strip/Reel |
| Packaging Quantity | 10000 |
| Terminal Orientation | Straight |
| Accepts Wire Insulation Diameter Range | 1.3 – 2 |
| Barrel Type | Open |
| Insertion Force | Normal |
| Mating Tab Width | .11 |
| Sealable | No |
| Wire Insulation Support | With |
| Mating Retention Type | Locking Lance |
| Crimp Type | F-Crimp |
| Mating Tab Thickness | .032 |
| Terminates To | Wire & Cable |
| Wire Size | .32 – .51 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 160173-7 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
23,407
|
|
Visit Site | |
| Mouser |
|
30,000 x $0.12
|
Visit Site | |
| Onlinecomponents |
2,000
|
|
Visit Site | |
| Verical |
10,000
|
10,000 x $0.15
|
Visit Site |
No issues have been reported for the 160173-7
If you experienced any issues with this part, please report it.
