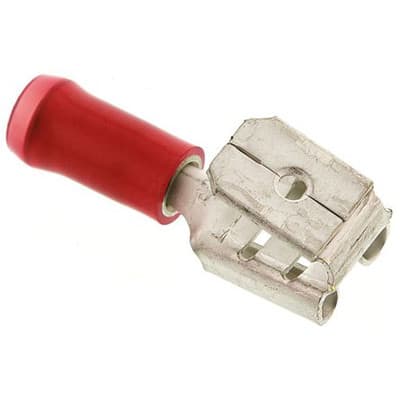

160834-2
PIDG & PG FASTON LP, PIDG PIGGY-B FASTON | TE Connectivity 160834-2
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 160834-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

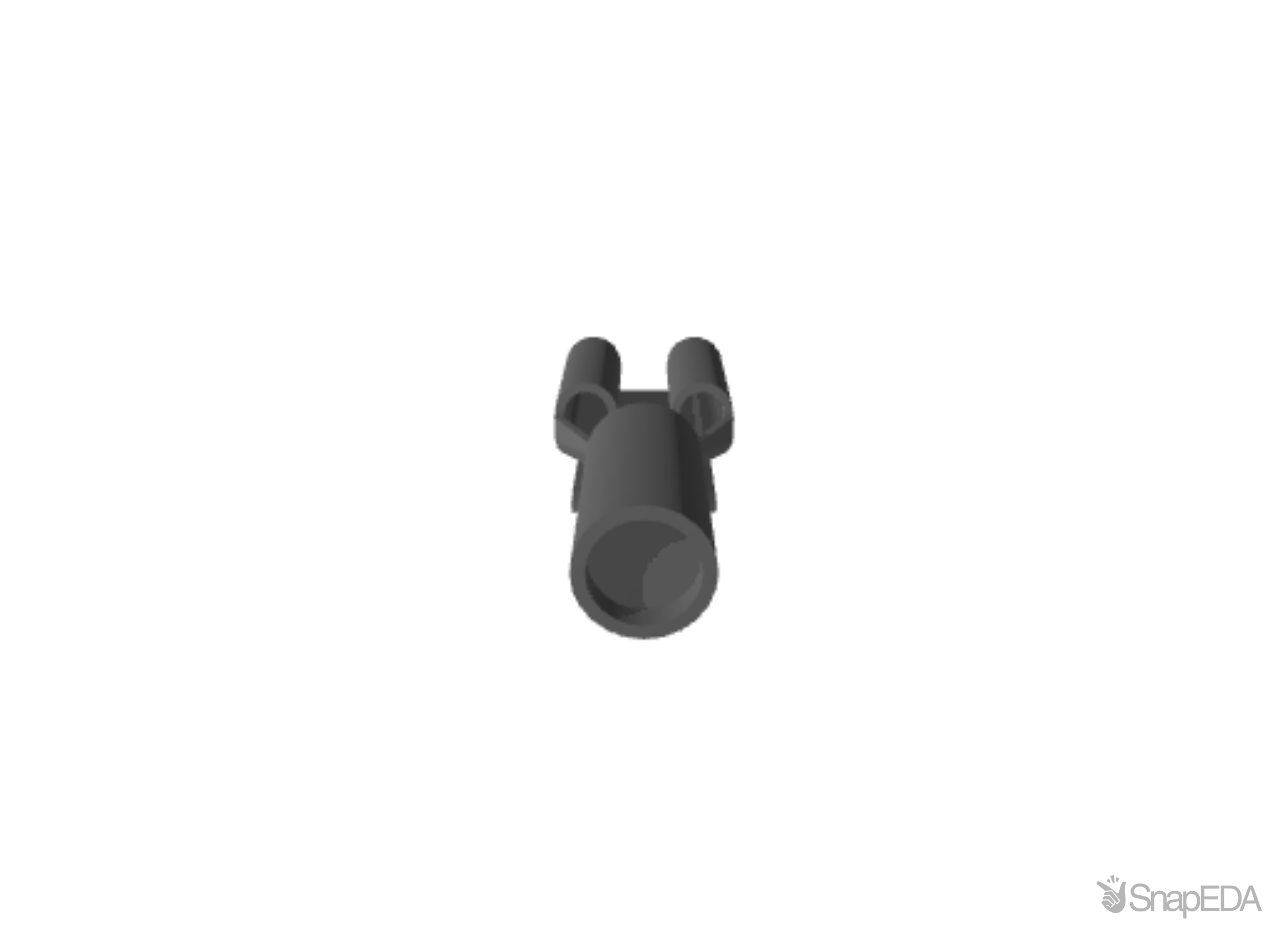

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 160834-2
| Part Name | 160834-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Barrel Color | Red |
| Fully Insulated | No |
| Terminal Type | Tab & Receptacle |
| Insulated | Yes |
| Wire Stop | No |
| Plating Material | Tin |
| Operating Temperature Range | 105 |
| TE Internal Number | 160834-2 |
| Voltage (Max) (V) | 300 |
| Overall Length | 23.54 |
| Sealable | No |
| Wire Insulation Support | With |
| Connection Capacity | Single |
| Terminal & Splice Type | Tab & Receptacle |
| Packaging Method | Loose Piece |
| Packaging Quantity | 500 |
| Terminal Orientation | Piggyback |
| Accepts Wire Insulation Diameter Range | 3.56 |
| Barrel Type | Closed |
| Insertion Force | Normal |
| Mating Tab Width | .25 |
| Contact Base Material | Brass |
| Mating Retention Type | Dimple |
| Crimp Type | Compression |
| Mating Tab Thickness | .032 |
| Terminates To | Wire & Cable |
| Wire Size | .3 – 1.5 |
| Insulation Material | Nylon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tab Thickness | 0.81 (mm) |
| Tab Width | 6.35 (mm) |
| Minimum Wire Size (Mm²) | 0.3 (mm²) |
| Minimum Wire Size (Awg) | 22 (AWG) |
| Colour | Red |
| Overall Length | 23.54 (mm) |
| Termination Method | Crimp |
| Maximum Wire Size (Mm²) | 1.5 (mm²) |
| Gender | Female |
| Maximum Wire Size (Awg) | 16 (AWG) |
| Tab Size | 6.35 x 0.81 (mm) |
| Contact Plating | Tin |
| Series | PIDG FASTON .250 |
| Insulation | Insulated |
| Type | Piggyback Terminal |
| Insulation Material | Nylon |
| Contact Material | Brass |
