1624337-1
LT73 3000 2A 3K0 5% 4KRL
Availability: Out of Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1624337-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

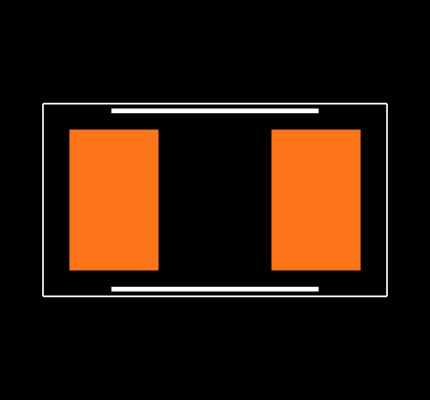

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 1624337-1
Part Name | 1624337-1 |
Manufacturer | TE Connectivity |
Dimensions | 2 x 1.25 x .5 |
Size Code | 0805 |
Package | 0805 |
Packaging Method | Taped & Reeled |
Resistance | 3K |
TE Internal Number | 1624337-1 |
Power Rating | .1 |
Tolerance | 5% |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet |
Inventory for the 1624337-1 by TE Connectivity from major distributors.
Supplier | Quantity | Price | Purchase | |
---|---|---|---|---|
Mouser |
|
N/A | Visit Site |
No issues have been reported for the 1624337-1
If you experienced any issues with the symbol or footprint, please report it.
