164TL11

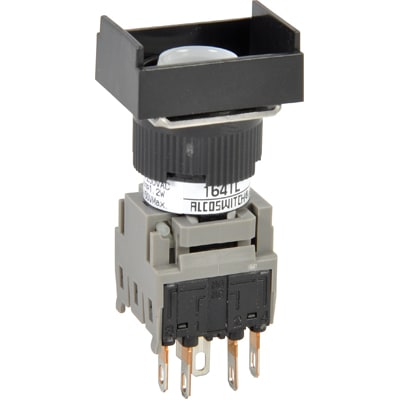

Switch, Pushbutton, Panel Mount, LED, 1500 VAC (Min.), IP65, QC Tabs, Silver | TE Connectivity 164TL11
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 164TL11 by TE Connectivity / Alcoswitch and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 164TL11
| Part Name | 164TL11 |
| Manufacturer | TE Connectivity / Alcoswitch |
| Ganged | No |
| Operating Function | Momentary |
| Low Profile | No |
| Voltage Rating (V) | 24 |
| Tactile | Yes |
| Category | Switches |
| Panel Cutout Size | 16 (Diameter) |
| Seal Type | IP65 |
| Process Sealed | No |
| Button Width | .59 |
| Type of Contact | 1 NO & 1 NC |
| For Use With | Lens Model 64T(*) (where * equals (2) Red, (3) Orange, (4) Yellow, (5) Green, (6) Blue, or (9) White. |
| Oil-Tight | No |
| Switch Contact Plating Material | Gold |
| Actuator Style | Rectangular |
| Mounting Angle | Vertical |
| Illuminated | Yes |
| Mounting Type | Panel |
| Number of Actuators | Single |
| Contact Current Rating (A) | 5 |
| TE Internal Number | 3-1437569-4 |
| Snap Action | With |
| Dust Proof | No |
| Product Type | Switch |
| Switch Type | Pushbutton |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 164TL11 by TE Connectivity / Alcoswitch from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Onlinecomponents |
97
|
|
Visit Site | |
|
★ Featured
|
|
300 x $41.78
|
Visit Site | |
| Verical |
484
|
|
Visit Site |
No issues have been reported for the 164TL11
If you experienced any issues with this part, please report it.
