165590-1
Contact,Pin,Shur-Plug,20-15AWG,Crimp,Brass,TinPlating,4 mm Pin Dia. | TE Connectivity 165590-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 165590-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

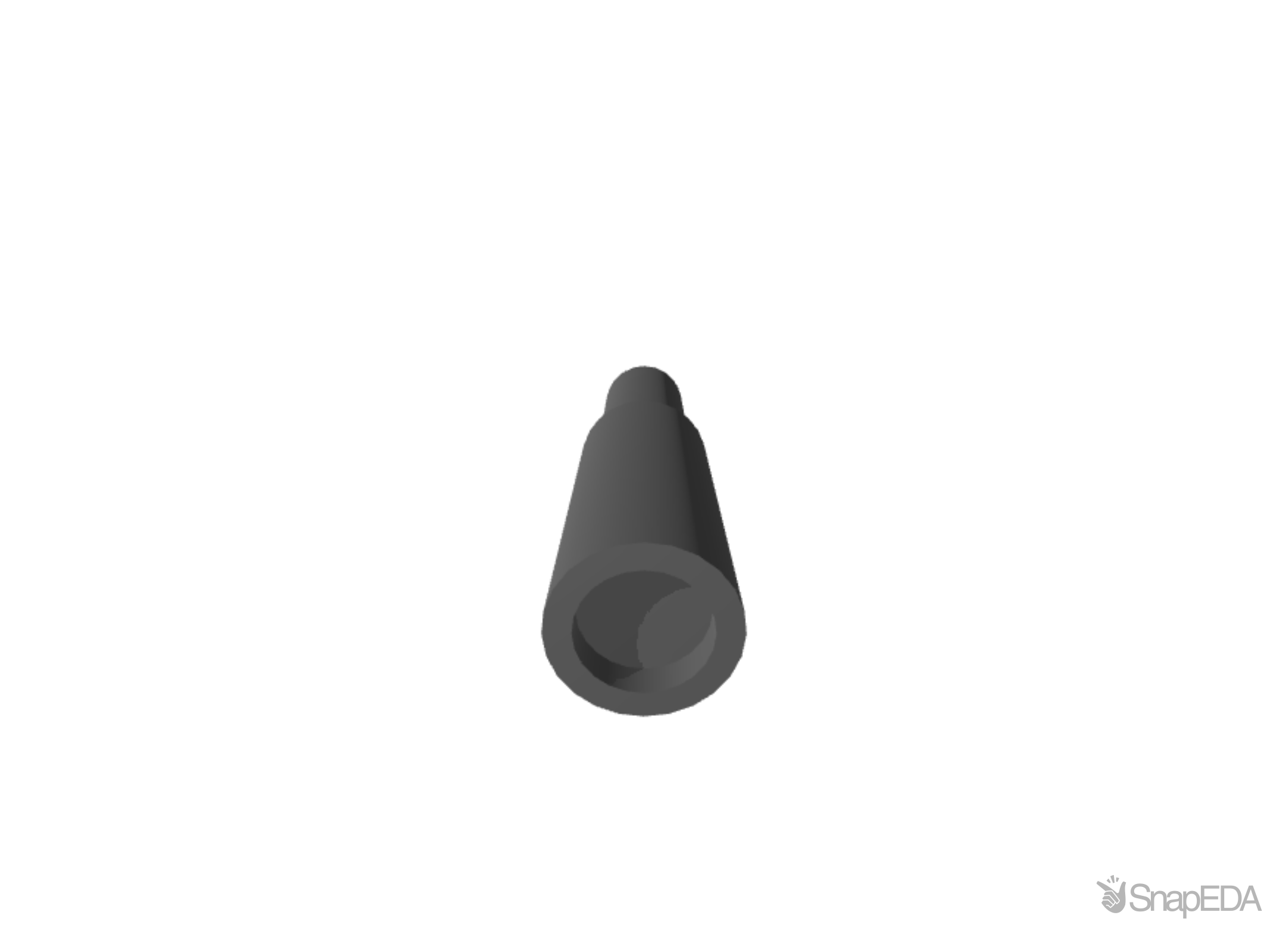

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 165590-1
| Part Name | 165590-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Insulated | Yes |
| Insulation Sleeve Material | Copper |
| Wire Insulation Diameter (Max) | 3.5 |
| Plating Material | Tin |
| Bullet Terminal | Without |
| Packaging Method | Box |
| TE Internal Number | 165590-1 |
| Support Style | Insulation Support |
| Terminal Orientation | Straight |
| Overall Length | 22.7 |
| Terminal Type | Shur-Plug |
| Pin Diameter | 3.96 |
| Wire Size | .5 – 1.5 |
| Barrel Color | Red |
| Double Wire | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 165590-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
640
|
|
Visit Site | |
|
★ Featured
|
17,353
|
|
Visit Site | |
| Onlinecomponents |
36
|
|
Visit Site | |
|
★ Featured
|
|
20,000 x $0.21
|
Visit Site | |
| Verical |
750
|
|
Visit Site |
No issues have been reported for the 165590-1
