1658525-4
6 Position Ribbon Cable, DIP Header Connector Blue IDC 26-28 AWG, Stranded or Solid Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1658525-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

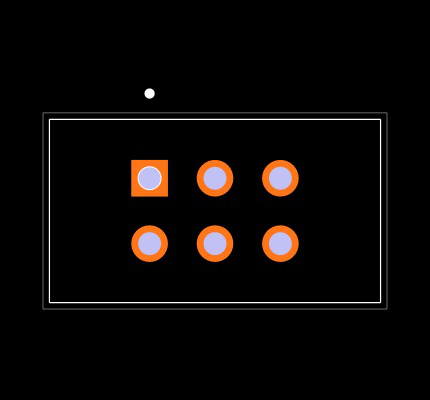

Footprint
No web preview
This Footprint is Available for

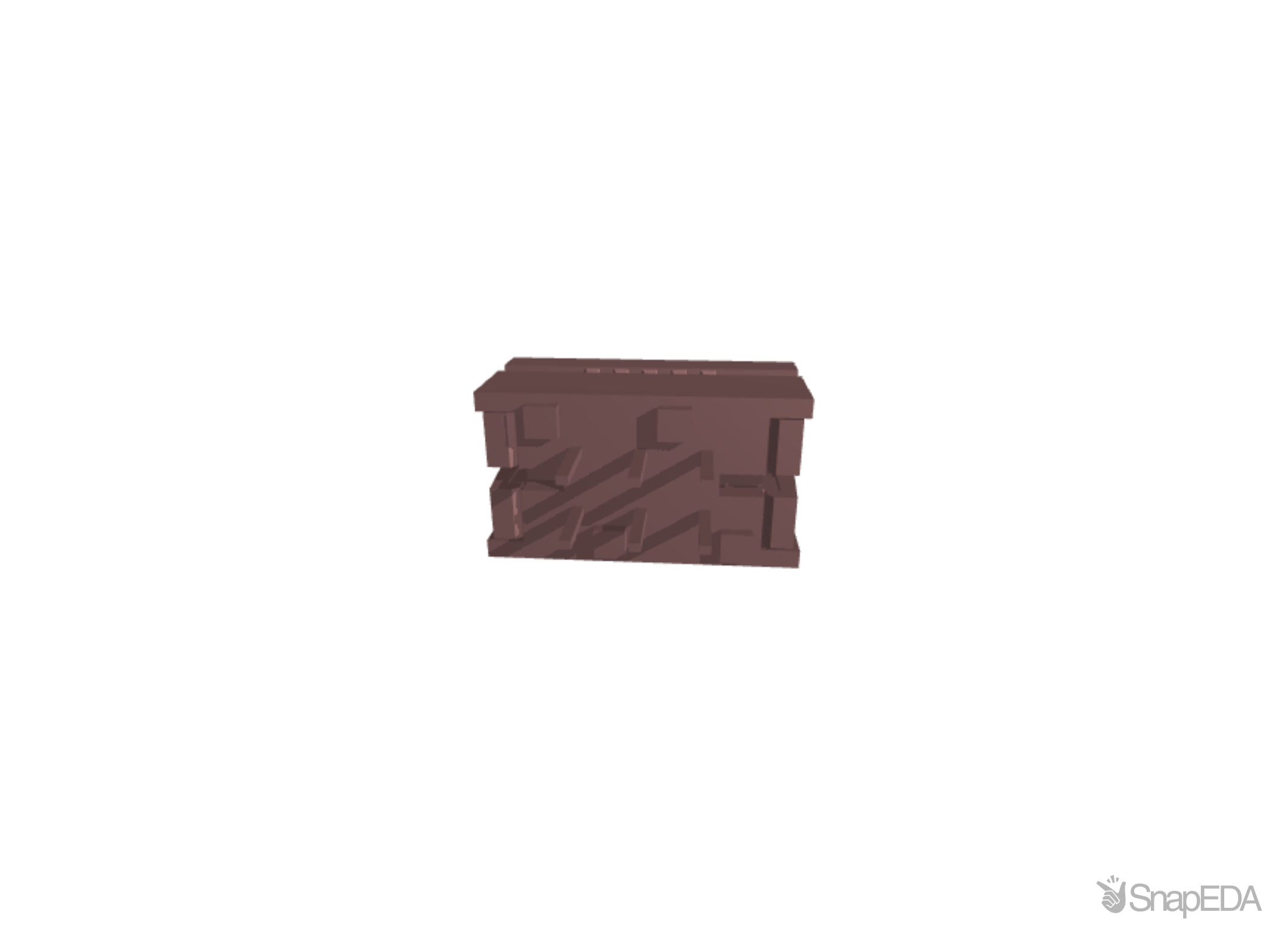

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1658525-4
| Part Name | 1658525-4 |
| Manufacturer | TE Connectivity |
| Wire-to-Board | |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Number of Positions | 6 |
| PCB Mount Retention | Without |
| TE Internal Number | 1658525-4 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Blue |
| Header Type | Shrouded |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Operating Temperature Range | -55 to 125 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1 |
| Mating Connector Lock | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1 (A) |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Cable Mount |
| Gender | Male |
| Body Orientation | Right Angle |
| Pitch | 2.54 (mm) |
| Housing Material | PET |
| Number Of Rows | 2 |
| Contact Plating | Tin over Nickel |
| Termination Method | IDT |
| Number Of Contacts | 6 |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Beryllium Copper |
Inventory for the 1658525-4 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
8,100 x $1.94
|
Visit Site | |
|
★ Featured
|
180
|
330 x $0.91
|
Visit Site |
No issues have been reported for the 1658525-4
